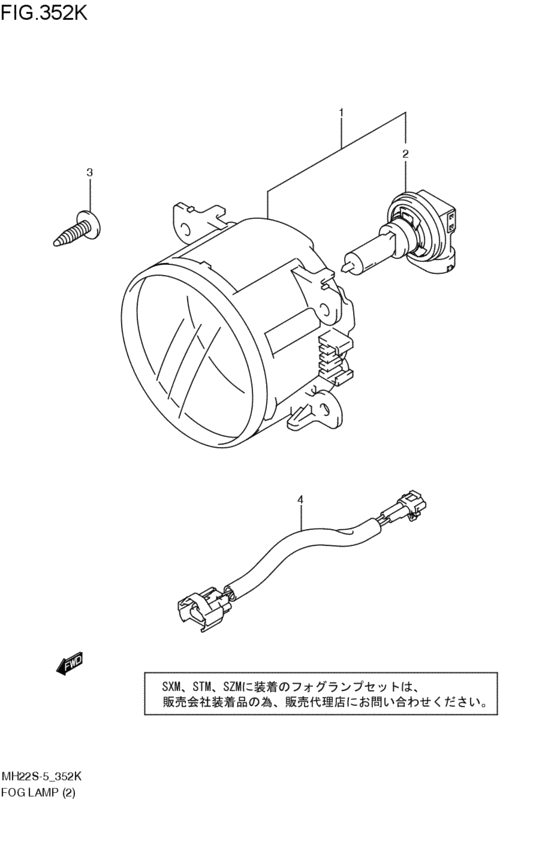

fog light (FBV,FCS,SX,SXV,ST,SZ,SXM,STM,SZM; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FCS
- abs
- ABS
- シートリフタ
- NLIFTER
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35500-63J11-000
ランプアッシ,フォグ
FBV,FCS,SX,SXV,ST,SZ; 2007-05-01~ |
35500-63J11-000 |
— | ||
| replacement | |||||
|
1
|
1
35500-63J13-000 LAMP ASSY,FOGFBV,FCS,SX,SXV,ST,SZ; 2007-05-01~ |
35500-63J13-000 |
US $124.02 |
||
|
2
|
2
09471-12211-000 BULB(12V35W,H8)FBV,FCS,SX,SXV,ST,SZ; 2007-05-01~ |
09471-12211-000 |
from US $20.05 |
||
|
3
|
3
03541-0516A-000 SCREWFBV,FCS,SX,SXV,ST,SZ; 2007-05-01~ |
03541-0516A-000 |
from US $0.74 |
||
|
4
|
4
36813-75H00-000 WIRE,FR FOG LAMPFBV,FCS,SX,SXV,ST,SZ,SXM,STM,SZM; 2007-05-01~ |
36813-75H00-000 |
US $18.95 |
||
