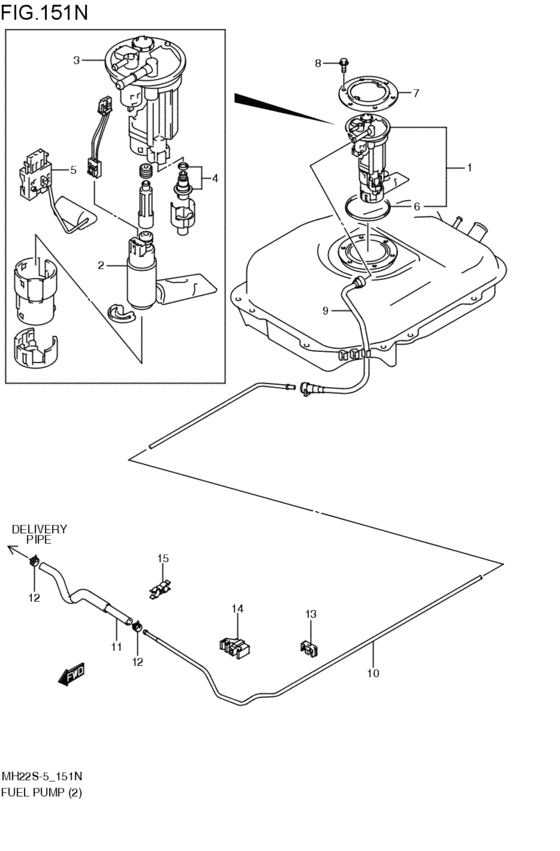

Fuel Pump (TURBO:(FCS,FRF,ST,STM); 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FCS
- abs
- ABS
- シートリフタ
- NLIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-58850-000
ポンプセット,フューエル
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15100-58850-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-58851-000
New Genuine Part
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15100-58851-000 |
— | ||
|
2
|
2
15110-58J50-000
ポンプアッシ,フューエル
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15110-58J50-000 |
— | ||
|
3
|
3
15310-58J51-000 FILTER ASSY,FUELTURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15310-58J51-000 |
US $263.12 |
||
|
4
|
4
15610-76G50-000 REGULATOR ASSY,FUELTURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15610-76G50-000 |
from US $51.37 |
||
|
5
|
5
34810-58J60-000
ゲージアッシ,フューエルレベル
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
34810-58J60-000 |
— | ||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMPTURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15111-75F01-000 |
from US $8.84 |
||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMPTURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15121-75F01-000 |
from US $6.17 |
||
|
8
|
8
09103-06168-000 BOLT(6X10)TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
09103-06168-000 |
from US $0.95 |
||
|
9
|
9
15812-58J00-000 PIPE,FUEL PUMP TO PIPEポンプ ツー パイプ; TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15812-58J00-000 |
US $46 |
||
|
10
|
10
15811-58JA0-000
パイプ,フューエル
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15811-58JA0-000 |
— | ||
| replacement | |||||
|
10
|
10
15811-58JA1-000
パイプ,フューエル
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15811-58JA1-000 |
— | ||
|
11
|
11
15815-58JA0-000
ホース,フューエル(パイプツーエンジン)
パイプ ツー エンジン; TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15815-58JA0-000 |
— | ||
|
12
|
12
09401-13419-000 CLIPTURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
09401-13419-000 |
from US $1.76 |
||
|
13
|
13
15893-83G01-000 CLAMP,FUEL PIPETURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15893-83G01-000 |
US $1.52 |
||
|
14
|
14
15893-58JA0-000
クランプ,フューエルパイプ
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15893-58JA0-000 |
— | ||
| replacement | |||||
|
14
|
14
15893-85K00-000
New Genuine Part
TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
15893-85K00-000 |
— | ||
|
15
|
15
09408-00220-000 СlampTURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
09408-00220-000 |
US $21.30 |
||
