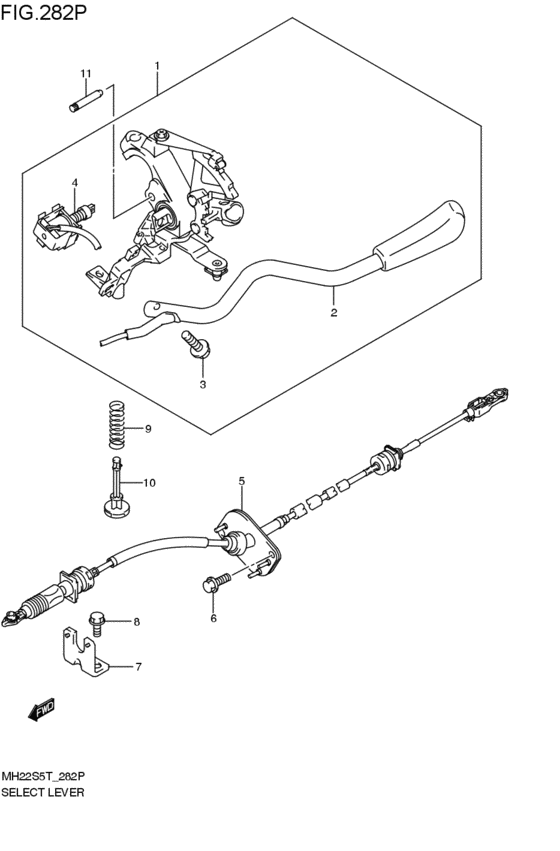

select lever (2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FK
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-73H51-000
セレクトアッシ,コラム
2007-05-01~ |
28100-73H51-000 |
— | ||
| replacement | |||||
|
1
|
1
28100-73H53-000
New Genuine Part
2007-05-01~ |
28100-73H53-000 |
— | ||
|
2
|
2
28110-73H51-000
レバー,コラムセレクト
2007-05-01~ |
28110-73H51-000 |
— | ||
| replacement | |||||
|
2
|
2
28110-73H52-000
New Genuine Part
2007-05-01~ |
28110-73H52-000 |
— | ||
|
3
|
3
28116-73H10-000
ボルト,コラムレバー
2007-05-01~ |
28116-73H10-000 |
— | ||
|
4
|
4
28610-73H50-000
ソレノイド,シフトロック
2007-05-01~ |
28610-73H50-000 |
— | ||
|
5
|
5
28210-58J13-000
ケーブルアッシ,コラム
2007-05-01~ |
28210-58J13-000 |
— | ||
|
6
|
6
02162-0620C-000 SCREW2007-05-01~ |
02162-0620C-000 |
from US $0.83 |
||
|
7
|
7
28221-58J10-000
ブラケット,セレクトケーブル
2007-05-01~ |
28221-58J10-000 |
— | ||
|
8
|
8
28223-61D00-000 BoltBolt, selector cable bracket 2007-05-01~ |
28223-61D00-000 |
US $3.97 |
||
|
9
|
9
20440-73H10-000 SPRING,LOCK RELEASE2007-05-01~ |
20440-73H10-000 |
US $1.69 |
||
|
10
|
10
20441-73H10-000 BUTTON,LOCK RELEASE2007-05-01~ |
20441-73H10-000 |
US $2.32 |
||
|
11
|
11
28117-73H10-000 PIN2007-05-01~ |
28117-73H10-000 |
US $3.24 |
||
