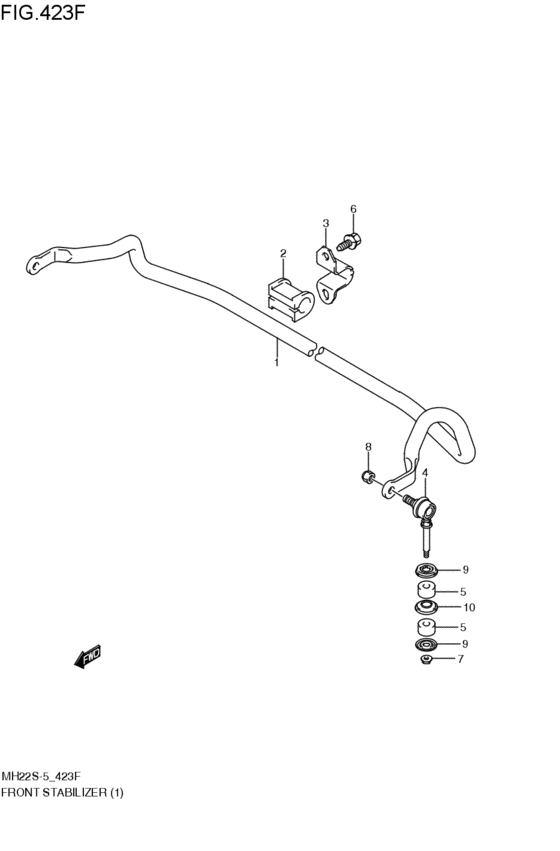

front stabilizer (FBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- ST
- abs
- ABS
- シートリフタ
- LIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-58J00-000
バー,フロントスタビライザ
(FBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ):2WD; 2007-05-01~ |
42311-58J00-000 |
— | ||
|
2
|
2
42431-58J00-000 MOUNT,STAB BARFBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
42431-58J00-000 |
from US $5.36 |
||
|
3
|
3
42441-58J00-000
ブラケット,スタビライザマウント
FBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
42441-58J00-000 |
— | ||
| replacement | |||||
|
3
|
3
42441-58J01-000
ブラケット,スタビライザマウント
FBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
42441-58J01-000 |
— | ||
|
4
|
4
46630-58J00-000 JOINT,STABILIZER BARFBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
46630-58J00-000 |
US $36.43 |
||
|
5
|
5
09320-10024-000 CUSHIONFBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
09320-10024-000 |
from US $4.03 |
||
|
6
|
6
09117-08101-000 BOLT(8X25)FBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
09117-08101-000 |
from US $1.92 |
||
|
7
|
7
09159-08129-000
ナット
FBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
09159-08129-000 |
— | ||
|
8
|
8
09159-10056-000 NUTFBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
09159-10056-000 |
US $1.12 |
||
|
9
|
9
09165-10002-000 WASHERFBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
09165-10002-000 |
from US $2.08 |
||
|
10
|
10
09169-14008-000 WASHERFBS,FBV,FCS,FRF,FRS,SX,SXV,ST,SZ; 2007-05-01~ |
09169-14008-000 |
US $23.60 |
||
