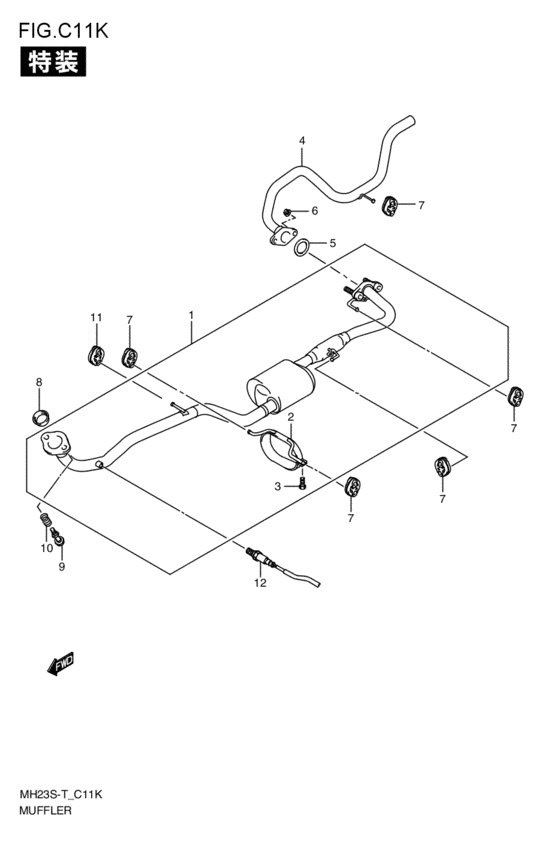

Muffler comp (クルマイスイドウシャ; FK; 2008-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FK
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14120-57JJ0-000
サイレンサアッシ,メイン
FK; 2008-08-01~ |
14120-57JJ0-000 |
— | ||
|
2
|
2
14130-57JJ0-000
ブラケットアッシ,ハンガ
FK; 2008-08-01~ |
14130-57JJ0-000 |
— | ||
|
3
|
3
14183-57JJ0-000
olt
FK; 2008-08-01~ |
14183-57JJ0-000 |
— | ||
|
4
|
4
14140-57JJ0-000
テールパイプアッシ
FK; 2008-08-01~ |
14140-57JJ0-000 |
— | ||
|
5
|
5
14181-57JJ0-000
ガスケット,エキゾーストパイプ
FK; 2008-08-01~ |
14181-57JJ0-000 |
— | ||
|
6
|
6
14184-57JJ0-000
Nut
FK; 2008-08-01~ |
14184-57JJ0-000 |
— | ||
|
7
|
7
14281-57DB0-000
マウント,マフラ
FK; 2008-08-01~ |
14281-57DB0-000 |
— | ||
|
8
|
8
14183-75FC0-000 RING,SEAL EXH PIPEFK; 2008-08-01~ |
14183-75FC0-000 |
from US $14.09 |
||
|
9
|
9
09119-10039-000
Bolt
FK; 2008-08-01~ |
09119-10039-000 |
— | ||
| replacement | |||||
|
9
|
9
14493-76G01-000 BOLT,EXH PIPEFK; 2008-08-01~ |
14493-76G01-000 |
from US $3.04 |
||
|
10
|
10
14492-83G00-000
Spring,exh pipe
FK; 2008-08-01~ |
14492-83G00-000 |
— | ||
| replacement | |||||
|
10
|
10
14492-83G01-000 SPRING,EXH PIPEFK; 2008-08-01~ |
14492-83G01-000 |
US $9.76 |
||
|
11
|
11
14281-75F01-000 MOUNTING,MUFFK; 2008-08-01~ |
14281-75F01-000 |
from US $4.88 |
||
|
12
|
12
18213-82K10-000
センサ,オキシジェンリヤ
FK; 2008-08-01~ |
18213-82K10-000 |
— | ||
| replacement | |||||
|
12
|
12
18213-82K11-000
New Genuine Part
FK; 2008-08-01~ |
18213-82K11-000 |
— | ||
