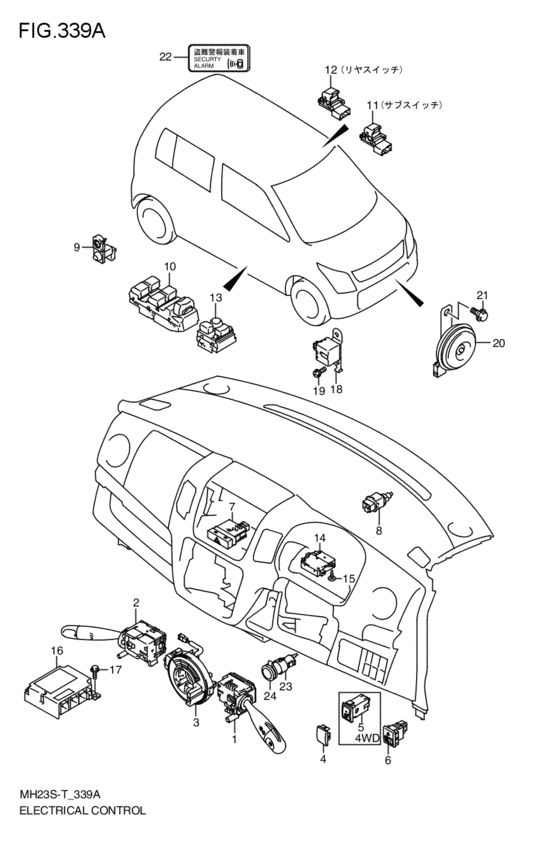

electrical control (2008-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FL
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37210-73H00-000
Switch assy,lighting & turn
2008-08-01~ |
37210-73H00-000 |
— | ||
| replacement | |||||
|
1
|
1
37210-73H01-000 SWITCH ASSY,LIGHTING&TURN2008-08-01~ |
37210-73H01-000 |
from US $105.50 |
||
|
2
|
2
37310-72J00-000 SWITCH ASSY,WIPER&WASHER2008-08-01~ |
37310-72J00-000 |
from US $167.44 |
||
|
3
|
3
37480-73H00-000 CABLE ASSY,CONTACT COIL2008-08-01~ |
37480-73H00-000 |
from US $160.56 |
||
|
4
|
4
37285-75F10-000 CAP,OPTION SW HOLE2008-08-01~ |
37285-75F10-000 |
from US $1.94 |
||
|
5
|
5
37850-81J00-000
スイッチアッシ,シートヒータ
4WD; 2008-08-01~ |
37850-81J00-000 |
— | ||
| replacement | |||||
|
5
|
5
37850-81J01-000
New Genuine Part
4WD; 2008-08-01~ |
37850-81J01-000 |
— | ||
|
6
|
6
35180-81J00-000 SWITCH ASSY,HEADLAMP LEVELING2008-08-01~ |
35180-81J00-000 |
US $51.15 |
||
|
7
|
7
37430-82K00-ZML
スイッチ,ハザードウォーニング(シルバー)
2008-08-01~ |
37430-82K00-ZML |
— | ||
| replacement | |||||
|
7
|
7
37430-82K01-ZML
New Genuine Part
2008-08-01~ |
37430-82K01-ZML |
— | ||
|
8
|
8
37740-75H21-000 SWITCH ASSY,STOP LAMP2008-08-01~ |
37740-75H21-000 |
from US $19.14 |
||
|
9
|
9
37670-58J10-000 SWITCH ASSY,DOOR2008-08-01~2008-11-01 |
37670-58J10-000 |
from US $13.98 |
||
|
9
|
9
37670-58J20-000 SWITCH ASSY,DOOR2008-11-01~ |
37670-58J20-000 |
from US $7.43 |
||
|
10
|
10
37990-82K20-000
スイッチアッシ,パワーウィンドマスタ
2008-08-01~ |
37990-82K20-000 |
— | ||
| replacements | |||||
|
10
|
10
37990-82K51-000
New Genuine Part
2008-08-01~ |
37990-82K51-000 |
— | ||
|
10
|
10
37990-82K52-000
New Genuine Part
2008-08-01~ |
37990-82K52-000 |
— | ||
|
11
|
11
37995-58J00-000 SWITCH ASSY,P/W SUBサブ スイツチ; 2008-08-01~ |
37995-58J00-000 |
from US $20.24 |
||
|
12
|
12
37995-58J00-000 SWITCH ASSY,P/W SUBリヤ スイツチ; 2008-08-01~ |
37995-58J00-000 |
from US $20.24 |
||
|
13
|
13
37950-82K00-000
スイッチアッシ,ミラー
2008-08-01~ |
37950-82K00-000 |
— | ||
|
14
|
14
38720-70K00-000
コントローラアッシ,パワーステアリング
2008-08-01~ |
38720-70K00-000 |
— | ||
|
15
|
15
02142-0516B-000 SCREW2008-08-01~ |
02142-0516B-000 |
from US $0.96 |
||
|
16
|
16
38910-70K00-000
コントローラアッシ,エアバッグ
2008-08-01~ |
38910-70K00-000 |
— | ||
|
17
|
17
09115-06004-000 BOLT(6X16)2008-08-01~ |
09115-06004-000 |
US $12.50 |
||
|
18
|
18
38930-85K00-000
センサアッシ,フォワードライト
2008-08-01~ |
38930-85K00-000 |
— | ||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket 2008-08-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
20
|
20
38500-66K00-000
Horn assy
2008-08-01~ |
38500-66K00-000 |
— | ||
| replacement | |||||
|
20
|
20
38500-66K01-000 HORN ASSY2008-08-01~ |
38500-66K01-000 |
US $38.77 |
||
|
21
|
21
09115-08001-000 BOLT(8X18)2008-08-01~ |
09115-08001-000 |
from US $1.01 |
||
|
22
|
22
36771-58J00-000
LABEL,SECURITY ALARM
2008-08-01~ |
36771-58J00-000 |
— | ||
| replacement | |||||
|
22
|
22
36771-58J01-000 Label,security Alarm2008-08-01~ |
36771-58J01-000 |
US $2.80 |
||
|
23
|
23
39420-76F00-000 BODY,SOCKET2008-08-01~ |
39420-76F00-000 |
from US $8.60 |
||
|
24
|
24
39441-63J01-P4Z COVER,SOCKET2008-08-01~ |
39441-63J01-P4Z |
from US $4.16 |
||
