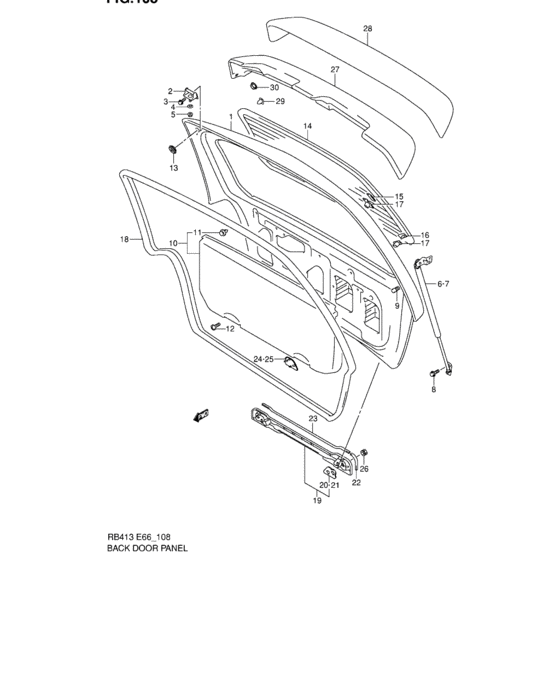

Back door panel (BACK DOOR PANEL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-83E40-000
Panel assy, back door
GL |
69100-83E40-000 |
— | ||
|
1
|
1
69100-83E10-000
Panel assy, back door
GLX |
69100-83E10-000 |
— | ||
|
1
|
1
69100-83E30-000
Panel assy, back door
GS:TYPE 1 |
69100-83E30-000 |
— | ||
|
1
|
1
69100-83E70-000
Panel assy, back door
GS:TYPE 2 |
69100-83E70-000 |
— | ||
|
2
|
2
69510-83E00-000
Hinge, back door
|
69510-83E00-000 |
— | ||
|
3
|
3
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
4
|
4
69571-76G00-000 PACKING,BACK DR HNG |
69571-76G00-000 |
US $2.24 |
||
|
5
|
5
08361-25083-000
Nut
|
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.96 |
||
|
6
|
6
81850-83E10-X10
Balancer, back door rh
|
81850-83E10-X10 |
— | ||
| replacement | |||||
|
6
|
6
81850-83E10-000 BALANCER,BACK DR,R |
81850-83E10-000 |
US $103.04 |
||
|
7
|
7
81860-83E10-X10
Balancer, back door lh
|
81860-83E10-X10 |
— | ||
| replacement | |||||
|
7
|
7
81860-83E10-000 BALANCER,BACK DR,L |
81860-83E10-000 |
US $103.04 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
82683-80E00-000
Cushion, door side
|
82683-80E00-000 |
— | ||
|
10
|
10
83770-83E00-T01
Trim, back door
|
83770-83E00-T01 |
— | ||
|
11
|
11
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
12
|
12
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
09250-20023-000 CAP(OD:25.8) |
09250-20023-000 |
from US $1.67 |
||
|
14
|
14
84570-83E00-000
Glass, back dr window
GL,GLX,GS |
84570-83E00-000 |
— | ||
|
14
|
14
84570-83E10-000
Glass, back dr window
GLX,GS |
84570-83E10-000 |
— | ||
|
15
|
15
84513-76F00-000 MALE,GLASS FASTENER NO.2 |
84513-76F00-000 |
from US $1.60 |
||
|
16
|
16
84572-74G00-000 MALE,GLASS FASTENER NO.1 |
84572-74G00-000 |
from US $3.20 |
||
|
17
|
17
84515-65D00-000 FEMALE,GLASS FASTENER NO.2 |
84515-65D00-000 |
from US $3.60 |
||
|
18
|
18
84681-83E02-000
Weatherstrip, back dr opening
|
84681-83E02-000 |
— | ||
|
19
|
19
82850-83E10-5PK HANDLE ASSY,BACK DR OTRGLX,GS |
82850-83E10-5PK |
US $67.71 |
||
|
20
|
20
82854-83E00-000
PACKING,BACK DOOR HANDLE,R
GLX,GS |
82854-83E00-000 |
— | ||
|
21
|
21
82855-83E00-000
PACKING,BACK DOOR HANDLE,L
GLX,GS |
82855-83E00-000 |
— | ||
|
22
|
22
82856-83E00-000 CUSHION,BACK DR HANDLEGLX,GS |
82856-83E00-000 |
US $3.94 |
||
|
23
|
23
82857-83E00-000
CUSHION,BACK DR HANDLE CTR
GLX,GS |
82857-83E00-000 |
— | ||
|
24
|
24
82852-83E00-5PK CAP,BACK DR HANDLE,RGLX,GS |
82852-83E00-5PK |
US $8.80 |
||
|
25
|
25
82853-83E00-5PK CAP,BACK DR HANDLE,LGLX,GS |
82853-83E00-5PK |
US $8.80 |
||
|
26
|
26
09159-06076-000 NUTGLX,GS |
09159-06076-000 |
from US $0.99 |
||
|
27
|
27
83900-83E00-Y29
Spoiler, back door
GS:TYPE 1 |
83900-83E00-Y29 |
— | ||
|
27
|
27
83900-83E00-Z0L
Spoiler, back door
GS:TYPE 1 |
83900-83E00-Z0L |
— | ||
|
27
|
27
83900-83E00-Z2S
Spoiler, back door
GS:TYPE 1 |
83900-83E00-Z2S |
— | ||
| replacement | |||||
|
27
|
27
83900-78F00-Z2S
SPOILER ASSY,BACK DOOR
GS:TYPE 1 |
83900-78F00-Z2S |
— | ||
|
27
|
27
83900-83E00-Z5H
Spoiler, back door
GS:TYPE 1 |
83900-83E00-Z5H |
— | ||
|
27
|
27
83900-83E00-Z6J
Spoiler, back door (blue green
GS:TYPE 1 |
83900-83E00-Z6J |
— | ||
|
27
|
27
83900-83E00-Z6K
Spoiler, back door
GS:TYPE 1 |
83900-83E00-Z6K |
— | ||
|
27
|
27
83900-83E00-Z7B
Spoiler, back door
GS:TYPE 1 |
83900-83E00-Z7B |
— | ||
|
27
|
27
83900-83E00-26U
Spoiler, back door
GS:TYPE 1 |
83900-83E00-26U |
— | ||
| replacement | |||||
|
27
|
27
83900-78F00-26U
Air spoiler assy,back door(whi
GS:TYPE 1 |
83900-78F00-26U |
— | ||
|
28
|
28
83900-83E10-Y29
Spoiler, back door
GS:TYPE 2 |
83900-83E10-Y29 |
— | ||
|
28
|
28
83900-83E10-Z0L
Spoiler, back door
GS:TYPE 2 |
83900-83E10-Z0L |
— | ||
|
28
|
28
83900-83E10-Z2S
Spoiler, back door
GS:TYPE 2 |
83900-83E10-Z2S |
— | ||
|
28
|
28
83900-83E10-Z5H
Spoiler, back door
GS:TYPE 2 |
83900-83E10-Z5H |
— | ||
|
28
|
28
83900-83E10-Z6J
Spoiler, back door (blue/green
GS:TYPE 2 |
83900-83E10-Z6J |
— | ||
|
28
|
28
83900-83E10-Z6K
Spoiler, back door
GS:TYPE 2 |
83900-83E10-Z6K |
— | ||
|
28
|
28
83900-83E10-Z7B
Spoiler, back door
GS:TYPE 2 |
83900-83E10-Z7B |
— | ||
|
28
|
28
83900-83E10-26U
Spoiler, back door
GS:TYPE 2 |
83900-83E10-26U |
— | ||
|
29
|
29
09410-00076-000 CLIPGS |
09410-00076-000 |
from US $1.33 |
||
|
30
|
30
09159-06076-000 NUTGS |
09159-06076-000 |
from US $0.99 |
||
