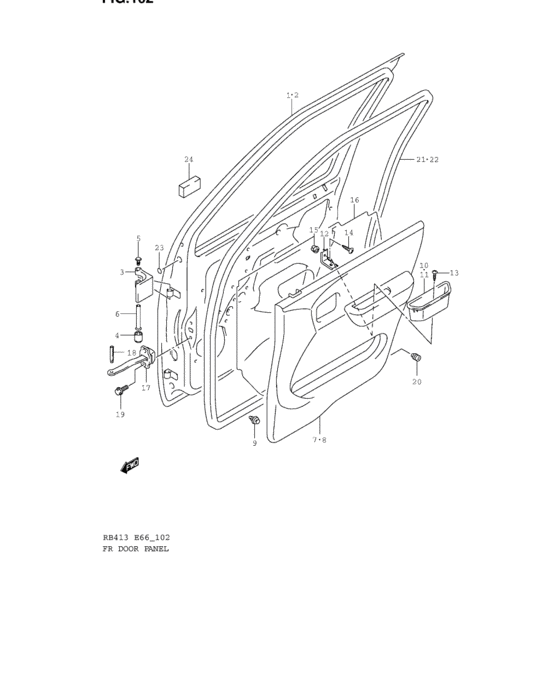

Front door panel (FRONT DOOR PANEL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-83E00-000
Panel assy, front door rh
GL |
68001-83E00-000 |
— | ||
|
1
|
1
68001-83E30-000
Panel assy, front door rh
GLX,GS |
68001-83E30-000 |
— | ||
|
2
|
2
68002-83E00-000
Panel assy, front door lh
GL |
68002-83E00-000 |
— | ||
|
2
|
2
68002-83E30-000
Panel assy, front door lh
GLX,GS |
68002-83E30-000 |
— | ||
|
3
|
3
69311-83E00-000
Female, door hinge
|
69311-83E00-000 |
— | ||
|
4
|
4
69318-83E00-000
Cap, door hinge no.1
|
69318-83E00-000 |
— | ||
|
5
|
5
69319-83E00-000
Cap, door hinge no.2
|
69319-83E00-000 |
— | ||
|
6
|
6
69313-83E00-000
Pin, door hinge
|
69313-83E00-000 |
— | ||
|
7
|
7
83710-83E00-N9H
Trim, fr door rh
GL:N/POWER WINDOW |
83710-83E00-N9H |
— | ||
|
7
|
7
83710-83E10-N9H
Trim, fr door rh
GL:W/POWER WINDOW |
83710-83E10-N9H |
— | ||
|
7
|
7
83710-83E00-N9D
Trim, fr door rh
GLX,GS:N/POWER WINDOW |
83710-83E00-N9D |
— | ||
|
7
|
7
83710-83E00-N9F
Trim, fr door rh
GLX,GS:N/POWER WINDOW |
83710-83E00-N9F |
— | ||
|
7
|
7
83710-83E10-N9D
Trim, fr door rh
GLX,GS:W/POWER WINDOW |
83710-83E10-N9D |
— | ||
|
7
|
7
83710-83E10-N9F
Trim, fr door rh
GLX,GS:W/POWER WINDOW |
83710-83E10-N9F |
— | ||
|
8
|
8
83720-83E00-N9H
Trim, fr door lh
GL:N/POWER WINDOW,N/REMOCON MIRROR |
83720-83E00-N9H |
— | ||
|
8
|
8
83720-83E10-N9H
Trim, fr door lh
GL:W/POWER WINDOW,N/REMOCON MIRROR |
83720-83E10-N9H |
— | ||
|
8
|
8
83720-83E20-N9H
Trim, fr door lh
GL:N/POWER WINDOW,W/REMOCON MIRROR |
83720-83E20-N9H |
— | ||
|
8
|
8
83720-83E30-N9H
Trim, fr door lh
GL:W/POWER WINDOW,W/REMOCON MIRROR |
83720-83E30-N9H |
— | ||
|
8
|
8
83720-83E00-N9D
Trim, fr door lh
GLX,GS:N/POWER WINDOW,N/REMOCON MIRROR |
83720-83E00-N9D |
— | ||
|
8
|
8
83720-83E00-N9F
Trim, fr door lh
GLX,GS:N/POWER WINDOW,N/REMOCON MIRROR |
83720-83E00-N9F |
— | ||
|
8
|
8
83720-83E10-N9D
Trim, fr door lh
GLX,GS:W/POWER WINDOW,N/REMOCON MIRROR |
83720-83E10-N9D |
— | ||
|
8
|
8
83720-83E10-N9F
Trim, fr door lh
GLX,GS:W/POWER WINDOW,N/REMOCON MIRROR |
83720-83E10-N9F |
— | ||
|
8
|
8
83720-83E20-N9D
Trim, fr door lh
GLX,GS:N/POWER WINDOW,W/REMOCON MIRROR |
83720-83E20-N9D |
— | ||
|
8
|
8
83720-83E20-N9F
Trim, fr door lh
GLX,GS:N/POWER WINDOW,W/REMOCON MIRROR |
83720-83E20-N9F |
— | ||
|
8
|
8
83720-83E30-N9D
Trim, fr door lh
GLS,GS:W/POWER WINDOW,W/REMOCON MIRROR |
83720-83E30-N9D |
— | ||
|
8
|
8
83720-83E30-N9F
Trim, fr door lh
GLX,GS:W/POWER WINDOW,W/REMOCON MIRROR |
83720-83E30-N9F |
— | ||
|
9
|
9
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
10
|
10
83797-83E00-T01
Handle, trim rh
N/POWER WINDOW |
83797-83E00-T01 |
— | ||
|
11
|
11
83798-83E00-T01
Handle, trim lh
N/POWER WINDOW,N/POWER DOOR LOCK |
83798-83E00-T01 |
— | ||
|
12
|
12
83751-83E00-000
Bracket, door trim
|
83751-83E00-000 |
— | ||
|
13
|
13
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
14
|
14
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
15
|
15
09148-06007-000 NUT |
09148-06007-000 |
from US $0.91 |
||
|
16
|
16
83911-83E00-000
Cover, door sealing
|
83911-83E00-000 |
— | ||
|
17
|
17
81810-83E01-000
Stop, door open
|
81810-83E01-000 |
— | ||
|
18
|
18
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY |
81831-70B00-000 |
from US $1.60 |
||
|
19
|
19
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
20
|
20
82711-83E00-000
Stopper, door
|
82711-83E00-000 |
— | ||
|
21
|
21
84641-83E01-000
Weatherstrip, door opening rh
|
84641-83E01-000 |
— | ||
|
22
|
22
84651-83E01-000
Weatherstrip, door opening lh
|
84651-83E01-000 |
— | ||
|
23
|
23
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole CUT AS REQUIRED |
84761-50X50-000 |
from US $6.72 |
||
|
24
|
24
77591-75000-000 PAD |
77591-75000-000 |
from US $0.56 |
||
