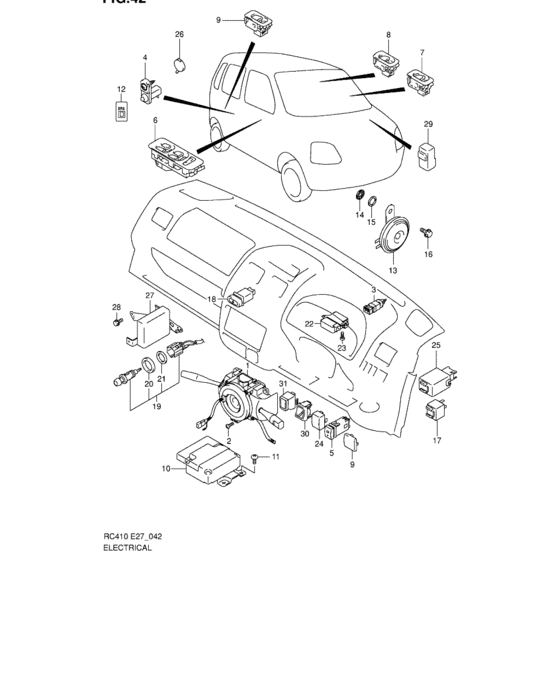

Electrical control (TYPE 1) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-78F40-000 SWITCH ASSY,COMB |
37400-78F40-000 |
US $355.12 |
||
|
2
|
2
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-80G10-000 SWITCH ASSY,STOP LAMP |
37740-80G10-000 |
from US $12.92 |
||
|
4
|
4
37670-76G00-000 SWITCH ASSY,DOOR |
37670-76G00-000 |
from US $10.06 |
||
|
5
|
5
37860-64G00-000 SWITCH ASSY,RR DEFOGGER |
37860-64G00-000 |
from US $26.17 |
||
|
6
|
6
37990-75F51-P4Z SWITCH ASSY,P/W MAIN |
37990-75F51-P4Z |
US $268.64 |
||
|
7
|
7
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY) |
37995-75F00-P4Z |
from US $51.44 |
||
|
8
|
8
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY) |
37995-75F00-P4Z |
from US $51.44 |
||
|
9
|
9
37285-75F20-000 CAP,SW HOLE |
37285-75F20-000 |
US $2.80 |
||
|
10
|
10
38910-78F01-000 CONTROLLER ASSY,A/B |
38910-78F01-000 |
US $813.12 |
||
|
11
|
11
09115-06004-000 BOLT(6X16) |
09115-06004-000 |
US $12.50 |
||
|
12
|
12
38918-76G10-000 LABEL,AIR BAG(MARK D) |
38918-76G10-000 |
US $2.87 |
||
|
13
|
13
38500-65D10-000
HORN ASSY LP
|
38500-65D10-000 |
— | ||
| replacement | |||||
|
13
|
13
38500-65D50-000 HORN ASSY,LOW PITCHED |
38500-65D50-000 |
from US $38.63 |
||
|
14
|
14
38570-65D00-000 STOPPER,HORN |
38570-65D00-000 |
US $1.62 |
||
|
15
|
15
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
16
|
16
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
16
|
16
01570-0820A-000 Bolt |
01570-0820A-000 |
from US $0.96 |
||
|
17
|
17
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
from US $44.30 |
||
|
18
|
18
37430-64G00-000 SWITCH ASSY,HAZARD WARNING |
37430-64G00-000 |
from US $25.25 |
||
|
19
|
19
39400-84811-000 LIGHTER ASSY,CIGARETTELighter assy, cigarette |
39400-84811-000 |
from US $14.40 |
||
|
20
|
20
39471-84000-000 RIM,CIGAR LIGHTER |
39471-84000-000 |
from US $2.72 |
||
|
21
|
21
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
22
|
22
38720-70H02-000 CONTROLLER ASSY,EPS |
38720-70H02-000 |
US $1,616 |
||
|
23
|
23
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.96 |
||
|
23
|
23
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
24
|
24
37285-75F10-000 CAP,OPTION SW HOLE |
37285-75F10-000 |
from US $1.94 |
||
|
25
|
25
37190-76G51-000 CONTROLLER,KEYLESS&D/L |
37190-76G51-000 |
US $252.08 |
||
|
26
|
26
39238-76F00-P4Z CAP,SOCKET HOLE |
39238-76F00-P4Z |
US $3.72 |
||
|
27
|
27
38880-78FA0-000
Controller assy,at
|
38880-78FA0-000 |
— | ||
|
28
|
28
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
29
|
29
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $28.80 |
||
|
30
|
30
37285-78F00-000 CASE,COIN |
37285-78F00-000 |
US $3.97 |
||
|
31
|
31
37285-84G10-000
HOLDER ASSY,CARD
|
37285-84G10-000 |
— | ||
