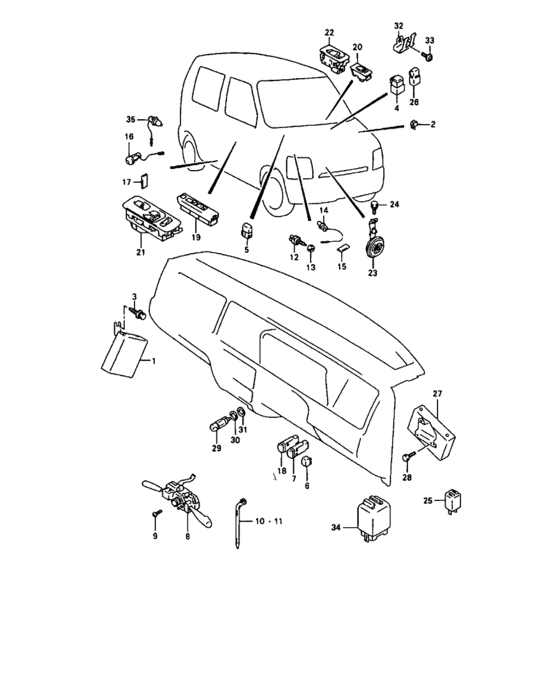

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Asia
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-74F81-000
CONTROLLER,INJECTION / A/C
MT |
33920-74F81-000 |
— | ||
|
2
|
2
33933-80710-000 RESISTOR,CO ADJUSTMARK:L5 |
33933-80710-000 |
US $6.96 |
||
|
2
|
2
33932-80710-000
RESISTER,CO ADJUST NO.7
MARK:L4 |
33932-80710-000 |
— | ||
|
2
|
2
33926-80710-000 RESISTOR,CO ADJUSTMARK:L3 |
33926-80710-000 |
US $8.10 |
||
|
2
|
2
33927-80710-000 RESISTOR,CO ADJUSTMARK:L2 |
33927-80710-000 |
US $8.10 |
||
|
2
|
2
33928-80710-000 RESISTOR,CO ADJUSTMARK:L1 |
33928-80710-000 |
US $8.10 |
||
|
2
|
2
33929-80710-000
RESISTOR,CO ADJUST
MARK:R1 |
33929-80710-000 |
— | ||
|
2
|
2
33930-80710-000 RESISTOR,CO ADJUSTMARK:R2 |
33930-80710-000 |
US $8.10 |
||
|
2
|
2
33931-80710-000 RESISTOR,CO ADJUSTMARK:R3 |
33931-80710-000 |
US $8.10 |
||
|
3
|
3
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
4
|
4
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
US $67.20 |
||
|
5
|
5
38860-60G00-000 RELAY ASSY |
38860-60G00-000 |
US $55.20 |
||
|
6
|
6
37275-50E00-000 CAP,OPTION SW HOLE |
37275-50E00-000 |
US $3.09 |
||
|
7
|
7
37370-50E01-000
SWITCH ASSY,RR WIPER&WASHER
|
37370-50E01-000 |
— | ||
|
8
|
8
37400-74F00-000 SWITCH ASSY,COMBTYPE 1, N/AIR BAG |
37400-74F00-000 |
US $230 |
||
|
8
|
8
37400-70G50-000 SWITCH ASSY,COMBTYPE 1, W/AIR BAG |
37400-70G50-000 |
US $230 |
||
|
9
|
9
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
10
|
10
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
11
|
11
09407-19401-000 CLAMP(L:190) |
09407-19401-000 |
from US $4.17 |
||
|
12
|
12
37740-60D01-000 SWITCH ASSY,STOP LAMPMT |
37740-60D01-000 |
US $42.40 |
||
|
13
|
13
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
14
|
14
37940-50A00-000 SWITCH ASSY,PARKING BRAKE |
37940-50A00-000 |
US $7.73 |
||
|
15
|
15
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
16
|
16
37670-60G10-000
SWITCH ASSY,DOOR
|
37670-60G10-000 |
— | ||
|
17
|
17
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.73 |
||
|
18
|
18
37860-50E01-000
SWITCH ASSY,RR DEFOGGER
|
37860-50E01-000 |
— | ||
|
19
|
19
37990-74FA0-000 SWITCH ASSY,P/W MAINTYPE 1 |
37990-74FA0-000 |
US $211.60 |
||
|
20
|
20
37995-56B50-H2H
SWITCH ASSY,P/W SUB
TYPE 1 |
37995-56B50-H2H |
— | ||
|
21
|
21
37990-75F30-T01
スイッチアッシ,パワーウィンド,メイン(グレー)
TYPE 2 |
37990-75F30-T01 |
— | ||
| replacement | |||||
|
21
|
21
37990-75F31-T01 SWITCH ASSY,P/W MAINTYPE 2 |
37990-75F31-T01 |
US $213.44 |
||
|
22
|
22
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) TYPE 2 |
37995-75F00-T01 |
US $113.60 |
||
|
23
|
23
38500-50E00-000 HORN ASSYTYPE 1 |
38500-50E00-000 |
US $79.81 |
||
|
23
|
23
38500-74F00-000 HORN ASSYTYPE 2 |
38500-74F00-000 |
US $61.46 |
||
|
24
|
24
09118-06106-000 BOLT(6X16) |
09118-06106-000 |
US $1.12 |
||
|
25
|
25
38610-84001-000
リレー,ターンシグナル/4ウェイ
|
38610-84001-000 |
— | ||
| replacement | |||||
|
25
|
25
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $63.20 |
||
|
26
|
26
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
US $67.20 |
||
|
27
|
27
38720-74F52-000
CONTROLLER ASSY,POWER STRG
TYPE 1:MT |
38720-74F52-000 |
— | ||
|
27
|
27
38720-74F62-000
CONTROLLER ASSY,POWER STRG
TYPE 2 |
38720-74F62-000 |
— | ||
|
28
|
28
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
29
|
29
39410-50E00-5ES SOCKET ASSYTYPE 1 |
39410-50E00-5ES |
US $30.36 |
||
|
29
|
29
39410-50E00-T01 SOCKET ASSYTYPE 2 |
39410-50E00-T01 |
US $27.60 |
||
|
30
|
30
39471-84000-000 RIM,CIGAR LIGHTER |
39471-84000-000 |
US $16 |
||
|
31
|
31
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
32
|
32
38861-74F00-000
BRACKET,MAIN&FUEL RELAY
|
38861-74F00-000 |
— | ||
|
33
|
33
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
33
|
33
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
34
|
34
38700-74F00-000 CONTROLLER ASSY,PWR DR LOCK |
38700-74F00-000 |
US $85.01 |
||
|
35
|
35
37670-80010-000 SWITCH ASSY,DOOR |
37670-80010-000 |
US $11.48 |
||
