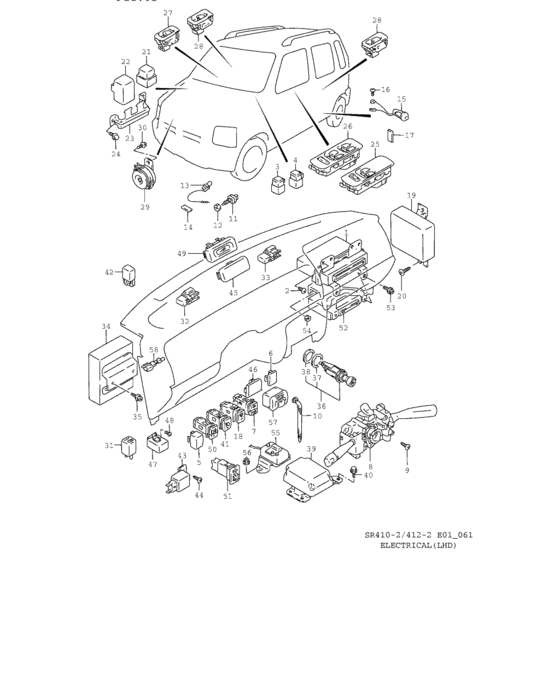

Electrical control (LHD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-75F52-000
Controller,epi / a/c
SR410:Belgium |
33920-75F52-000 |
— | ||
|
1
|
1
33920-75FL0-000
Controller,injection / a/c
SR410:Brazil:MT |
33920-75FL0-000 |
— | ||
|
1
|
1
33920-75FN0-000
Controller, injection/air con
SR412::MT |
33920-75FN0-000 |
— | ||
|
1
|
1
33920-75FJ0-000
Controller,injection / a/c
SR412:Chile:MT |
33920-75FJ0-000 |
— | ||
|
1
|
1
33920-75FG0-000
CONTROLLER,INJECTION / A/C
SR412:Belgium,Israel:MT |
33920-75FG0-000 |
— | ||
|
1
|
1
33920-75FH0-000
CONTROLLER,INJECTION / A/C
SR412:Taiwan |
33920-75FH0-000 |
— | ||
|
2
|
2
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
from US $0.16 |
||
|
3
|
3
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
4
|
4
38860-72G00-000 RELAY ASSYRelay, air con |
38860-72G00-000 |
from US $28.82 |
||
|
5
|
5
37285-75F00-000 CAP,OPTION SW HOLE |
37285-75F00-000 |
from US $2.28 |
||
|
6
|
6
37285-75F10-000 CAP,OPTION SW HOLE |
37285-75F10-000 |
from US $1.94 |
||
|
7
|
7
37370-75F10-000 SWITCH ASSY,RR WIPER&WASHER |
37370-75F10-000 |
US $118.86 |
||
|
8
|
8
37400-71GC2-000
Switch assy, combination
,0,Brazil |
37400-71GC2-000 |
— | ||
| replacement | |||||
|
8
|
8
37400-71GC3-000
SWITCH ASSY,COMB
,0,Brazil |
37400-71GC3-000 |
— | ||
|
8
|
8
37400-71GA0-000
Switch assy, combination
Belgium,Taiwan,Israel |
37400-71GA0-000 |
— | ||
| replacement | |||||
|
8
|
8
37400-71GA1-000 SWITCH ASSY,COMBBelgium,Taiwan,Israel |
37400-71GA1-000 |
US $422.40 |
||
|
9
|
9
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
10
|
10
09407-19401-000 CLAMP(L:190) |
09407-19401-000 |
from US $4.17 |
||
|
11
|
11
37740-60D01-000 SWITCH ASSY,STOP LAMPMT |
37740-60D01-000 |
from US $28.82 |
||
|
12
|
12
09140-10043-000 NUTNut, tie rod rh thread |
09140-10043-000 |
from US $0.91 |
||
|
13
|
13
37940-50A00-000 SWITCH ASSY,PARKING BRAKE |
37940-50A00-000 |
from US $4.93 |
||
|
14
|
14
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
15
|
15
37670-80E10-000 SWITCH ASSY,DOOR |
37670-80E10-000 |
US $16.89 |
||
|
16
|
16
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
17
|
17
36930-82010-000 COVER,HARNESSCover, roof wire |
36930-82010-000 |
from US $1.51 |
||
|
18
|
18
37860-75F10-000 SWITCH ASSY,RR DEFOGGER |
37860-75F10-000 |
from US $23.42 |
||
|
19
|
19
33940-75F01-000
CONTROLLER ASSY,ABS
W/ABS:2WD |
33940-75F01-000 |
— | ||
|
20
|
20
02162-06123-000
Bolt (6x12)
W/ABS |
02162-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
02162-0612B-000 SCREWBolt W/ABS |
02162-0612B-000 |
from US $0.80 |
||
|
20
|
20
02162-0612A-000 SCREWBolt, bracket W/ABS |
02162-0612A-000 |
from US $0.79 |
||
|
21
|
21
38860-50G20-000 RELAY ASSY,ABS MOTORW/ABS |
38860-50G20-000 |
US $161.60 |
||
|
22
|
22
38863-70G00-000 COVER,ABS RELAYW/ABS |
38863-70G00-000 |
US $6.07 |
||
|
23
|
23
38861-75F00-000
BRACKET,ABS RELAY
W/ABS |
38861-75F00-000 |
— | ||
|
24
|
24
02162-06123-000
Bolt (6x12)
W/ABS |
02162-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
02162-0612B-000 SCREWBolt W/ABS |
02162-0612B-000 |
from US $0.80 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket W/ABS |
02162-0612A-000 |
from US $0.79 |
||
|
25
|
25
37990-75F10-T01
Switch assy, power window main
GL |
37990-75F10-T01 |
— | ||
| replacement | |||||
|
25
|
25
37990-75F11-T01 SWITCH ASSY,P/W MAINGL |
37990-75F11-T01 |
from US $169.99 |
||
|
26
|
26
37990-75F60-T01
Switch assy, power window main
GLX |
37990-75F60-T01 |
— | ||
| replacement | |||||
|
26
|
26
37990-75F61-T01
SWITCH ASSY,P/W MAIN
GLX |
37990-75F61-T01 |
— | ||
|
27
|
27
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) GL,GLX |
37995-75F00-T01 |
from US $71.78 |
||
|
28
|
28
37995-75F00-T01 SWITCH ASSY,P/W SUBSwitch assy, power window sub (gray) GLX |
37995-75F00-T01 |
from US $71.78 |
||
|
29
|
29
38500-75F00-000 HORN ASSY |
38500-75F00-000 |
from US $46.67 |
||
|
29
|
29
38500-65D10-000
HORN ASSY LP
JSAEMA61S00213571~,JSAEMA61SW5200002~,MA81S-200205~,JSAEMA81S00214286~,JSAEMA81SX5200001~,JSAEMA81SX0200001~,JSAEMB81S00200001~ |
38500-65D10-000 |
— | ||
| replacement | |||||
|
29
|
29
38500-65D50-000 HORN ASSY,LOW PITCHEDJSAEMA61S00213571~,JSAEMA61SW5200002~,MA81S-200205~,JSAEMA81S00214286~,JSAEMA81SX5200001~,JSAEMA81SX0200001~,JSAEMB81S00200001~ |
38500-65D50-000 |
from US $38.63 |
||
|
30
|
30
09118-06106-000 BOLT(6X16) |
09118-06106-000 |
from US $1.12 |
||
|
31
|
31
38610-84002-000 RELAY TURN SIGNAL |
38610-84002-000 |
US $44.30 |
||
| replacement | |||||
|
31
|
31
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
from US $44.30 |
||
|
32
|
32
38860-60G00-000 RELAY ASSY |
38860-60G00-000 |
from US $42.23 |
||
|
33
|
33
38860-60G00-000 RELAY ASSY |
38860-60G00-000 |
from US $42.23 |
||
|
34
|
34
38720-75F30-000 CONTROLLER ASSY,POWER STRGW/POWER STEERING |
38720-75F30-000 |
US $774.40 |
||
|
35
|
35
02162-06123-000
Bolt (6x12)
W/POWER STEERING |
02162-06123-000 |
— | ||
| replacements | |||||
|
35
|
35
02162-0612B-000 SCREWBolt W/POWER STEERING |
02162-0612B-000 |
from US $0.80 |
||
|
35
|
35
02162-0612A-000 SCREWBolt, bracket W/POWER STEERING |
02162-0612A-000 |
from US $0.79 |
||
|
36
|
36
39400-84811-000 LIGHTER ASSY,CIGARETTELighter assy, cigarette |
39400-84811-000 |
from US $14.40 |
||
|
37
|
37
39471-84000-000 RIM,CIGAR LIGHTER |
39471-84000-000 |
from US $2.72 |
||
|
38
|
38
09160-23007-000 WASHER(23X34X1) |
09160-23007-000 |
US $15.50 |
||
|
39
|
39
38910-75FB0-000
CONTROLLER ASSY,AIR BAG
W/SINGLE AIR BAG |
38910-75FB0-000 |
— | ||
|
39
|
39
38910-75FA0-000
CONTROLLER ASSY,AIR BAG
W/DUAL AIR BAG |
38910-75FA0-000 |
— | ||
|
40
|
40
09129-06006-000 SCREW(6X18)W/AIR BAG |
09129-06006-000 |
US $14 |
||
|
41
|
41
37270-75F10-000 SWITCH ASSY,FR FOG LAMPGLX,Brazil |
37270-75F10-000 |
from US $46.01 |
||
|
42
|
42
38860-60B20-000 RELAY ASSYGLX,Brazil |
38860-60B20-000 |
from US $15.62 |
||
|
43
|
43
38700-50E30-000 CONTROLLER,PWR DR LOCKW/POWER DOOR LOCK |
38700-50E30-000 |
US $104.88 |
||
|
44
|
44
03241-06123-000
Screw
W/POWER DOOR LOCK |
03241-06123-000 |
— | ||
| replacement | |||||
|
44
|
44
03241-0612A-000 SCREWW/POWER DOOR LOCK |
03241-0612A-000 |
US $0.80 |
||
|
45
|
45
39182-75F00-T01
CAP
GA |
39182-75F00-T01 |
— | ||
|
46
|
46
37285-75F20-000 CAP,SW HOLEN/REMOCON MIRROR |
37285-75F20-000 |
US $2.80 |
||
|
47
|
47
33970-75F02-000 CONTROLLER ASSY,IMMOBILIZERBelgium,Taiwan,Israel |
33970-75F02-000 |
from US $478.72 |
||
|
48
|
48
03141-06123-000
Screw 6x12
Belgium,Taiwan,Israel |
03141-06123-000 |
— | ||
| replacement | |||||
|
48
|
48
03141-0612A-000 SCREWBelgium,Taiwan,Israel |
03141-0612A-000 |
US $0.76 |
||
|
49
|
49
34600-75F00-T01
CLOCK ASSY
GL,GLX |
34600-75F00-T01 |
— | ||
|
50
|
50
37280-75F10-000 SWITCH ASSY,RR FOGBelgium,Brazil,Taiwan,Israel |
37280-75F10-000 |
US $72.86 |
||
|
51
|
51
35180-75F00-000
SWITCH ASSY,HEADLAMP LEVELING
Belgium,Taiwan,Israel |
35180-75F00-000 |
— | ||
|
57
|
57
37950-75F00-000 SWITCH ASSY,MIRRORW/REMOCON MIRROR |
37950-75F00-000 |
from US $31.23 |
||
|
58
|
58
33926-60G10-000 RESISTOR,CO ADJUSTER |
33926-60G10-000 |
from US $35.93 |
||
