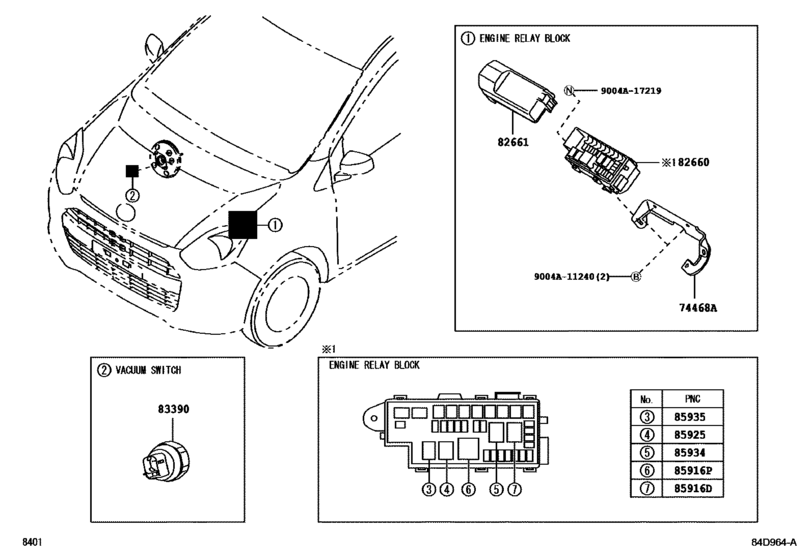

Switch & Relay & Computer ([12.2012 - ] ENGINE ROOM (1212- )HI,LO,MID) Diagram Toyota AGYA/ WIGO
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- B100
- grade
- MID
- ENGINE
- 1KRDE
- TRANSMISSION
- MTM
- Model
- WIGO
- From
- 01.2014
- To
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- WIGO
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74468A
|
74468A
74468-BZ090
Bracket, Relay Block
[12.2012 - 04.2017] B100 |
74468-BZ090 |
— | ||
|
82660
|
82660
82660-B1010 Block Assy, Relay, Engine Room[12.2012 - 04.2017] B100 |
82660-B1010 |
US $133.95 |
||
|
82661
|
82661
82661-BZ100
Cover, Relay Block, No.1
[12.2012 - 04.2017] B100 |
82661-BZ100 |
— | ||
|
85916P
|
85916P
9004A-98011 Relay, Headlamp[12.2012 - 04.2017] B100 |
9004A-98011 |
US $29.12 |
||
|
85925
|
85925
9004A-98006 Relay[12.2012 - 04.2017] B100 |
9004A-98006 |
US $32.83 |
||
|
85934
|
85934
90049-88004 Relay Assy, Starter[12.2012 - 04.2017] B100..HI,MID; B100..LO AIR CONDITIONER-MANUAL |
90049-88004 |
US $32.98 |
||
|
85935
|
85935
9004A-98006 Relay[12.2012 - 04.2017] B100 |
9004A-98006 |
US $32.83 |
||
|
9004A11240
|
9004A11240
9004A-11240
New Genuine Part
|
9004A-11240 |
— | ||
|
9004A17219
|
9004A17219
9004A-17219
New Genuine Part
|
9004A-17219 |
— |
