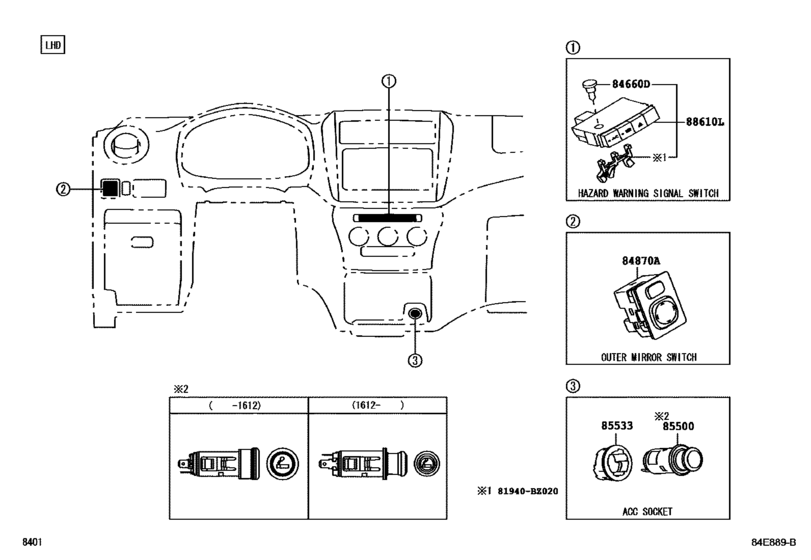

Switch & Relay & Computer ([01.2014 - ] SWITCH (1401- )HI,MID..WIGO) Diagram Toyota AGYA/ WIGO
- Year
- 2014 - 2017
- Sales region
- General
- Frame
- B100
- grade
- MID
- ENGINE
- 1KRDE
- TRANSMISSION
- MTM
- Model
- WIGO
- From
- 01.2014
- To
- 04.2017
- No.of Doors
- 5D
- Vehicle Model
- WIGO
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84660D
|
84660D
81936-BZ010
Bulb(For Cooler Switch)
[01.2014 - 04.2017] B100..WIGO 14V-40MA |
81936-BZ010 |
— | ||
|
85500
|
85500
85500-BZ040 Lighter Assy, Cigarette[03.2013 - 12.2016] B100 |
85500-BZ040 |
US $68.10 |
||
|
85500
|
85500
85500-BZ041 Lighter Assy, Cigarette[12.2016 - 04.2017] B100 |
85500-BZ041 |
US $56.39 |
||
|
85533
|
85533
85533-BZ030
Lens, Cigarette Lighter Indicator
[02.2013 - 04.2017] B100 |
85533-BZ030 |
— | ||
|
88610L
|
88610L
88610-BZ070-B0
Switch Assy,control
[01.2014 - 04.2017] B100..WIGO DK.GRAY,TRIM1# |
88610-BZ070-B0 |
— | ||
|
81940BZ020
|
81940BZ020
81940-BZ020
New Genuine Part
|
81940-BZ020 |
— |
