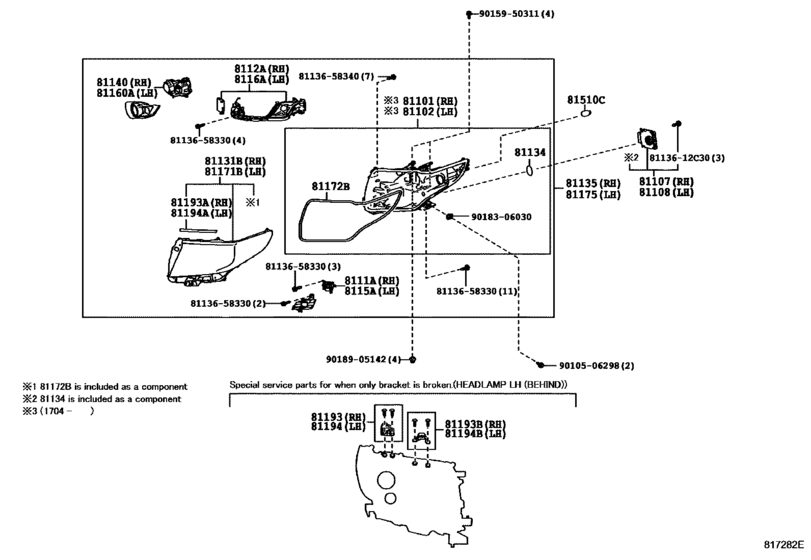

Headlamp ([01.2015 - ] (1501- )ALPHD..L,Q,V) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- AGH30
- ENGINE
- 2ARFE
- TRANSMISSION
- CVT
- Model
- Alphard III
- From
- 01.2015
- Seating Capacity
- 07S
- Vehicle Model
- ALPHD
- Model Mark
- L
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8111A
|
8111A
8111A-58340 Unit, Headlamp Cornering Led, Rh[01.2015 -] AGH30,AYH30,GGH30..L,Q,V |
8111A-58340 |
US $206.75 |
||
|
8112A
|
8112A
8112A-58350
Unit, Headlamp Clearance Led, No.1 Rh
[01.2015 -] AGH30,AYH30,GGH30..ALPHD..(L,Q,V) |
8112A-58350 |
— | ||
|
8115A
|
8115A
8115A-58340 Unit, Headlamp Cornering Led, Lh[01.2015 -] AGH30,AYH30,GGH30..L,Q,V |
8115A-58340 |
US $206.75 |
||
|
8116A
|
8116A
8116A-58350
Unit, Headlamp Clearance Led, No.1 Lh
[01.2015 -] AGH30,AYH30,GGH30..ALPHD..(L,Q,V) |
8116A-58350 |
— | ||
|
81101
|
81101
8111B-58350
Housing Sub-Assy, Headlamp, Rh
[04.2017 -] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
8111B-58350 |
— | ||
|
81102
|
81102
8115B-58350
Housing Sub-Assy, Headlamp, Lh
[04.2017 -] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
8115B-58350 |
— | ||
|
81107
|
81107
81107-58340 Computer Sub-Assy, Headlamp Light Control, Rh[01.2015 -] AGH30,AYH30,GGH30..L,Q,V |
81107-58340 |
US $429.80 |
||
|
81108
|
81108
81108-58340 Computer Sub-Assy, Headlamp Light Control, Lh[01.2015 -] AGH30,AYH30,GGH30..L,Q,V |
81108-58340 |
US $429.80 |
||
|
81131B
|
81131B
81131-58340 Head Lamp Lens, Rh[01.2015 -] AGH30,AYH30,GGH30..ALPHD..(L,Q,V) |
81131-58340 |
US $512.51 |
||
|
81134
|
81134
81134-58340 Gasket, Headlamp[01.2015 -] AGH30,AYH30,GGH30 |
81134-58340 |
from US $9.77 |
||
|
81135
|
81135
81145-58350
Unit Assy, Headlamp, Rh
[01.2015 - 05.2016] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
81145-58350 |
— | ||
| replacement | |||||
|
81135
|
81135
81145-58351
Unit Assy, Headlamp, Rh
[01.2015 - 05.2016] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
81145-58351 |
— | ||
|
81135
|
81135
81145-58351
Unit Assy, Headlamp, Rh
[05.2016 -] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
81145-58351 |
— | ||
|
81140
|
81140
81140-58330 Unit Assy, Headlamp Led, Rh[01.2015 -] AGH30,AYH30,GGH30..RHD |
81140-58330 |
US $535.81 |
||
|
81160A
|
81160A
81160-58330 Unit Assy, Headlamp Led, Lh[01.2015 -] AGH30,AYH30,GGH30..RHD |
81160-58330 |
US $535.81 |
||
|
81171B
|
81171B
81171-58340 Head Lamp Lens, Lh[01.2015 -] AGH30,AYH30,GGH30..ALPHD..(L,Q,V) |
81171-58340 |
US $512.51 |
||
|
81172B
|
81172B
81132-58330 Gasket, Headlamp Lens[01.2015 - 04.2017] AGH30,AYH30,GGH30 |
81132-58330 |
US $72.20 |
||
|
81175
|
81175
81185-58350
Unit Assy, Headlamp, Lh
[01.2015 - 05.2016] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
81185-58350 |
— | ||
| replacement | |||||
|
81175
|
81175
81185-58351
Unit Assy, Headlamp, Lh
[01.2015 - 05.2016] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
81185-58351 |
— | ||
|
81175
|
81175
81185-58351
Unit Assy, Headlamp, Lh
[05.2016 -] AGH30,AYH30,GGH30..RHD..ALPHD..(L,Q,V) |
81185-58351 |
— | ||
|
81193
|
81193
81193-58070 Retainer, Headlamp Protector, Upper Rh[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
81193-58070 |
US $12.96 |
||
|
81193A
|
81193A
81117-58330 Protector, Headlamp, Rh[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
81117-58330 |
US $12.23 |
||
|
81193B
|
81193B
81193-58080
Retainer, Headlamp Protector, Upper Rh No.2
[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
81193-58080 |
— | ||
| replacement | |||||
|
81193B
|
81193B
81193-58081 Retainer, Headlamp Protector, Upper Rh No.2[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
81193-58081 |
US $8.80 |
||
|
81194
|
81194
81194-58070 Retainer, Headlamp Protector, Upper Lh[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
81194-58070 |
from US $12.96 |
||
|
81194A
|
81194A
81157-58330 Protector, Headlamp, Lh[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
81157-58330 |
US $12.23 |
||
|
81194B
|
81194B
81194-58080
Retainer, Headlamp Protector, Upper Lh No.2
[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
81194-58080 |
— | ||
| replacement | |||||
|
81194B
|
81194B
8119458081 Retainer, Headlamp Protector, Upr Lh[01.2015 -] AGH30,AYH30,GGH30..ALPHD |
8119458081 |
US $8.80 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[01.2015 -] AGH30,AYH30,GGH30 12V 21W,AMBER |
90981-15011 |
from US $4.60 |
||
|
8113612C30
|
8113612C30
81136-12C30 Protector, Headlamp, No.1 Rh |
81136-12C30 |
US $1.76 |
||
|
8113658330
|
8113658330
81136-58330 Protector, Headlamp, No.1 Rh |
81136-58330 |
US $1.76 |
||
|
8113658340
|
8113658340
81136-58340 Protector, Headlamp, No.1 Rh |
81136-58340 |
US $1.46 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9018306030
|
9018306030
90183-06030 NUT SPRING |
90183-06030 |
from US $0.78 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
