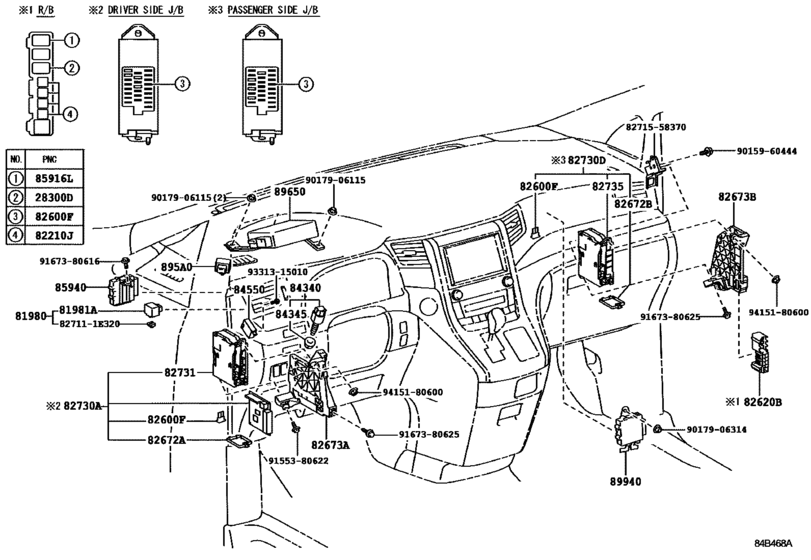

Switch & Relay & Computer ([05.2010 - ] COWL (1005- )LHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- ANH20
- grade
- 350G
- ENGINE
- 2AZFE
- DESTINATION
- GCC
- Model
- Alphard II
- From
- 06.2010
- To
- 01.2015
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[10.2009 - 10.2011] ANH20,GGH20 |
895A0-46020 |
US $74.78 |
||
|
28300D
|
28300D
90987-02027 Relay[04.2008 - 10.2011] 2AZFE,2GRFE..ANH20,GGH20 |
90987-02027 |
from US $44.54 |
||
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[06.2010 - 10.2011] ANH20,GGH20..LHD |
81980-30170 |
from US $52.59 |
||
|
81981A
|
81981A
81980-50030 Flasher Assy, Turn Signal[06.2010 - 10.2011] ANH20,GGH20..LHD |
81980-50030 |
from US $52.51 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[09.2012 - 01.2015] ANH20,ATH20,GGH20 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[04.2008 - 10.2011] ANH20;GGH20..RHD;GGH20..GCC 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[04.2008 - 10.2011] ANH20,GGH20..RHD;ANH20,GGH20..GCC 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[04.2008 - 10.2011] ANH20..GCC;ANH20,GGH20..6FC,CVFC 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[04.2008 - 10.2011] ANH20,GGH20 7.5A,MINI FUSE |
90982-09020 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2008 - 10.2011] ANH20,GGH20 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2008 - 10.2011] ANH20,GGH20 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2008 - 10.2011] ANH20,GGH20 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2012 - 01.2015] ANH20,ATH20,GGH20 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[04.2008 - 10.2011] ANH20,GGH20 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82620B
|
82620B
82620-28290 Block Assy, Fusible Link[04.2008 - 10.2011] ANH20,GGH20..07S..(350G,350S) |
82620-28290 |
US $28.10 |
||
|
82672A
|
82672A
82672-58050
Cover, Junction Block
[06.2010 - 10.2011] ANH20,GGH20..LHD |
82672-58050 |
— | ||
|
82672A
|
82672A
82672-58070 Cover, Junction Block[10.2011 - 01.2015] ANH20,GGH20..LHD |
82672-58070 |
US $3.93 |
||
|
82672B
|
82672B
82672-58060
Cover, Junction Block
[06.2010 - 10.2011] ANH20,GGH20..LHD |
82672-58060 |
— | ||
|
82672B
|
82672B
82672-58080 Cover, Junction Block[10.2011 - 09.2012] ANH20,GGH20..LHD |
82672-58080 |
US $4.80 |
||
|
82672B
|
82672B
82672-58081 Cover, Junction Block[09.2012 - 01.2015] ANH20,GGH20..LHD |
82672-58081 |
US $3.93 |
||
|
82673A
|
82673A
82673-58040
Bracket, Junction Block
[06.2010 - 10.2011] ANH20,GGH20..LHD |
82673-58040 |
— | ||
|
82673B
|
82673B
82673-58050
Bracket, Junction Block
[06.2010 - 10.2011] ANH20,GGH20..LHD |
82673-58050 |
— | ||
|
82730A
|
82730A
82730-58190
Block Assy, Driver Side Junction
[06.2010 - 10.2011] ANH20,GGH20..GCC |
82730-58190 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-58480
Block Assy, Driver Side Junction
[06.2010 - 10.2011] ANH20,GGH20..GCC |
82730-58480 |
— | ||
|
82730A
|
82730A
82730-58200
Block Assy, Driver Side Junction
[06.2010 - 10.2011] ANH20..GCC SYRIA SPEC |
82730-58200 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-58490
Block Assy, Driver Side Junction
[06.2010 - 10.2011] ANH20..GCC SYRIA SPEC |
82730-58490 |
— | ||
|
82730A
|
82730A
82730-58301
Block Assy, Driver Side Junction
[10.2011 - 11.2011] ANH20,GGH20..GCC |
82730-58301 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-58303
Block Assy, Driver Side Junction
[10.2011 - 11.2011] ANH20,GGH20..GCC |
82730-58303 |
— | ||
|
82730A
|
82730A
82730-58302
Block Assy, Driver Side Junction
[12.2011 - 05.2013] ANH20,GGH20..GCC |
82730-58302 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-58303
Block Assy, Driver Side Junction
[12.2011 - 05.2013] ANH20,GGH20..GCC |
82730-58303 |
— | ||
|
82730A
|
82730A
82730-58303
Block Assy, Driver Side Junction
[06.2013 - 01.2015] ANH20,GGH20..GCC |
82730-58303 |
— | ||
|
82730A
|
82730A
82730-58311
Block Assy, Driver Side Junction
[10.2011 - 11.2011] ANH20..GCC SYRIA SPEC |
82730-58311 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-58313
Block Assy, Driver Side Junction
[10.2011 - 11.2011] ANH20..GCC SYRIA SPEC |
82730-58313 |
— | ||
|
82730A
|
82730A
82730-58312
Block Assy, Driver Side Junction
[12.2011 - 05.2013] ANH20..GCC SYRIA SPEC |
82730-58312 |
— | ||
| replacement | |||||
|
82730A
|
82730A
82730-58313
Block Assy, Driver Side Junction
[12.2011 - 05.2013] ANH20..GCC SYRIA SPEC |
82730-58313 |
— | ||
|
82730A
|
82730A
82730-58313
Block Assy, Driver Side Junction
[06.2013 - 01.2015] ANH20..GCC SYRIA SPEC |
82730-58313 |
— | ||
|
82730D
|
82730D
82730-58140
Block Assy, Passenger Side Junction
[06.2010 - 10.2011] ANH20,GGH20..LHD |
82730-58140 |
— | ||
|
82730D
|
82730D
82730-58142 Block Assy, Driver Side Junction[10.2011 - 09.2012] ANH20,GGH20..LHD |
82730-58142 |
US $218.40 |
||
|
82730D
|
82730D
82730-58143 Block Assy, Driver Side Junction[09.2012 - 01.2015] ANH20,GGH20..LHD |
82730-58143 |
US $182 |
||
|
82731
|
82731
82731-28050 Block, Passenger Side Junction[06.2010 - 10.2011] ANH20,GGH20..LHD |
82731-28050 |
US $149.76 |
||
|
82735
|
82735
82733-28190 Block, Driver Side Junction[06.2010 - 10.2011] ANH20,GGH20..LHD |
82733-28190 |
US $96.10 |
||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[04.2008 - 10.2011] ANH20,GGH20 |
84340-69075 |
from US $26.79 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[04.2008 - 10.2011] ANH20,GGH20 |
84345-51010 |
from US $3.49 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[04.2008 - 10.2011] ANH20,GGH20 |
84550-30080 |
from US $18.39 |
||
|
85940
|
85940
85940-58020
Relay Assy, Windshield Wiper
[06.2010 - 10.2011] ANH20,GGH20..LHD |
85940-58020 |
— | ||
|
89650
|
89650
89650-58030
Computer Assy, Power Steering
[06.2010 - 10.2011] ANH20,GGH20..LHD |
89650-58030 |
— | ||
|
89650
|
89650
89650-58060
Computer Assy, Power Steering
[10.2011 - 04.2012] ANH20,GGH20..LHD |
89650-58060 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-58061
Computer Assy, Power Steering
[10.2011 - 04.2012] ANH20,GGH20..LHD |
89650-58061 |
— | ||
|
89650
|
89650
89650-58061
Computer Assy, Power Steering
[05.2012 -] ANH20,GGH20..LHD |
89650-58061 |
— | ||
|
89940
|
89940
89940-58050
Computer Assy, Headlamp Swivel
[06.2010 - 10.2011] ANH20,GGH20..LHD |
89940-58050 |
— | ||
|
89940
|
89940
89940-58080
Computer Assy, Headlamp Swivel
[10.2011 -] ANH20..LHD;GGH20..GCC; GGH20..LHD..GEN TAIWAN SPEC; GGH20..LHD..GEN PHILIPPINES SPEC; GGH20..LHD..GEN RUSSIA SPEC |
89940-58080 |
— | ||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271558370
|
8271558370
82715-58370
Bracket,wiring Harness Clamp
|
82715-58370 |
— | ||
|
9015960444
|
9015960444
90159-60444 SCREW WWASHER |
90159-60444 |
from US $0.66 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.82 |
||
|
9155380622
|
9155380622
91553-80622 BOLT FLANGE |
91553-80622 |
from US $0.74 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380625
|
9167380625
91673-80625 New Genuine Part |
91673-80625 |
US $1.28 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
