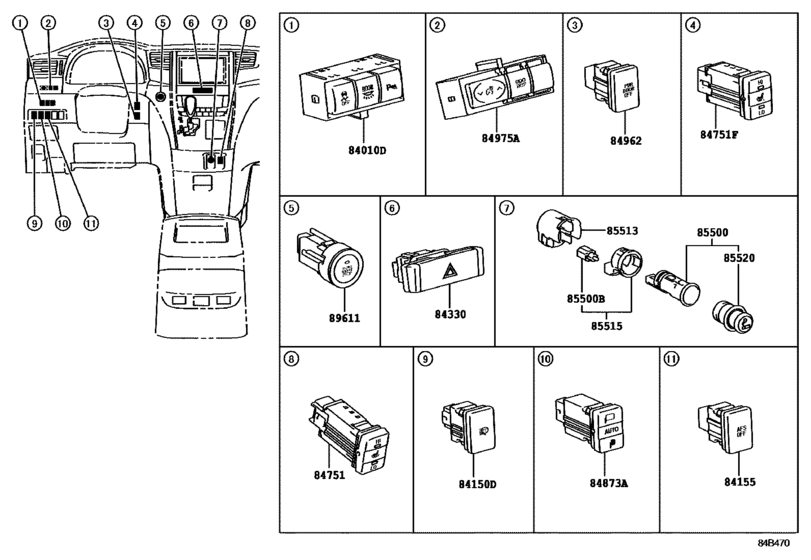

Switch & Relay & Computer ([05.2010 - 10.2011] INSTRUMENT PANEL (1005-1110)LHD) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2010 - 2015
- Sales region
- General
- Frame
- ANH20
- grade
- 350G
- ENGINE
- 2AZFE
- DESTINATION
- GCC
- Model
- Alphard II
- From
- 06.2010
- To
- 01.2015
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84010D
|
84010D
84010-58090 Control & Panel Assy, Integration[04.2008 - 10.2011] ANH20,GGH20 |
84010-58090 |
US $90.27 |
||
|
84010D
|
84010D
84010-58230 Control & Panel Assy, Integration[10.2011 -] ANH20,GGH20 |
84010-58230 |
US $82.99 |
||
|
84150D
|
84150D
84150-33050 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [06.2010 - 10.2011] ANH20,GGH20..LHD; ANH20,GGH20..LHD..GEN PHILIPPINES SPEC |
84150-33050 |
from US $39.75 |
||
| replacement | |||||
|
84150D
|
84150D
84150-33051 Switch Assy, Headlamp Cleaner[06.2010 - 10.2011] ANH20,GGH20..LHD; ANH20,GGH20..LHD..GEN PHILIPPINES SPEC |
84150-33051 |
from US $38.44 |
||
|
84150D
|
84150D
84150-47010 Switch Assy, Headlamp CleanerHEADLAMP CLEANER [10.2011 - 11.2014] ANH20,GGH20..LHD |
84150-47010 |
US $39.60 |
||
| replacement | |||||
|
84150D
|
84150D
84150-47011 Switch Assy, Headlamp Cleaner[10.2011 - 11.2014] ANH20,GGH20..LHD |
84150-47011 |
US $35.96 |
||
|
84150D
|
84150D
84150-47011 Switch Assy, Headlamp Cleaner[12.2014 - 01.2015] ANH20,GGH20..LHD |
84150-47011 |
US $35.96 |
||
|
84155
|
84155
84155-28010 Switch, Headlamp Swivel Main[04.2008 - 10.2011] ANH20,GGH20..4FC,6FC |
84155-28010 |
US $34.36 |
||
| replacement | |||||
|
84155
|
84155
84155-28011 Switch, Headlamp Swivel Main[04.2008 - 10.2011] ANH20,GGH20..4FC,6FC |
84155-28011 |
from US $43.51 |
||
|
84155
|
84155
84155-33020 Switch, Headlamp Swivel Main[10.2011 - 11.2014] ANH20..LHD;ATH20,GGH20 |
84155-33020 |
US $39.60 |
||
| replacement | |||||
|
84155
|
84155
84155-33021 Switch, Headlamp Swivel Main[10.2011 - 11.2014] ANH20..LHD;ATH20,GGH20 |
84155-33021 |
US $39.60 |
||
|
84155
|
84155
84155-33021 Switch, Headlamp Swivel Main[12.2014 - 01.2015] ANH20..LHD;ATH20,GGH20 |
84155-33021 |
US $39.60 |
||
|
84330
|
84330
84332-60280 Switch Assy, Hazard Warning Signal[06.2010 - 10.2011] ANH20,GGH20..LHD |
84332-60280 |
from US $47.76 |
||
|
84873A
|
84873A
84873-58020 Switch, Retractable Outer Mirror[04.2008 - 10.2011] ANH20,GGH20..07S..(350G,350S); GGH20..RHD..(350G,350S)..ALPHD BODY COLOR-MONO-TONE (BLACK META) |
84873-58020 |
US $51.51 |
||
|
84962
|
84962
84962-28010 Switch, Power Slide Door Main[04.2008 - 10.2011] ANH20,GGH20 |
84962-28010 |
US $34.36 |
||
| replacement | |||||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[04.2008 - 10.2011] ANH20,GGH20 |
84962-28011 |
US $46.66 |
||
|
84962
|
84962
84962-28011 Switch, Power Slide Door Main[12.2014 - 01.2015] ANH20,ATH20,GGH20 |
84962-28011 |
US $46.66 |
||
|
84975A
|
84975A
84975-58020 Trip & Rheostat Switch Assy[04.2008 - 10.2011] ANH20,GGH20 |
84975-58020 |
US $55.47 |
||
|
85500
|
85500
85500-28080 Lighter Assy, Cigarette[06.2010 - 10.2011] ANH20,GGH20..LHD |
85500-28080 |
US $38.30 |
||
|
85500B
|
85500B
90010-01022 Bulb, Key Cylinder Lamp[06.2010 - 10.2011] ANH20,GGH20..LHD 14V 1.4W,W(GREEN CAP) |
90010-01022 |
from US $2.65 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[06.2010 - 10.2011] ANH20,GGH20..LHD |
85513-28010 |
from US $2.57 |
||
|
85515
|
85515
85515-48010 Stay, Cigarette Lighter Bezel[06.2010 - 10.2011] ANH20,GGH20..LHD |
85515-48010 |
US $11.53 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[06.2010 - 10.2011] ANH20,GGH20..LHD |
85520-28010 |
from US $17.90 |
||
|
89611
|
89611
89611-52012 Switch, Push StartPUSH START [02.2010 - 06.2011] ANH20,GGH20 |
89611-52012 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[02.2010 - 06.2011] ANH20,GGH20 |
89611-52015 |
from US $162.45 |
||
|
89611
|
89611
89611-52013 Switch, Push Start[07.2011 - 10.2011] ANH20,GGH20 |
89611-52013 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[07.2011 - 10.2011] ANH20,GGH20 |
89611-52015 |
from US $162.45 |
||
|
89611
|
89611
89611-52014
Switch, Push Start
[03.2012 -] ANH20,GGH20 |
89611-52014 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52015 Switch, Push Start[03.2012 -] ANH20,GGH20 |
89611-52015 |
from US $162.45 |
||
