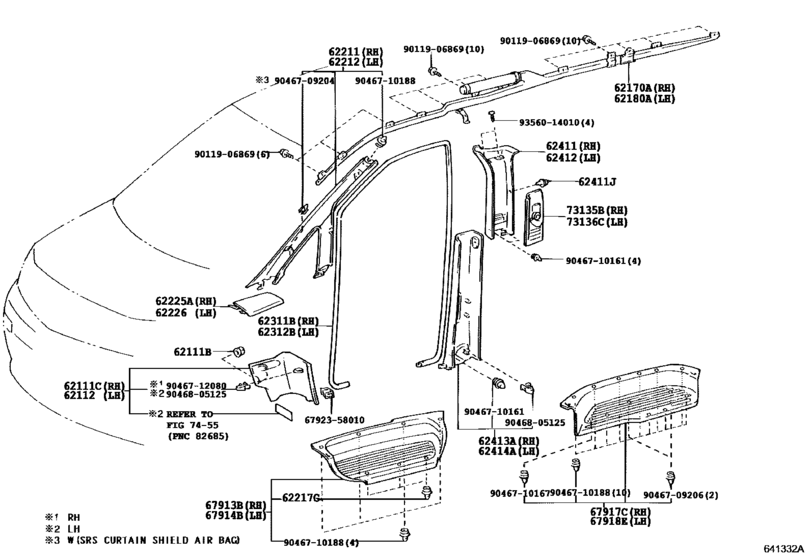

Inside Trim Board ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111B
|
62111B
90467-06193-B1 Clip(For Cowl Side Trim)[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
90467-06193-B1 |
US $2.18 |
||
|
62111C
|
62111C
62111-58010-B0 Board, Cowl Side Trim, Rh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
62111-58010-B0 |
US $54.16 |
||
|
62112
|
62112
62112-58010-B0 Board, Cowl Side Trim, Lh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
62112-58010-B0 |
US $49.62 |
||
|
62170A
|
62170A
62170-58010 Air Bag Assy, Curtain Shield, Rh[04.2005 -] MNH10 |
62170-58010 |
US $990.08 |
||
|
62180A
|
62180A
62180-58010 Air Bag Assy, Curtain Shield, Lh[04.2005 -] MNH10 |
62180-58010 |
US $990.08 |
||
|
62211
|
62211
62211-58030-B0 Garnish, Front Pillar, Rh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
62211-58030-B0 |
US $136.86 |
||
|
62212
|
62212
62212-58030-B0 Garnish, Front Pillar, Lh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
62212-58030-B0 |
US $136.86 |
||
|
62217G
|
62217G
62217-13010 Clip(For Rear Floor Mat Plate)[04.2005 -] MNH10 |
62217-13010 |
from US $1.15 |
||
|
62225A
|
62225A
62225-58010-B0 Garnish, Front Pillar, Lower Rh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
62225-58010-B0 |
US $38.29 |
||
|
62226
|
62226
62226-58010-B0 Garnish, Front Pillar, Lower Lh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
62226-58010-B0 |
US $38.29 |
||
|
62311B
|
62311B
62311-58011-B0 Weatherstrip, Front Door Opening Trim, Rh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
62311-58011-B0 |
US $136.86 |
||
|
62312B
|
62312B
62312-58011-B0 Weatherstrip, Front Door Opening Trim, Lh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
62312-58011-B0 |
US $136.86 |
||
|
62411
|
62411
62411-58010-B0 Garnish, Center Pillar, Rh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
62411-58010-B0 |
US $84.45 |
||
|
62411J
|
62411J
90530-06009-B3 Fastener, Hook[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
90530-06009-B3 |
US $1.76 |
||
|
62412
|
62412
62412-58010-B0 Garnish, Center Pillar, Lh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
62412-58010-B0 |
US $84.45 |
||
|
62413A
|
62413A
62413-58010-B0 Garnish, Center Pillar, Lower Rh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
62413-58010-B0 |
US $129.58 |
||
|
62414A
|
62414A
62414-58010-B0 Garnish, Center Pillar, Lower Lh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
62414-58010-B0 |
US $129.58 |
||
|
67913B
|
67913B
67910-58010-B0 Plate, Front Door Scuff, Rh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
67910-58010-B0 |
US $171.81 |
||
|
67914B
|
67914B
67920-58010-B0 Plate, Front Door Scuff, Lh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
67920-58010-B0 |
US $171.81 |
||
|
67917C
|
67917C
67907-58010-B0 Plate, Rear Door Scuff, Rh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
67907-58010-B0 |
US $186.37 |
||
|
67918E
|
67918E
67907-58030-B0 Plate, Rear Door Scuff, Lh[04.2005 - 04.2008] MNH10..MS STONE,TRIM1# |
67907-58030-B0 |
US $186.37 |
||
|
73135B
|
73135B
73023-30010-B2 Plate Sub-Assy, Front Shoulder Belt Anchor, Rh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
73023-30010-B2 |
US $20.97 |
||
|
73136C
|
73136C
73024-30010-B2 Plate Sub-Assy, Front Shoulder Belt Anchor, Lh[04.2005 - 04.2008] MNH10..MS LT.GRAY,TRIM1# |
73024-30010-B2 |
US $18.05 |
||
|
6792358010
|
6792358010
67923-58010 Cushion, Front Door Stiffener, No.1 |
67923-58010 |
US $2.04 |
||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $0.96 |
||
|
9046709204
|
9046709204
90467-09204 Clip(For Front Body Pillar Garnish) |
90467-09204 |
from US $0.88 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.49 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9046710167
|
9046710167
90467-10167 Clip(For Rear Floor Finish Plate) |
90467-10167 |
from US $1.01 |
||
|
9046710188
|
9046710188
90467-10188 Clip(For Deck Boad) |
90467-10188 |
from US $1.28 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9046805125
|
9046805125
90468-05125 Clip (For Roof Side Inner Garnish) |
90468-05125 |
US $1.44 |
||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $0.96 |
