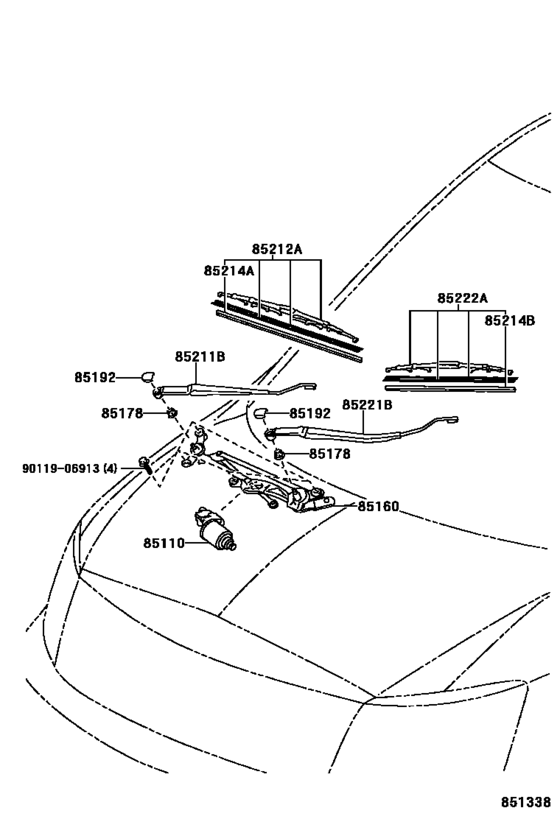

Windshield Wiper ([12.2003 - ] (0312- )) Diagram Toyota ALPHARD/ VELLFIRE
- Year
- 2005 - 2008
- Sales region
- General
- Frame
- MNH10
- grade
- MS
- ENGINE
- 1MZFE
- DESTINATION
- GEN
- Model
- Alphard I
- From
- 04.2005
- To
- 04.2008
- Gear Shift Type
- 5FC
- Seating Capacity
- 07S
- Vehicle Model
- Alphard
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-58010 Motor Assy, Windshield Wiper[04.2005 -] MNH10 |
85110-58010 |
US $375.65 |
||
|
85160
|
85160
85150-58010 Link Assy, Windshield Wiper[04.2005 -] MNH10 |
85150-58010 |
US $124.32 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[04.2005 -] MNH10 |
90179-10223 |
US $1.60 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[04.2005 -] MNH10 |
85292-13010 |
from US $4 |
||
|
85211B
|
85211B
85211-58010 Arm, Front Wiper, Rh[04.2005 -] MNH10 |
85211-58010 |
US $85.84 |
||
|
85212A
|
85212A
85212-58020 Blade, Fr Wiper, Rh[04.2005 -] MNH10 |
85212-58020 |
US $62.46 |
||
| replacement | |||||
|
85212A
|
85212A
85212-68010 Blade, Fr Wiper, Rh[04.2005 -] MNH10 |
85212-68010 |
US $65.21 |
||
|
85214A
|
85214A
85214-44130 Rubber, Wiper, Rh[04.2005 - 07.2005] MNH10 |
85214-44130 |
US $14.41 |
||
| replacement | |||||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[04.2005 - 07.2005] MNH10 |
85214-44140 |
from US $14.22 |
||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[07.2005 -] MNH10 |
85214-44140 |
from US $14.22 |
||
|
85214B
|
85214B
85214-50060
Rubber, Wiper, Lh
[07.2005 - 06.2006] MNH10 |
85214-50060 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[07.2005 - 06.2006] MNH10 |
85214-50061 |
from US $8.50 |
||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[07.2006 -] MNH10 |
85214-50061 |
from US $8.50 |
||
|
85214B
|
85214B
85214-50130
Rubber, Wiper, Lh
[04.2005 - 07.2005] MNH10 |
85214-50130 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[04.2005 - 07.2005] MNH10 |
85214-50061 |
from US $8.50 |
||
|
85221B
|
85221B
85221-58010 Arm, Front Wiper, Lh[04.2005 -] MNH10 |
85221-58010 |
US $103.60 |
||
|
85222A
|
85222A
85222-58020 Blade, Fr Wiper, Lh[04.2005 - 06.2006] MNH10 |
85222-58020 |
US $26.35 |
||
| replacement | |||||
|
85222A
|
85222A
85222-58021 Blade, Fr Wiper, Rh[04.2005 - 06.2006] MNH10 |
85222-58021 |
US $24.93 |
||
|
85222A
|
85222A
85222-58021 Blade, Fr Wiper, Rh[07.2006 -] MNH10 |
85222-58021 |
US $24.93 |
||
|
9011906913
|
9011906913
90119-06913 New Genuine Part |
90119-06913 |
US $6.33 |
||
