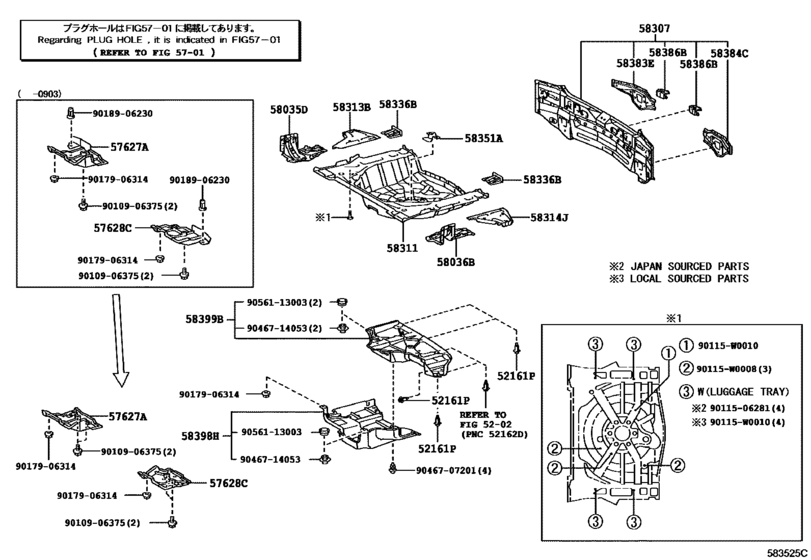

Floor Pan & Lower Back Panel ([06.2007 - ] REAR FLOOR PANEL (0706- )ADE150) Diagram Toyota AURIS/ COROLLA
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ADE150
- grade
- RS
- ENGINE
- 1ADFTV
- Model
- AURIS/ AURIS Hybrid
- From
- 06.2007
- To
- 01.2010
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161P
|
52161P
52161-02030 Piece, Rear BumperREAR BUMPER [06.2007 - 03.2009] ADE150 (L) |
52161-02030 |
US $1.79 |
||
| replacement | |||||
|
52161P
|
52161P
52161-16010 Clip[06.2007 - 03.2009] ADE150 (L) |
52161-16010 |
from US $1.68 |
||
|
52161P
|
52161P
52161-16010 Clip[06.2007 - 03.2009] ADE150 (J) |
52161-16010 |
from US $1.68 |
||
|
57627A
|
57627A
57627-02010
Cover, Rear Floor Side Member, Rh
[06.2007 - 03.2009] ADE150 |
57627-02010 |
— | ||
|
57627A
|
57627A
57627-02040
Cover, Rear Floor Side Member, Rh
[03.2009 - 01.2010] ADE150 |
57627-02040 |
— | ||
|
57628C
|
57628C
57628-02020
Cover, Rear Floor Side Member, Lh
[06.2007 - 03.2009] ADE150 |
57628-02020 |
— | ||
|
57628C
|
57628C
57628-02050
Cover, Rear Floor Side Member, Lh
[03.2009 - 01.2010] ADE150 |
57628-02050 |
— | ||
|
58035D
|
58035D
58305-02010 Panel Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [06.2007 - 03.2009] ADE150 |
58305-02010 |
US $42.81 |
||
|
58036B
|
58036B
58306-02010 Panel Sub-Assy, Rear Floor Side, LhREAR FLOOR SIDE, LH [06.2007 - 03.2009] ADE150 |
58306-02010 |
US $42.81 |
||
|
58307
|
58307
58307-02090
Panel Sub-Assy, Body Lower Back
[06.2007 - 08.2008] ADE150,ZRE15#,ZZE150 |
58307-02090 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-02280
Panel Sub-Assy, Body Lower Back
[06.2007 - 08.2008] ADE150,ZRE15#,ZZE150 |
58307-02280 |
— | ||
|
58307
|
58307
58307-02091
Panel Sub-Assy, Body Lower Back
[09.2008 - 03.2009] ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
58307-02091 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-02280
Panel Sub-Assy, Body Lower Back
[09.2008 - 03.2009] ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
58307-02280 |
— | ||
|
58307
|
58307
58307-02270
Panel Sub-Assy, Body Lower Back
[04.2009 - 01.2010] ZRE151..RS,RT;ADE150,NRE150,ZRE152 |
58307-02270 |
— | ||
| replacement | |||||
|
58307
|
58307
58307-02280
Panel Sub-Assy, Body Lower Back
[04.2009 - 01.2010] ZRE151..RS,RT;ADE150,NRE150,ZRE152 |
58307-02280 |
— | ||
|
58311
|
58311
58311-02130
Pan, Rear Floor
[06.2007 - 03.2009] ADE150 |
58311-02130 |
— | ||
| replacements | |||||
|
58311
|
58311
58311-02261
Pan, Rear Floor
[06.2007 - 03.2009] ADE150 |
58311-02261 |
— | ||
|
58311
|
58311
90950-06108 COVER HOLE[06.2007 - 03.2009] ADE150 |
90950-06108 |
from US $0.80 |
||
|
58313B
|
58313B
58313-02050
Panel, Rear Floor Side, Rh
[06.2007 - 03.2009] ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
58313-02050 |
— | ||
|
58313B
|
58313B
58313-02121
Panel, Rear Floor Side, Rh
[09.2009 - 01.2010] ZRE151..RS,RT;ADE150,NRE150,ZRE152 |
58313-02121 |
— | ||
|
58314J
|
58314J
58314-02050
Panel, Rear Floor Side, Lh
[06.2007 - 03.2009] ZRE151..5F,5FS;ADE150,ZRE152,ZZE150 |
58314-02050 |
— | ||
|
58336B
|
58336B
58336-02050 Reinforcement, Rear Floor PanREAR FLOOR PAN [06.2007 - 03.2009] ADE150 |
58336-02050 |
US $11.07 |
||
|
58351A
|
58351A
58351-02020
Bracket, Spare Wheel Carrier
[06.2007 - 03.2009] ADE150 |
58351-02020 |
— | ||
|
58383E
|
58383E
58383-02010
Reinforcement, Body Lower Back, No.2 Rh
[06.2007 - 03.2009] ADE150 |
58383-02010 |
— | ||
|
58384C
|
58384C
58384-02060
Reinforcement, Body Lower Back, No.2 Lh
[06.2007 - 03.2009] ADE150 |
58384-02060 |
— | ||
|
58386B
|
58386B
58386-02010 Bracket, Rear Bumper Cover, No.2REAR BUMPER COVER, NO.2 [06.2007 - 03.2009] ADE150 |
58386-02010 |
US $5.97 |
||
|
58398H
|
58398H
58398-02030
Cover, Floor Under, No.1
[06.2007 - 03.2009] ADE150 |
58398-02030 |
— | ||
|
58399B
|
58399B
58399-02010
Cover, Floor Under, No.2
[06.2007 - 03.2009] ADE150 |
58399-02010 |
— | ||
|
90115W0008
|
90115W0008
90115-W0008 Bolt, Weld(For Front Floor Pan, Lh)WELD(FOR FRONT FLOOR PAN, LH) |
90115-W0008 |
US $0.73 |
||
|
90115W0010
|
90115W0010
90115-W0010 Bolt, Weld(For Front Floor Panel, Center)WELD(FOR FRONT FLOOR PANEL, CENTER) |
90115-W0010 |
US $0.73 |
||
|
9010906375
|
9010906375
90109-06375 BOLT |
90109-06375 |
from US $0.94 |
||
|
9011506281
|
9011506281
90115-06281 New Genuine Part |
90115-06281 |
US $1.12 |
||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.82 |
||
|
9018906230
|
9018906230
90189-06230 GROMMET SCREW |
90189-06230 |
from US $0.80 |
||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $1.13 |
||
|
9046714053
|
9046714053
90467-14053 Clip, No.1(For Floor Under Cover) |
90467-14053 |
US $1.60 |
||
|
9056113003
|
9056113003
90561-13003 Clip, No.4(For Floor Under Cover) |
90561-13003 |
US $1.12 |
||
