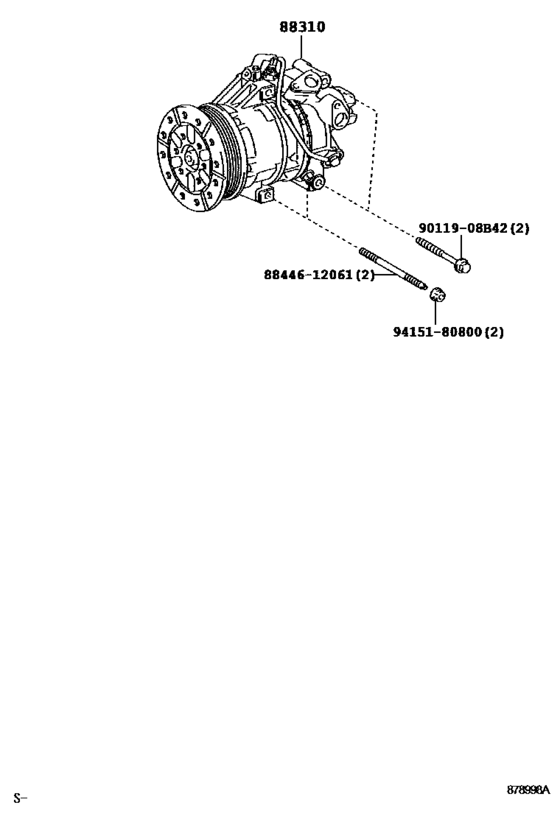

Heating & Air Conditioning - Compressor ([10.2006 - ] (0610- )NDE150) Diagram Toyota AURIS/ COROLLA
- Year
- 2008 - 2009
- Sales region
- Europe
- Frame
- NDE150
- grade
- TERRA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- AURIS/ COROLLA
- From
- 12.2008
- To
- 10.2009
- Gear Shift Type
- 6FS
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-1A820
Compressor Assy, W/pulley
[12.2008 - 10.2009] NDE150..SOL; NDE150..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER |
88310-1A820 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8844612061
|
8844612061
88446-12061
Bolt, Compressor, No.1
|
88446-12061 |
— | ||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
