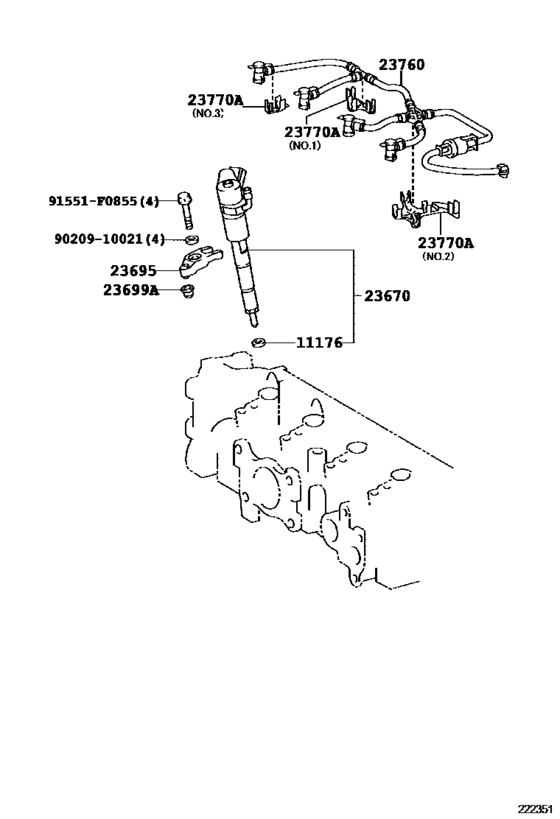

Injection Nozzle ([12.2008 - ] (0812- )1NDTV) Diagram Toyota AURIS/ COROLLA
- Year
- 2008 - 2009
- Sales region
- Europe
- Frame
- NDE150
- grade
- TERRA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- AURIS/ COROLLA
- From
- 12.2008
- To
- 10.2009
- Gear Shift Type
- 6FS
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
11176-33010 Seat, Injection Nozzle[12.2008 - 10.2009] 1NDTV..NDE150 |
11176-33010 |
from US $3.06 |
||
|
23670
|
23670
23670-39325 Injector Assy[12.2008 - 10.2009] 1NDTV..NDE150 |
23670-39325 |
US $896.90 |
||
|
23695
|
23695
23695-33020
Clamp, Nozzle Holder, No.1
[12.2008 - 10.2009] 1NDTV..NDE150 |
23695-33020 |
— | ||
|
23699A
|
23699A
23699-33020 Seat, Nozzle Holder ClampNOZZLE HOLDER CLAMP [12.2008 - 10.2009] 1NDTV..NDE150 |
23699-33020 |
US $2.62 |
||
|
23760
|
23760
23760-33030 Pipe Assy, Nozzle LeakageNOZZLE LEAKAGE [12.2008 - 10.2009] 1NDTV..NDE150 |
23760-33030 |
from US $57.06 |
||
|
23770A
|
23770A
23841-33030 Clamp Or Clip(For Nozzle Leakage Pipe Set)[12.2008 - 10.2009] 1NDTV..NDE150 NO.1 |
23841-33030 |
US $2.62 |
||
|
23770A
|
23770A
23841-33040 Clamp Or Clip(For Nozzle Leakage Pipe Set)[12.2008 - 10.2009] 1NDTV..NDE150 NO.2 |
23841-33040 |
US $3.64 |
||
|
23770A
|
23770A
23841-33050 Clamp Or Clip(For Nozzle Leakage Pipe Set)[12.2008 - 10.2009] 1NDTV..NDE150 NO.3 |
23841-33050 |
US $1.60 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.98 |
||
|
9020910021
|
9020910021
90209-10021 WASHER |
90209-10021 |
from US $0.72 |
