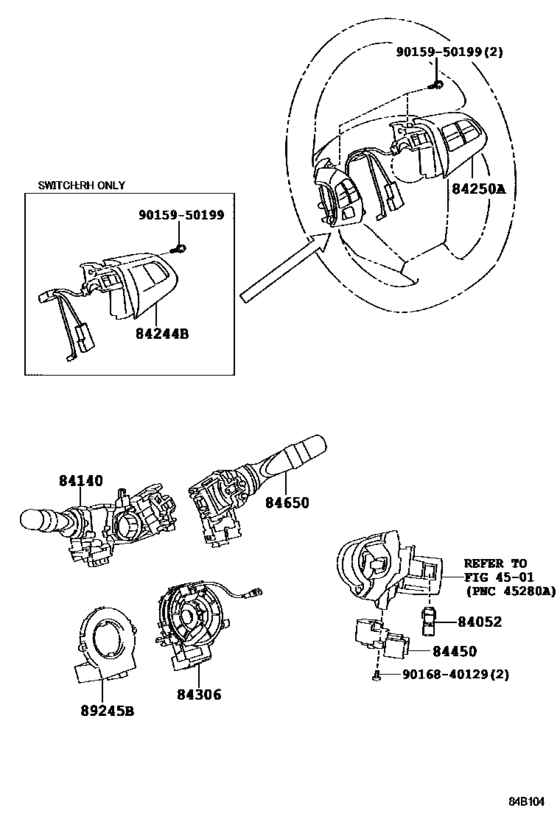

Switch & Relay & Computer ([10.2009 - ] STEERING (0910- )) Diagram Toyota AURIS/ COROLLA
- Year
- 2008 - 2012
- Sales region
- Europe
- Frame
- NDE150
- grade
- TERRA
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- AURIS/ COROLLA
- From
- 12.2008
- To
- 08.2012
- Gear Shift Type
- 6F
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[09.2008 - 10.2009] NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-12611 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2008 - 10.2009] NDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM) |
84140-12611 |
US $104.83 |
||
|
84140
|
84140
84140-12621 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [09.2008 - 10.2009] NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM); NDE150..(6F,6FS)..TERRA;ADE150,NRE150,ZRE15#..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM) FRONT FOG LAMP-MOP |
84140-12621 |
US $116.48 |
||
|
84140
|
84140
84140-12701
Switch Assy, Headlamp Dimmer
[10.2009 -] NDE150,ZRE151..TERRA |
84140-12701 |
— | ||
|
84140
|
84140
84140-12711
Switch Assy, Headlamp Dimmer
[10.2009 - 12.2010] NDE150 FRONT FOG LAMP-MOP |
84140-12711 |
— | ||
|
84244B
|
84244B
84244-12030 Switch, Steering Pad, RhSTEERING PAD, RH [10.2009 - 08.2012] NDE150,ZRE151..TERRA |
84244-12030 |
US $147.06 |
||
|
84250A
|
84250A
84250-12220 Switch Assy, Steering PadSTEERING PAD [10.2009 - 12.2010] NDE150,ZRE151..TERRA STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY&AUDIO-CD RADIO 4SPEAKER; ZRE151..TERRA STEERING SWITCH-AUDIO,MULTI INFORMATION DISPLAY&AUDIO-CD RADIO 6SPEAKER |
84250-12220 |
US $157.25 |
||
|
84306
|
84306
84306-12100 Cable Sub-Assy, Spiral[09.2008 - 10.2009] NDE150..6F..TERRA;ADE150,NRE150,ZRE15#..6F..TERRA..(DCRL,HTWC,HTWVM) |
84306-12100 |
from US $174.45 |
||
|
84306
|
84306
84306-12110 Cable Sub-Assy, Spiral[10.2009 -] NDE150,ZRE151 |
84306-12110 |
from US $168.44 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[09.2008 - 10.2009] NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-48111
Switch Assy, Windshield Wiper
[09.2008 - 10.2009] NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
84652-48111 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-47090 Switch Assy, Windshield Wiper[09.2008 - 10.2009] NDE150..6F,6FS;ADE150,NRE150,ZRE15#..(6F,6FS)..(DCRL,HTWC,HTWVM) |
84652-47090 |
US $94.35 |
||
|
89245B
|
89245B
89245-33040 Sensor, Steering[12.2008 - 10.2009] NDE150..6F..TERRA;ADE150..TERRA..DCRL VSC-WITH; NDE150;ADE150..DCRL VSC-WITH(W/CUT OFF SWITCH) |
89245-33040 |
US $295.84 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $0.96 |
||
