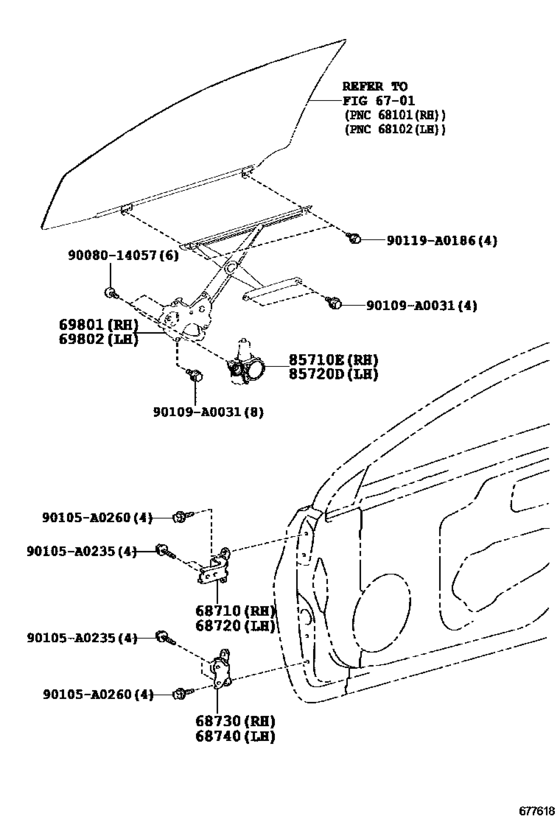

Front Door Window Regulator & Hinge ([10.2012 - ] (1210- )) Diagram Toyota AVALON
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- AVX40
- grade
- LIMD
- body
- SED
- ENGINE
- 2ARFXE
- DESTINATION
- USA
- From
- 11.2012
- Gear Shift Type
- CVFC
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-02020 Hinge Assy, Front Door, Upper Rh[10.2012 - 10.2015] AVX40,GSX40 |
68710-02020 |
US $38.98 |
||
|
68720
|
68720
68720-02020 Hinge Assy, Front Door, Upper Lh[10.2012 - 10.2015] AVX40,GSX40 |
68720-02020 |
US $105.71 |
||
|
68730
|
68730
68730-02080
Hinge Assy, Front Door, Lower Rh
[10.2012 - 10.2015] AVX40,GSX40 |
68730-02080 |
— | ||
|
68740
|
68740
68740-02080
Hinge Assy, Front Door, Lower Lh
[10.2012 - 10.2015] AVX40,GSX40 |
68740-02080 |
— | ||
|
69801
|
69801
69801-07030
Regulator Sub-Assy, Front Door Window, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
69801-07030 |
— | ||
|
69802
|
69802
69802-07020
Regulator Sub-Assy, Front Door Window, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
69802-07020 |
— | ||
|
85710E
|
85710E
85710-0E040
Motor Assy, Power Window Regulator, Rh
[10.2012 - 10.2015] AVX40,GSX40 |
85710-0E040 |
— | ||
|
85720D
|
85720D
85720-0E060
Motor Assy, Power Window Regulator, Lh
[10.2012 - 10.2015] AVX40,GSX40 |
85720-0E060 |
— | ||
|
90105A0235
|
90105A0235
90105-A0235
New Genuine Part
|
90105-A0235 |
— | ||
|
90105A0260
|
90105A0260
90105-A0260
New Genuine Part
|
90105-A0260 |
— | ||
|
90109A0031
|
90109A0031
90109-A0031 New Genuine Part |
90109-A0031 |
US $0.73 |
||
|
90119A0186
|
90119A0186
90119-A0186
New Genuine Part
|
90119-A0186 |
— | ||
|
9008014057
|
9008014057
90080-14057
New Genuine Part
|
90080-14057 |
— |
