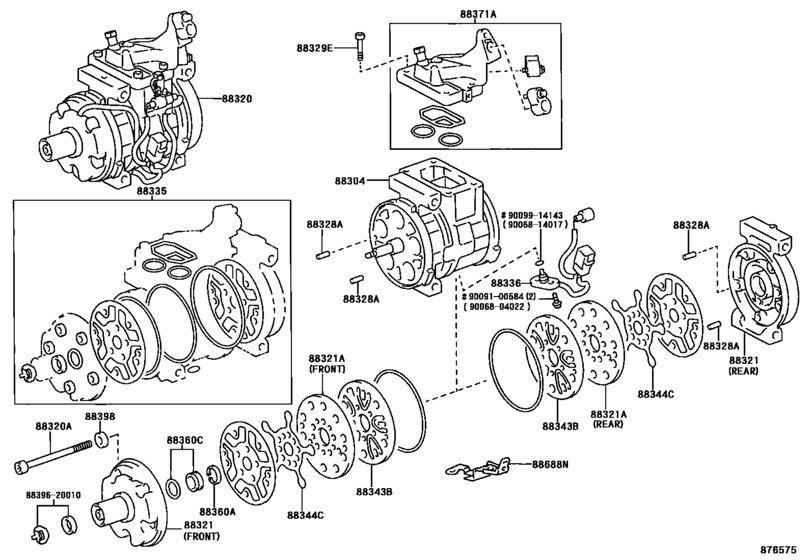

Heating & Air Conditioning - Compressor ([09.2003 - ] (0309- )) Diagram Toyota AVALON
- Year
- 2000 - 2005
- Sales region
- General
- Frame
- MCX10
- grade
- CONQ
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 04.2000
- To
- 06.2005
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-33010
Cylinder Sub-Assy, Cooler Compressor
[09.2003 -] MCX10 |
88304-33010 |
— | ||
|
88320
|
88320
88320-33120
Compressor Assy, Cooler
[09.2003 -] MCX10 |
88320-33120 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-33H90 Compressor Assy, Cooler[09.2003 -] MCX10 |
88320-33H90 |
US $753.97 |
||
|
88320A
|
88320A
90099-04958
Bolt, Through
[09.2003 -] MCX10 |
90099-04958 |
— | ||
|
88321
|
88321
88321-32010
Head, Cooler Compressor Cylinder
[09.2003 -] MCX10 FRONT |
88321-32010 |
— | ||
|
88321
|
88321
88322-32050
Head, Cooler Compressor Cylinder
[09.2003 -] MCX10 REAR |
88322-32050 |
— | ||
|
88321A
|
88321A
88341-22010
Plate Sub-Assy, Valve
[09.2003 -] MCX10 FRONT |
88341-22010 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[09.2003 -] MCX10 REAR |
88342-22010 |
— | ||
|
88328A
|
88328A
90099-08058
Pin, Cylinder Block
[09.2003 -] MCX10 |
90099-08058 |
— | ||
|
88329E
|
88329E
90099-04924
Bolt, Service Valve
[09.2003 -] MCX10 |
90099-04924 |
— | ||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[09.2003 -] MCX10 |
88335-2B030 |
from US $37.85 |
||
|
88336
|
88336
88336-33110
Sensor, Compressor
[09.2003 -] MCX10 |
88336-33110 |
— | ||
|
88343B
|
88343B
88343-14020
Reed, Suction Valve
[09.2003 -] MCX10 |
88343-14020 |
— | ||
|
88344C
|
88344C
88344-22010
Reed, Discharge Valve
[09.2003 -] MCX10 |
88344-22010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[09.2003 -] MCX10 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[09.2003 -] MCX10 |
88360-2B020 |
US $68.84 |
||
|
88371A
|
88371A
88371-33040
Valve, Suction
[09.2003 -] MCX10 |
88371-33040 |
— | ||
|
88398
|
88398
88398-12010
Packing, Compressor
[09.2003 -] MCX10 |
88398-12010 |
— | ||
|
88688N
|
88688N
88688-22180
Bracket, Cooler
[09.2003 -] MCX10 |
88688-22180 |
— | ||
|
8839620010
|
8839620010
88396-20010
New Genuine Part
|
88396-20010 |
— | ||
|
9006804022
|
9006804022
90068-04022
New Genuine Part
|
90068-04022 |
— | ||
|
9006814017
|
9006814017
90068-14017 New Genuine Part |
90068-14017 |
US $4.95 |
||
|
9009100584
|
9009100584
90091-00584
New Genuine Part
|
90091-00584 |
— | ||
|
9009914143
|
9009914143
90099-14143 New Genuine Part |
90099-14143 |
US $3.20 |
||
