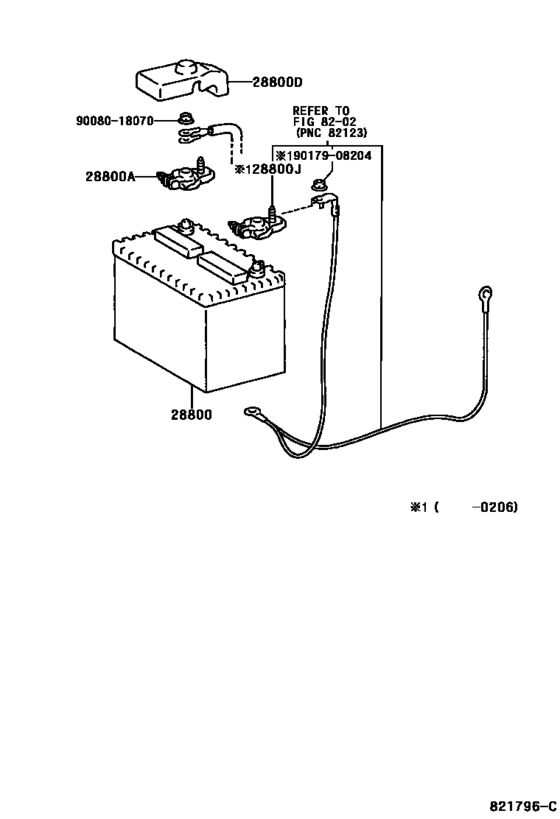

Battery & Battery Cable ([08.1999 - ] (9908- )) Diagram Toyota AVALON
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- MCX20
- grade
- XLS
- ENGINE
- 1MZFE
- From
- 08.1999
- To
- 01.2005
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-02010
Battery
[11.2002 -] 1MZFE..MCX20 55D23L,DELPHI |
28800-02010 |
— | ||
|
28800
|
28800
28800-AA010
Battery
[08.1999 - 06.2002] 1MZFE..MCX20 55D23L,GNB |
28800-AA010 |
— | ||
|
28800A
|
28800A
90982-05035 Terminal, Battery Positive[08.1999 - 06.2002] 1MZFE..MCX20 |
90982-05035 |
from US $13.34 |
||
|
28800A
|
28800A
90982-05054 Terminal, Battery Positive[06.2002 -] 1MZFE..MCX20 |
90982-05054 |
from US $13.60 |
||
|
28800D
|
28800D
82821-08010
Cover, Connector(For Battery Terminal)
[08.1999 - 06.2002] 1MZFE..MCX20 |
82821-08010 |
— | ||
|
28800J
|
28800J
90982-06022 Terminal, Battery Negative[08.1999 - 06.2002] 1MZFE..MCX20 |
90982-06022 |
from US $6.24 |
||
|
9008018070
|
9008018070
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
