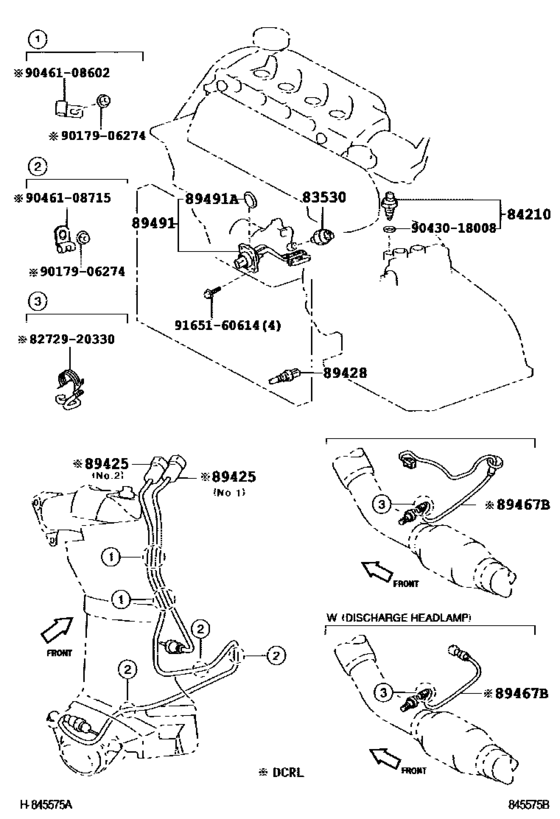

Switch & Relay & Computer ([03.2003 - 04.2006] ENGINE & TRANSMISSION (0303-0604)CDT250) Diagram Toyota AVENSIS
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- CDT250
- grade
- TEC
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 09.2003
- To
- 11.2004
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[03.2003 - 01.2004] CDT250..DCRL |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[01.2003 - 04.2006] ADT251,AZT250,CDT250,ZZT25#..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[01.2003 - 04.2006] ADT251,AZT250,CDT250,ZZT25#..MTM |
84210-52050 |
from US $20.67 |
||
|
89425
|
89425
89425-20340
Sensor, Exhaust Gas Temperature
[09.2003 - 11.2004] CDT250..DCRL NO.1 |
89425-20340 |
— | ||
|
89425
|
89425
89425-20350
Sensor, Exhaust Gas Temperature
[09.2003 - 11.2004] CDT250..DCRL NO.2 |
89425-20350 |
— | ||
|
89428
|
89428
89428-20110 Switch, Temperature Detect, No.2[03.2003 - 04.2006] CDT250 |
89428-20110 |
from US $82.45 |
||
|
89467B
|
89467B
89467-20040
Sensor, Air Fuel Ratio
[09.2003 - 11.2004] CDT250..DCRL |
89467-20040 |
— | ||
|
89467B
|
89467B
89467-20050
Sensor, Air Fuel Ratio
[09.2003 - 11.2004] CDT250..DCRL HEAD LAMP-DISCHARGE |
89467-20050 |
— | ||
|
89491
|
89491
89491-44020 Sensor, Engine Oil LevelENGINE OIL LEVEL [03.2003 - 04.2006] CDT250 |
89491-44020 |
US $329.06 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[03.2003 - 04.2006] ADT251,AZT251,CDT250 |
89493-60010 |
from US $2.24 |
||
|
8272920330
|
8272920330
82729-20330 New Genuine Part |
82729-20330 |
US $4.95 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9046108602
|
9046108602
90461-08602 New Genuine Part |
90461-08602 |
US $2.77 |
||
|
9046108715
|
9046108715
90461-08715 Clamp, Brake Tube, No.6 |
90461-08715 |
US $3.04 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
