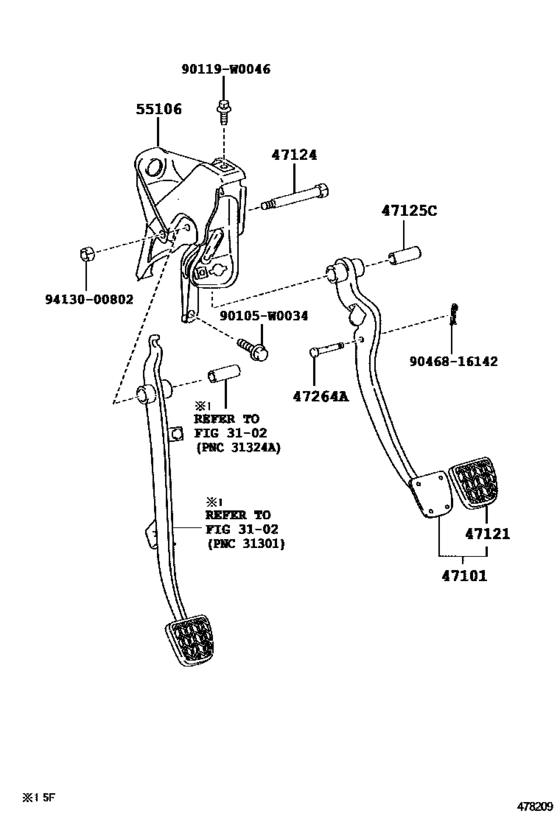

Brake Pedal & Bracket ([02.2005 - ] (0502- )LHD) Diagram Toyota AYGO
- Year
- 2005 - 2014
- Sales region
- Europe
- Frame
- KGB10
- grade
- LEDIN
- ENGINE
- 1KRFE
- TRANSMISSION
- MTM
- From
- 02.2005
- To
- 06.2014
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-0H010
Pedal Sub-Assy, Brake
[02.2005 - 12.2008] KGB10,WNB10..LHD |
47101-0H010 |
— | ||
|
47121
|
47121
31321-0H010
Pad, Clutch Pedal
[02.2005 - 12.2008] KGB10,WNB10 |
31321-0H010 |
— | ||
|
47124
|
47124
47124-0H010
Shaft, Brake Pedal
[12.2008 - 02.2012] KGB10..LHD..5F |
47124-0H010 |
— | ||
|
47125C
|
47125C
47144-0H010
Collar(For Brake Pedal Bracket)
[02.2005 - 12.2008] KGB10,WNB10..LHD |
47144-0H010 |
— | ||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[02.2005 - 12.2008] KGB10,WNB10 |
90249-08051 |
US $2.72 |
||
|
55106
|
55106
55106-0H011
Support Sub-Assy, Brake Pedal
[02.2005 - 12.2008] KGB10,WNB10..LHD..5F |
55106-0H011 |
— | ||
|
55106
|
55106
55106-0H050
Support Sub-Assy, Brake Pedal
[12.2008 - 02.2012] KGB10..LHD..5F |
55106-0H050 |
— | ||
|
55106
|
55106
55106-0H051
Support Sub-Assy, Brake Pedal
[04.2013 -] KGB10..LHD..5F |
55106-0H051 |
— | ||
|
90105W0034
|
90105W0034
90105-W0034
New Genuine Part
|
90105-W0034 |
— | ||
|
90119W0046
|
90119W0046
90119-W0046 New Genuine Part |
90119-W0046 |
US $2.08 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
