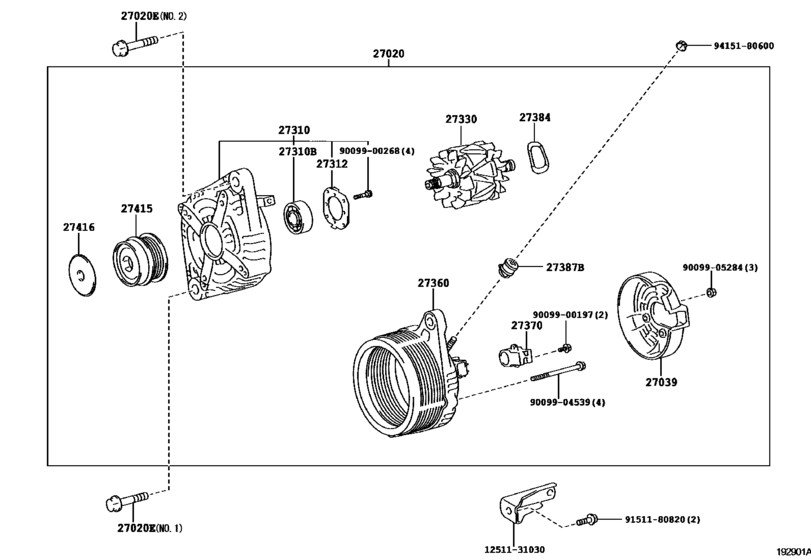

Alternator ([12.2006 - ] 12V 100A (0612- )2GRFE) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-31091 Alternator Assy[08.2007 - 09.2009] 2GRFE..GRE156 １２Ｖ １００Ａ |
27060-31091 |
US $1,514.24 |
||
| replacement | |||||
|
27020
|
27020
27060-31092 Alternator Assy[08.2007 - 09.2009] 2GRFE..GRE156 １２Ｖ １００Ａ |
27060-31092 |
US $1,514.24 |
||
|
27020
|
27020
27060-31092 Alternator Assy[10.2009 - 12.2009] 2GRFE..GRE156 １２Ｖ １００Ａ |
27060-31092 |
US $1,514.24 |
||
|
27020E
|
27020E
91552-81040 Bolt(For Alternator)[08.2007 - 12.2009] 2GRFE..GRE156 ＮＯ．１ |
91552-81040 |
US $1.92 |
||
|
27020E
|
27020E
91552-81070 Bolt(For Alternator)[08.2007 - 12.2009] 2GRFE..GRE156 ＮＯ．２ |
91552-81070 |
from US $1.27 |
||
|
27039
|
27039
27039-27060
Cover, Alternator Rear End
[12.2006 - 10.2009] 2GRFE..GRE156 |
27039-27060 |
— | ||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[10.2009 - 12.2009] 2GRFE..GRE156 |
27039-31390 |
— | ||
|
27310
|
27310
27310-31290
Frame Assy, Drive End, Alternator
[08.2007 - 12.2009] 2GRFE..GRE156 |
27310-31290 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[12.2006 - 12.2009] 2AZFE,2GRFE..AZE15#,GRE156 |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[12.2006 - 12.2009] 2AZFE,2GRFE..AZE15#,GRE156 |
27312-72100 |
US $3.88 |
||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[12.2006 - 12.2009] 2AZFE,2GRFE..AZE15#,GRE156 |
27330-30070 |
— | ||
|
27360
|
27360
27360-31290
Coil Assy, Alternator
[08.2007 - 12.2009] 2GRFE..GRE156 |
27360-31290 |
— | ||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[08.2007 - 12.2009] 2GRFE..GRE156 |
27370-31220 |
from US $20.61 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[12.2006 - 12.2009] 2AZFE,2GRFE..AZE15#,GRE156 |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[12.2006 - 12.2009] 2AZFE,2GRFE..AZE15#,GRE156 |
27387-20130 |
US $4.02 |
||
|
27415
|
27415
27415-0W010
Pulley, Alternator W/clutch
[08.2007 - 07.2009] 2GRFE..GRE156 |
27415-0W010 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[08.2007 - 07.2009] 2GRFE..GRE156 |
27415-0W131 |
from US $61.43 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[08.2007 - 07.2009] 2GRFE..GRE156 |
27416-0W050 |
from US $3.90 |
||
|
27415
|
27415
27415-0W130
Pulley, Alternator W/clutch
[07.2009 - 12.2009] 2GRFE..GRE156 |
27415-0W130 |
— | ||
| replacement | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[07.2009 - 12.2009] 2GRFE..GRE156 |
27415-0W131 |
from US $61.43 |
||
|
27416
|
27416
27416-0W010 Cap, Alternator Pulley[08.2007 - 07.2009] 2GRFE..GRE156 |
27416-0W010 |
US $7.16 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[07.2009 - 12.2009] 2GRFE..GRE156 |
27416-0W050 |
from US $3.90 |
||
|
1251131030
|
1251131030
12511-31030 Bracket, Alternator, No.1 |
12511-31030 |
US $12.38 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.44 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
