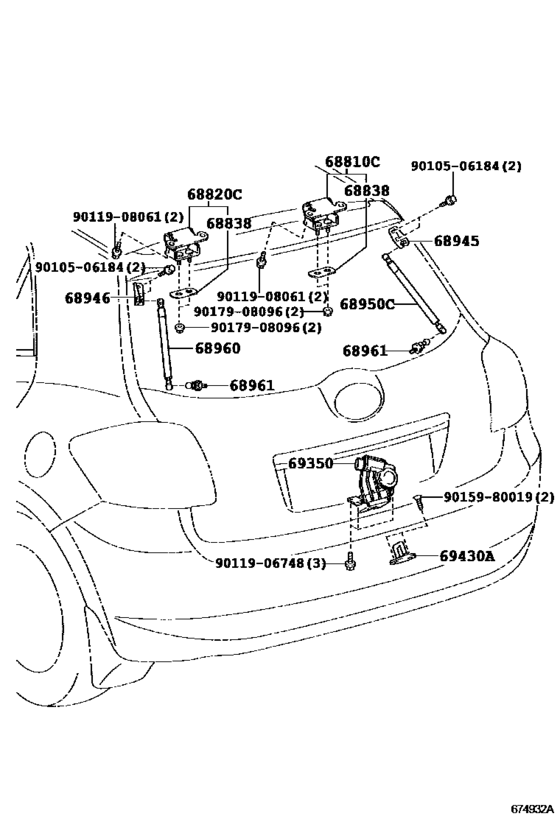

Back Door Lock & Handle ([12.2006 - ] (0612- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68810C
|
68810C
68810-21050
Hinge Assy, Back Door, Upper
[12.2006 - 12.2009] AZE15#,GRE156 |
68810-21050 |
— | ||
| replacement | |||||
|
68810C
|
68810C
68810-21051 Hinge Assy, Back Door, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68810-21051 |
from US $20.82 |
||
|
68820C
|
68820C
68810-21050
Hinge Assy, Back Door, Upper
[12.2006 - 12.2009] AZE15#,GRE156 |
68810-21050 |
— | ||
| replacement | |||||
|
68820C
|
68820C
68810-21051 Hinge Assy, Back Door, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68810-21051 |
from US $20.82 |
||
|
68838
|
68838
68838-44020 Pad, Back Door Hinge, No.1[12.2006 - 12.2009] AZE15#,GRE156 |
68838-44020 |
US $2.88 |
||
|
68945
|
68945
68945-13040 Bracket, Back Door Damper Stay, Upper Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68945-13040 |
US $8 |
||
|
68946
|
68946
68946-13040 Bracket, Back Door Damper Stay, Upper Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68946-13040 |
US $8 |
||
|
68950C
|
68950C
68950-12510 Stay Assy, Back Door, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68950-12510 |
US $91.73 |
||
|
68960
|
68960
68960-12330 Stay Assy, Back Door, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
68960-12330 |
US $91.73 |
||
|
68961
|
68961
68961-20051 Bolt, Hood Support, No.1[12.2006 - 12.2009] AZE15#,GRE156 |
68961-20051 |
from US $5.48 |
||
|
69350
|
69350
69350-28150
Lock Assy, Back Door
[12.2006 - 12.2009] AZE15#,GRE156 |
69350-28150 |
— | ||
| replacement | |||||
|
69350
|
69350
69350-28151 Lock Assy, Back Door[12.2006 - 12.2009] AZE15#,GRE156 |
69350-28151 |
from US $104.41 |
||
|
69430A
|
69430A
69430-20160 Striker Assy, Back Door Lower Lock[12.2006 - 12.2009] AZE15#,GRE156 |
69430-20160 |
US $19.61 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.76 |
||
|
9011908061
|
9011908061
90119-08061 BOLT |
90119-08061 |
US $1.12 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.60 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.42 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
