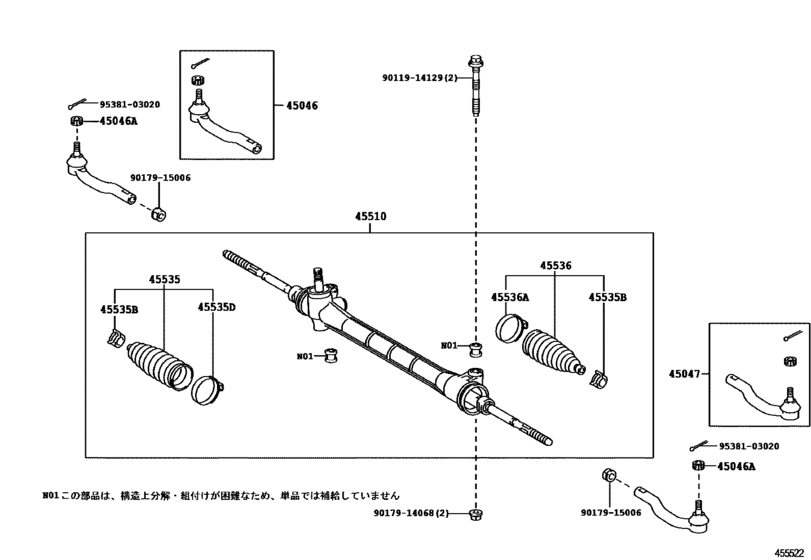

Front Steering Gear & Link ([12.2009 - ] (0912- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19415 End Sub-Assy, Tie Rod, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
45046-19415 |
US $67.79 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[12.2006 - 12.2009] AZE15#,GRE156 |
90171-12028 |
from US $1.38 |
||
|
45047
|
45047
45047-19215 End Sub-Assy, Tie Rod, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
45047-19215 |
from US $61.17 |
||
|
45510
|
45510
45510-12440
Gear Assy, Steering
[08.2007 - 12.2009] GRE156 |
45510-12440 |
— | ||
| replacement | |||||
|
45510
|
45510
45510-12441 Gear Assy, Steering[08.2007 - 12.2009] GRE156 |
45510-12441 |
US $532.90 |
||
|
45510
|
45510
45510-12441 Gear Assy, Steering[08.2011 -] GRE156; AZE156..STD Ｓ ＰＡＣＫＡＧＥ |
45510-12441 |
US $532.90 |
||
|
45535
|
45535
45535-49015 Boot, Steering Rack, No.1STEERING RACK, NO.1 [12.2006 - 12.2009] AZE15#,GRE156 |
45535-49015 |
from US $17.63 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[12.2006 - 12.2009] AZE15#,GRE156 |
90467-19021 |
from US $1.50 |
||
|
45535D
|
45535D
45538-47010 Clamp(For Steering Rack Boot)[12.2006 - 12.2009] AZE15#,GRE156 |
45538-47010 |
US $4.32 |
||
|
45536
|
45536
45535-49015 Boot, Steering Rack, No.1STEERING RACK, NO.1 [12.2006 - 12.2009] AZE15#,GRE156 |
45535-49015 |
from US $17.63 |
||
|
45536A
|
45536A
45538-47010 Clamp(For Steering Rack Boot)[12.2006 - 12.2009] AZE15#,GRE156 |
45538-47010 |
US $4.32 |
||
|
9011914129
|
9011914129
90119-14129 Bolt, Steering Rack Housing |
90119-14129 |
US $6.88 |
||
|
9017914068
|
9017914068
90179-14068 Nut(For Front Suspension Lower Arm) |
90179-14068 |
from US $1.19 |
||
|
9017915006
|
9017915006
90179-15006 Nut |
90179-15006 |
US $2.24 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
