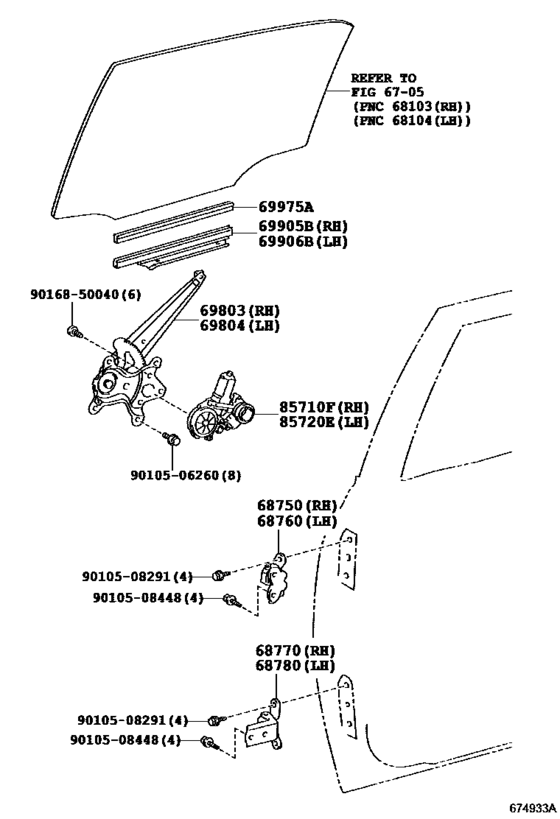

Rear Door Window Regulator & Hinge ([12.2006 - ] (0612- )) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-20121
Hinge Assy, Rear Door, Upper Rh
[12.2006 - 12.2009] AZE15#,GRE156 |
68750-20121 |
— | ||
| replacement | |||||
|
68750
|
68750
68750-20122 Hinge Assy, Rear Door, Upper Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68750-20122 |
from US $28.12 |
||
|
68760
|
68760
68760-20121
Hinge Assy, Rear Door, Upper Lh
[12.2006 - 12.2009] AZE15#,GRE156 |
68760-20121 |
— | ||
| replacement | |||||
|
68760
|
68760
68760-20122 Hinge Assy, Rear Door, Upper Lh[12.2006 - 12.2009] AZE15#,GRE156 |
68760-20122 |
from US $28.12 |
||
|
68770
|
68770
68770-52031 Hinge Assy, Rear Door, Lower Rh[12.2006 - 12.2009] AZE15#,GRE156 |
68770-52031 |
from US $28.12 |
||
|
68780
|
68780
68780-52031 Hinge Assy, Rear Door, Lower Lh[12.2006 - 12.2009] AZE15#,GRE156 |
68780-52031 |
US $28.12 |
||
|
69803
|
69803
69803-12180 Regulator Sub-Assy, Rear Door Window, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
69803-12180 |
US $46.74 |
||
|
69804
|
69804
69804-12180 Regulator Sub-Assy, Rear Door Window, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
69804-12180 |
US $46.74 |
||
|
69905B
|
69905B
69905-12190 Channel Sub-Assy, Rear Door Glass, Rh[12.2006 - 12.2009] AZE15#,GRE156 |
69905-12190 |
US $8.15 |
||
|
69906B
|
69906B
69906-12180 Channel Sub-Assy, Rear Door Glass, Lh[12.2006 - 12.2009] AZE15#,GRE156 |
69906-12180 |
US $8.15 |
||
|
69975A
|
69975A
69975-52010 Filler, Rear Door Glass Channel[12.2006 - 12.2009] AZE15#,GRE156 |
69975-52010 |
from US $5.81 |
||
|
85710F
|
85710F
85720-12340 Motor Assy, Power Window Regulator, Rh[12.2006 - 09.2007] AZE15#,GRE156 |
85720-12340 |
US $449.90 |
||
| replacement | |||||
|
85710F
|
85710F
85720-12341 Motor Assy, Power Window Regulator, Rh[12.2006 - 09.2007] AZE15#,GRE156 |
85720-12341 |
US $372.74 |
||
|
85710F
|
85710F
85720-12341 Motor Assy, Power Window Regulator, Rh[10.2007 - 12.2009] AZE15#,GRE156 |
85720-12341 |
US $372.74 |
||
|
85720E
|
85720E
85710-12350 Motor Assy, Power Window Regulator, Lh[12.2006 - 09.2007] AZE15#,GRE156 |
85710-12350 |
US $449.90 |
||
| replacement | |||||
|
85720E
|
85720E
85710-12351 Motor Assy, Power Window Regulator, Lh[12.2006 - 09.2007] AZE15#,GRE156 |
85710-12351 |
US $372.74 |
||
|
85720E
|
85720E
85710-12351 Motor Assy, Power Window Regulator, Lh[10.2007 - 12.2009] AZE15#,GRE156 |
85710-12351 |
US $372.74 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
US $1.44 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.78 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
