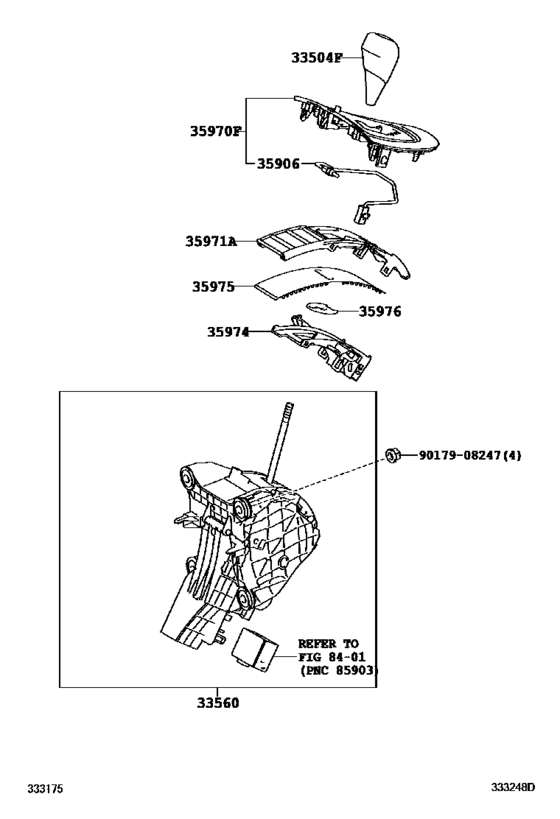

Shift Lever & Retainer ([12.2006 - 12.2009] (0612-0912)) Diagram Toyota BLADE
- Year
- 2007 - 2012
- Sales region
- Japan
- Frame
- GRE156
- grade
- G
- ENGINE
- 2GRFE
- From
- 08.2007
- To
- 04.2012
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-12440-J0 Knob Sub-Assy, Shift Lever[08.2007 - 12.2009] GRE156..G DK.BLUE,TRIM0#,8#; GRE156..STD DK.BLUE,TRIM8# |
33504-12440-J0 |
US $75.71 |
||
|
33560
|
33560
33560-12210 Unit Assy, Shift Lock Control[12.2006 - 12.2009] AZE15#,GRE156 |
33560-12210 |
US $742.56 |
||
|
33560
|
33560
33560-12430 Unit Assy, Shift Lock ControlSHIFT LOCK CONTROL [12.2009 -] AZE15#,GRE156 |
33560-12430 |
US $327.60 |
||
|
35906
|
35906
35906-12220 Wire Sub-Assy, Indicator Lamp[12.2006 - 12.2009] AZE15#,GRE156 |
35906-12220 |
US $11.36 |
||
|
35906
|
35906
35906-12240 Wire Sub-Assy, Indicator LampINDICATOR LAMP [12.2009 -] AZE15#,GRE156 |
35906-12240 |
US $11.36 |
||
|
35970F
|
35970F
35970-12120 Housing Assy, Position Indicator[08.2007 - 12.2009] GRE156 |
35970-12120 |
US $160.16 |
||
|
35970F
|
35970F
35970-12260 Housing Assy, Position IndicatorPOSITION INDICATOR [12.2009 -] GRE156 |
35970-12260 |
US $247.52 |
||
|
35971A
|
35971A
35971-12460 Housing, Position Indicator, Upper[12.2006 - 12.2009] AZE15#,GRE156 |
35971-12460 |
US $21.26 |
||
|
35971A
|
35971A
35971-12560 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [12.2009 -] AZE15#,GRE156 |
35971-12560 |
US $20.38 |
||
|
35974
|
35974
35974-12210 Housing, Position Indicator, Lower[12.2006 - 12.2009] AZE15#,GRE156 |
35974-12210 |
US $33.63 |
||
|
35974
|
35974
35974-12320 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [12.2009 -] AZE15#,GRE156 |
35974-12320 |
US $52.27 |
||
|
35975
|
35975
35975-12380 Cover, Slide (For Position Indicator)[12.2006 - 12.2009] AZE15#,GRE156 |
35975-12380 |
US $6.55 |
||
|
35976
|
35976
35976-12150 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [12.2009 -] AZE15#,GRE156 |
35976-12150 |
US $4.66 |
||
|
35976
|
35976
35976-28010 Cover, Slide, No.2 (For Position Indicator)[12.2006 - 12.2009] AZE15#,GRE156 |
35976-28010 |
US $4.80 |
||
|
9017908247
|
9017908247
90179-08247 New Genuine Part |
90179-08247 |
US $1.60 |
