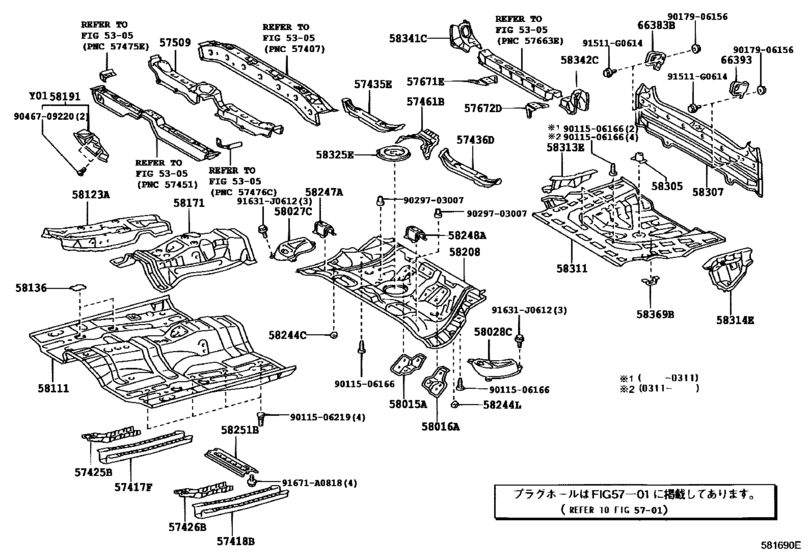

Floor Pan & Lower Back Panel ([09.2002 - ] (0209- )AZT241,ZZT241) Diagram Toyota CALDINA
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- AZT241
- grade
- ZT
- body
- WG
- ENGINE
- 1AZFSE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 06.2007
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57417F
|
57417F
57417-20110 Reinforcement, Front Floor Under, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
57417-20110 |
US $57.08 |
||
|
57418B
|
57418B
57417-20110 Reinforcement, Front Floor Under, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
57417-20110 |
US $57.08 |
||
|
57425B
|
57425B
57423-21010 Reinforcement, Front Floor, No.2 Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
57423-21010 |
US $18.05 |
||
|
57426B
|
57426B
57423-21010 Reinforcement, Front Floor, No.2 Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
57423-21010 |
US $18.05 |
||
|
57435E
|
57435E
57435-12010 Member, Center Floor Side, Rh[09.2002 - 01.2005] AZT241,ZZT241 |
57435-12010 |
US $30.28 |
||
|
57436D
|
57436D
57436-12010 Member, Center Floor Side, Lh[09.2002 - 01.2005] AZT241,ZZT241 |
57436-12010 |
US $30.28 |
||
|
57461B
|
57461B
57461-12130 Member Sub-Assy, Center Floor Cross, No.1[09.2002 - 01.2005] AZT241,ZZT241 |
57461-12130 |
US $17.76 |
||
|
57509
|
57509
57509-21010 Reinforcement Sub-Assy, Front Floor, Center[09.2002 - 01.2005] AZT241,ZZT241 |
57509-21010 |
US $68.14 |
||
|
57671E
|
57671E
57671-21020 Bracket, Rear Seat Back Hinge Mounting, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
57671-21020 |
US $19.51 |
||
|
57672D
|
57672D
57672-21020 Blacket, Rear Seat Back Hinge Mounting, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
57672-21020 |
US $19.51 |
||
|
58015A
|
58015A
58015-12070 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58015-12070 |
US $23.30 |
||
|
58016A
|
58016A
58016-13040 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58016-13040 |
US $40.77 |
||
|
58027C
|
58027C
58027-21030 Panel Sub-Assy, Center Floor Side, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58027-21030 |
US $24.75 |
||
|
58028C
|
58028C
58028-21010 Panel Sub-Assy, Center Floor Side, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58028-21010 |
US $24.75 |
||
|
58111
|
58111
58111-20904 Pan, Front Floor[09.2002 - 01.2004] AZT241,ZZT241 |
58111-20904 |
US $612.98 |
||
|
58111
|
58111
58111-20906 Pan, Front Floor[01.2004 - 11.2004] AZT241,ZZT241 |
58111-20906 |
US $614.43 |
||
| replacements | |||||
|
58111
|
58111
58111-20916 Pan, Front Floor[01.2004 - 11.2004] AZT241,ZZT241 |
58111-20916 |
US $423.70 |
||
|
58111
|
58111
90950-01907 New Genuine Part[01.2004 - 11.2004] AZT241,ZZT241 |
90950-01907 |
US $2.33 |
||
|
58111
|
58111
58111-20916 Pan, Front Floor[11.2004 - 01.2005] AZT241,ZZT241 |
58111-20916 |
US $423.70 |
||
|
58123A
|
58123A
58123-20111 Support, Shift & Select Lever[09.2002 - 03.2004] AZT241,ZZT241 |
58123-20111 |
US $94.64 |
||
| replacement | |||||
|
58123A
|
58123A
58123-20112 Support, Shift & Select Lever[09.2002 - 03.2004] AZT241,ZZT241 |
58123-20112 |
US $59.55 |
||
|
58123A
|
58123A
58123-20112 Support, Shift & Select Lever[03.2004 - 01.2005] AZT241,ZZT241 |
58123-20112 |
US $59.55 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58107-20160 Reinforcement, Parking Brake Base[09.2002 - 01.2005] AZT241,ZZT241 |
58107-20160 |
US $145.60 |
||
|
58191
|
58191
58190-21010 Footrest, Front Floor[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58190-21010 |
US $38.09 |
||
|
58191
|
58191
58190-21011 Footrest, Front Floor[03.2006 -] AZT24#,ST246,ZZT241 |
58190-21011 |
US $39.17 |
||
|
58208
|
58208
58211-20520 Pan, Center Floor[09.2002 - 01.2005] AZT241,ZZT241 |
58211-20520 |
US $198.02 |
||
|
58244C
|
58244C
58244-13030 Bracket, Rear Seat Cushion Mounting[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58244-13030 |
US $2.91 |
||
|
58244L
|
58244L
58244-13030 Bracket, Rear Seat Cushion Mounting[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58244-13030 |
US $2.91 |
||
|
58247A
|
58247A
58247-20040 Reinforcement, Rear Seat Cushion Hinge, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58247-20040 |
US $7.28 |
||
|
58248A
|
58248A
58247-20040 Reinforcement, Rear Seat Cushion Hinge, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58247-20040 |
US $7.28 |
||
|
58251B
|
58251B
58251-32010 Brace, Floor Panel, Front[09.2002 - 01.2005] AZT241,ZZT241 |
58251-32010 |
US $18.92 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58351-33010 |
US $6.56 |
||
|
58307
|
58307
58307-21060 Panel Sub-Assy, Body Lower Back[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58307-21060 |
US $285.38 |
||
| replacement | |||||
|
58307
|
58307
58307-21061 Panel Sub-Assy, Body Lower Back[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58307-21061 |
US $285.38 |
||
|
58307
|
58307
58307-21061 Panel Sub-Assy, Body Lower Back[04.2005 - 06.2007] AZT24#,ST246,ZZT241 |
58307-21061 |
US $285.38 |
||
|
58311
|
58311
58311-21900 Pan, Rear Floor[09.2002 - 11.2003] AZT24#,ST246,ZZT241 |
58311-21900 |
US $381.47 |
||
| replacements | |||||
|
58311
|
58311
58311-21905 Pan, Rear Floor[09.2002 - 11.2003] AZT24#,ST246,ZZT241 |
58311-21905 |
US $382.93 |
||
|
58311
|
58311
90333-48001 Plate, Quarter Panel, Upper No.1[09.2002 - 11.2003] AZT24#,ST246,ZZT241 |
90333-48001 |
US $0.96 |
||
|
58311
|
58311
58311-21901 Pan, Rear Floor[11.2003 - 01.2005] AZT24#,ST246,ZZT241 |
58311-21901 |
US $382.93 |
||
| replacements | |||||
|
58311
|
58311
58311-21905 Pan, Rear Floor[11.2003 - 01.2005] AZT24#,ST246,ZZT241 |
58311-21905 |
US $382.93 |
||
|
58311
|
58311
90333-48001 Plate, Quarter Panel, Upper No.1[11.2003 - 01.2005] AZT24#,ST246,ZZT241 |
90333-48001 |
US $0.96 |
||
|
58311
|
58311
58311-21905 Pan, Rear Floor[01.2005 -] AZT24#,ST246,ZZT241 |
58311-21905 |
US $382.93 |
||
|
58313E
|
58313E
58313-21050 Extension, Rear Floor Side Panel, Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58313-21050 |
US $58.24 |
||
|
58314E
|
58314E
58314-21050 Extension, Rear Floor Side Panel, Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58314-21050 |
US $58.24 |
||
|
58325E
|
58325E
58325-32040 Cover, Rear Floor Service Hole[09.2002 - 01.2005] AZT241,ZZT241 |
58325-32040 |
US $12.52 |
||
|
58341C
|
58341C
58341-21010 Bracket, Rear Absorber Mounting, No.1 Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58341-21010 |
US $29.70 |
||
|
58342C
|
58342C
58342-21010 Bracket, Rear Absorber Mounting, No.1 Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58342-21010 |
US $29.70 |
||
|
58369B
|
58369B
58369-20020 Bracket, Center Floor Heat Insulator[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
58369-20020 |
US $2.91 |
||
|
66383B
|
66383B
66383-21010 Bracket, Rope Hook, No.1 Rh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
66383-21010 |
US $11.07 |
||
|
66393
|
66393
66393-21010 Bracket, Rope Hook, No.1 Lh[09.2002 - 01.2005] AZT24#,ST246,ZZT241 |
66393-21010 |
US $11.07 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
from US $1.76 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
91671A0818
|
91671A0818
91671-A0818 New Genuine Part |
91671-A0818 |
US $0.96 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9029703007
|
9029703007
90297-03007 Retainer, Rear Heater Mounting |
90297-03007 |
US $0.73 |
||
|
9046709220
|
9046709220
90467-09220 Clip, Footrest |
90467-09220 |
US $1.92 |
||
