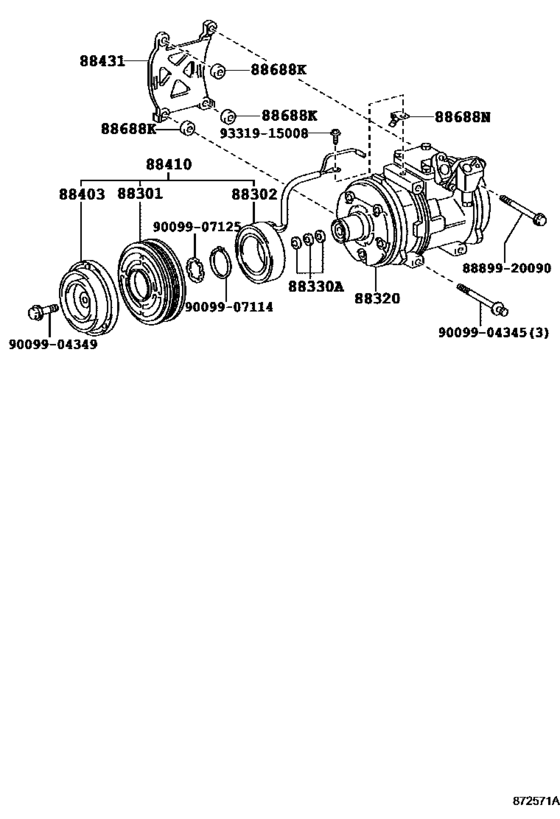

Heating & Air Conditioning - Compressor ([11.1992 - ] (9211- )CT19#) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- FZ
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-2B030
Rotor Sub-Assy, Magnet Clutch
[11.1992 - 02.1994] CT19# |
88412-2B030 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-33050 Rotor Sub-Assy, Magnet Clutch[11.1992 - 02.1994] CT19# |
88412-33050 |
US $241.86 |
||
|
88301
|
88301
88412-2B070
Rotor Sub-Assy, Magnet Clutch
[02.1994 - 09.1995] CT19# |
88412-2B070 |
— | ||
|
88301
|
88301
88412-33050 Rotor Sub-Assy, Magnet Clutch[09.1995 - 01.1996] CT19#;ST195..TZG |
88412-33050 |
US $241.86 |
||
|
88302
|
88302
88411-22310
Stator Sub-Assy, Magnet Clutch
[11.1992 - 02.1994] CT190 |
88411-22310 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[11.1992 - 02.1994] CT190 |
88411-2A030 |
US $79.67 |
||
|
88320
|
88320
88320-2B090
Compressor Assy, Cooler
[11.1992 - 02.1994] CT19# |
88320-2B090 |
— | ||
|
88320
|
88320
88320-2B130
Compressor Assy, Cooler
[02.1994 - 01.1996] CT19# |
88320-2B130 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-2BH90
Compressor Assy, Cooler
[02.1994 - 01.1996] CT19# |
88320-2BH90 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[11.1992 - 07.1993] ET196..3FC..(U,UL);CT190,196,ET196..CZ,FZ,UX |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[11.1992 - 07.1993] ET196..UX;CT19#,ST19#;ET196..3FC..(U,UL) |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-2B060 Clutch Assy, Magnet[11.1992 - 01.1996] CT19#;ST195..TZG |
88410-2B060 |
US $556.19 |
||
|
88431
|
88431
88431-12460
Bracket, Compressor Mounting, No.1
[11.1992 - 01.1996] CT19# |
88431-12460 |
— | ||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904345
|
9009904345
90099-04345
New Genuine Part
|
90099-04345 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.05 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
