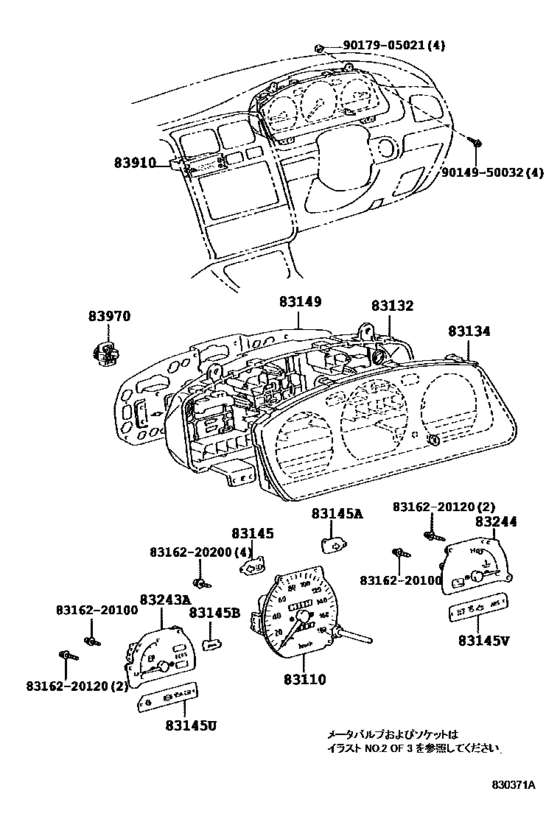

Meter ([11.1992 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ) (9211-9601)) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- FZ
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83110-2D310 Speedometer Assy[11.1992 - 02.1994] CT190,ST19# |
83110-2D310 |
US $413.50 |
||
|
83110
|
83110
83110-2D590 Speedometer Assy[02.1994 - 01.1996] CT190,ST19# |
83110-2D590 |
US $368.37 |
||
|
83132
|
83132
83132-20640
Case, Combination Meter
[11.1992 - 02.1994] CT190,ST19# |
83132-20640 |
— | ||
|
83132
|
83132
83132-2D060 Case, Combination Meter[02.1994 - 01.1996] CT190,ST19# |
83132-2D060 |
US $84.45 |
||
|
83134
|
83134
83134-20200 Cover, Combination Meter, No.1[11.1992 - 02.1994] CT190;ST190,195..5F |
83134-20200 |
US $84.45 |
||
|
83134
|
83134
83134-20240 Cover, Combination Meter, No.1[02.1994 - 01.1996] CT190;ST190,195..5F |
83134-20240 |
US $84.45 |
||
|
83145
|
83145
83145-2D640 Lens, Meter, No.1[11.1993 - 02.1994] ST195..TZ;ST195..5F..CZ;CT19#,ET196,ST190,191 |
83145-2D640 |
US $8.30 |
||
|
83145
|
83145
83146-20520 Lens, Meter, No.1[11.1992 - 11.1993] CT19#,ET196,ST19# |
83146-20520 |
US $8.15 |
||
|
83145A
|
83145A
83145-2D620 Lens, Meter, No.2[11.1993 - 01.1996] CT19#,ET196,ST19# |
83145-2D620 |
US $8.30 |
||
| replacement | |||||
|
83145A
|
83145A
83145-2D720 Lens, Meter, No.1[11.1993 - 01.1996] CT19#,ET196,ST19# |
83145-2D720 |
US $8.15 |
||
|
83145A
|
83145A
83146-20500 Lens, Meter, No.2[11.1992 - 11.1993] CT19#,ET196,ST19# |
83146-20500 |
US $8.15 |
||
|
83149
|
83149
83149-20320 Plate, Meter Circuit[11.1992 - 01.1996] CT190..4FC |
83149-20320 |
US $57.80 |
||
|
83243A
|
83243A
83243-20680 Gauge Sub-Assy, Fuel Receiver[11.1992 - 02.1994] CT190 |
83243-20680 |
US $177.63 |
||
|
83243A
|
83243A
83243-2D080 Gauge Sub-Assy, Fuel Receiver[02.1994 - 01.1996] CT190 |
83243-2D080 |
US $177.63 |
||
|
83910
|
83910
83910-20640 Clock Assy[11.1992 - 01.1996] CT19#,ET196,ST19# |
83910-20640 |
US $423.70 |
||
|
83970
|
83970
83970-12020 Buzzer Assy, Reverse Warning[11.1992 - 06.1993] CT190,196,ET196,ST19#..ATM |
83970-12020 |
US $38.61 |
||
|
83970
|
83970
83970-20010 Buzzer Assy, Reverse Warning[06.1993 - 01.1996] CT190,ST19#..4FC |
83970-20010 |
US $38.61 |
||
|
8316220100
|
8316220100
83162-20100 Case, Combination Meter Mirror, No.2 |
83162-20100 |
US $1.46 |
||
|
8316220120
|
8316220120
83162-20120 Case, Combination Meter Mirror, No.2 |
83162-20120 |
US $1.02 |
||
|
8316220200
|
8316220200
83162-20200 Case, Combination Meter Mirror, No.2 |
83162-20200 |
US $1.75 |
||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
US $1.28 |
||
|
9017905021
|
9017905021
90179-05021 NUT |
90179-05021 |
US $1 |
||
