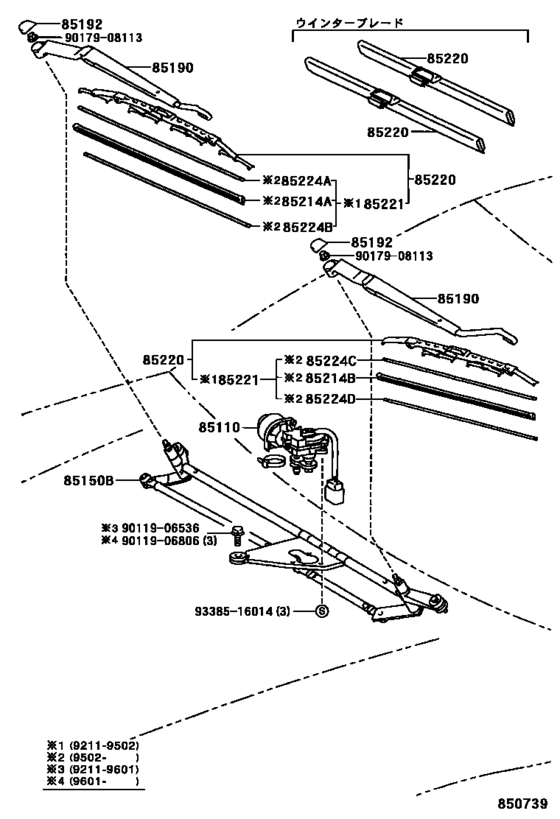

Windshield Wiper ([11.1992 - ] (9211- )) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- CT190
- grade
- FZ
- body
- WG
- ENGINE
- 2C
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-20700
Motor Assy, Windshield Wiper
[11.1992 - 02.1994] CT19#,ET196,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
85110-20700 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-20720
Motor Assy, Windshield Wiper
[11.1992 - 02.1994] CT19#,ET196,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
85110-20720 |
— | ||
|
85110
|
85110
85110-20701 Motor Assy, Windshield Wiper[02.1994 - 01.1996] CT19#,ET196,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
85110-20701 |
US $398.94 |
||
| replacement | |||||
|
85110
|
85110
85110-21030 Motor Assy, Windshield Wiper[02.1994 - 01.1996] CT19#,ET196,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
85110-21030 |
US $396.03 |
||
|
85110
|
85110
85110-20710 Motor Assy, Windshield Wiper[11.1992 - 02.1994] CT19#,ET196,ST19# |
85110-20710 |
US $390.21 |
||
|
85110
|
85110
85110-20711 Motor Assy, Windshield Wiper[02.1994 - 01.1996] CT19#,ET196,ST19# |
85110-20711 |
US $384.38 |
||
|
85150B
|
85150B
85150-20750 Link Assy, Wiper[11.1992 - 01.1996] CT19#,ET196,ST19# |
85150-20750 |
US $110.66 |
||
| replacement | |||||
|
85150B
|
85150B
85150-20770
Link Assy, Wiper
[11.1992 - 01.1996] CT19#,ET196,ST19# |
85150-20770 |
— | ||
|
85150B
|
85150B
85150-20790 Link Assy, Wiper[11.1992 - 05.1993] CT19#,ET196,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
85150-20790 |
US $110.66 |
||
| replacement | |||||
|
85150B
|
85150B
85150-20770
Link Assy, Wiper
[11.1992 - 05.1993] CT19#,ET196,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
85150-20770 |
— | ||
|
85150B
|
85150B
85150-20860 Link Assy, Wiper[01.1995 - 01.1996] CT19#,ET196,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
85150-20860 |
US $149.97 |
||
|
85190
|
85190
85211-20330
Arm Assy, Windshield Wiper
[11.1992 -] AT191,CT19#,ET196,ST19# 右側 |
85211-20330 |
— | ||
|
85190
|
85190
85221-20310 Arm Assy, Windshield Wiper[11.1992 -] AT191,CT19#,ET196,ST19# 左側 |
85221-20310 |
from US $68 |
||
|
85192
|
85192
85292-12020 Cover, Windshield Wiper Arm[11.1992 -] AT191,CT19#,ET196,ST19# |
85292-12020 |
from US $1.52 |
||
| replacement | |||||
|
85192
|
85192
85292-01020 Cover, Windshield Wiper Arm[11.1992 -] AT191,CT19#,ET196,ST19# |
85292-01020 |
US $9.71 |
||
|
85214A
|
85214A
85214-33060
Rubber, Wiper, Rh
[02.1995 - 01.1996] CT19#,ET196,ST19# |
85214-33060 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-40080 Rubber, Wiper, Lh[02.1995 - 01.1996] CT19#,ET196,ST19# |
85214-40080 |
from US $13.60 |
||
|
85214B
|
85214B
85214-20320 Rubber, Wiper, Rh[02.1995 - 01.1996] CT19#,ET196,ST19# |
85214-20320 |
US $8.91 |
||
| replacement | |||||
|
85214B
|
85214B
85214-20330 Rubber, Wiper, RhWIPER, RH [02.1995 - 01.1996] CT19#,ET196,ST19# |
85214-20330 |
from US $14.24 |
||
|
85220
|
85220
85212-20350
Blade, Fr Wiper, Rh
[11.1992 - 01.1996] CT19#,ET196,ST19# 右側 |
85212-20350 |
— | ||
|
85220
|
85220
85222-20310
Blade Assy, Windshield Wiper
[11.1992 - 01.1996] CT19#,ET196,ST19# 左側 |
85222-20310 |
— | ||
| replacement | |||||
|
85220
|
85220
85222-60100 Blade Assy, Windshield WiperWINDSHIELD WIPER [11.1992 - 01.1996] CT19#,ET196,ST19# 左側 |
85222-60100 |
US $24.98 |
||
|
85220
|
85220
85291-22050
Blade Assy, Windshield Wiper
[11.1992 -] AT191,CT19#,ET196,ST19# ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ,右側 |
85291-22050 |
— | ||
| replacement | |||||
|
85220
|
85220
85291-33060 Blade, Front Wiper, Winter, Rh[11.1992 -] AT191,CT19#,ET196,ST19# ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ,右側 |
85291-33060 |
US $72.96 |
||
|
85220
|
85220
85291-30030 Blade Assy, Windshield Wiper[11.1992 -] AT191,CT19#,ET196,ST19# ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ,左側 |
85291-30030 |
US $66.39 |
||
| replacement | |||||
|
85220
|
85220
85291-22080 Blade Assy, Windshield Wiper[11.1992 -] AT191,CT19#,ET196,ST19# ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ,左側 |
85291-22080 |
US $63.84 |
||
|
85221
|
85221
85213-20310
Rubber, Wiper Blade, Rh
[11.1992 - 02.1995] CT19#,ET196,ST19# 右側 |
85213-20310 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-40080 Rubber, Wiper, Lh[11.1992 - 02.1995] CT19#,ET196,ST19# 右側 |
85214-40080 |
from US $13.60 |
||
|
85221
|
85221
85223-20310 Blade, Windshield Wiper[11.1992 - 02.1995] CT19#,ET196,ST19# 左側 |
85223-20310 |
US $15.29 |
||
| replacement | |||||
|
85221
|
85221
85214-20330 Rubber, Wiper, RhWIPER, RH [11.1992 - 02.1995] CT19#,ET196,ST19# 左側 |
85214-20330 |
from US $14.24 |
||
|
85224A
|
85224A
85224-33050 Plate, Wiper Rubber Backing, No.1[02.1995 - 01.1996] CT19#,ET196,ST19# |
85224-33050 |
US $5.07 |
||
|
85224B
|
85224B
85224-33050 Plate, Wiper Rubber Backing, No.1[02.1995 - 01.1996] CT19#,ET196,ST19# |
85224-33050 |
US $5.07 |
||
|
85224C
|
85224C
85224-60050 Plate, Wiper Rubber Backing, No.1[02.1995 - 01.1996] CT19#,ET196,ST19# |
85224-60050 |
US $4.22 |
||
|
85224D
|
85224D
85224-60050 Plate, Wiper Rubber Backing, No.1[02.1995 - 01.1996] CT19#,ET196,ST19# |
85224-60050 |
US $4.22 |
||
|
9011906536
|
9011906536
90119-06536 BOLT WWASHER |
90119-06536 |
US $2.40 |
||
|
9011906806
|
9011906806
90119-06806 New Genuine Part |
90119-06806 |
US $1.44 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $1.92 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
