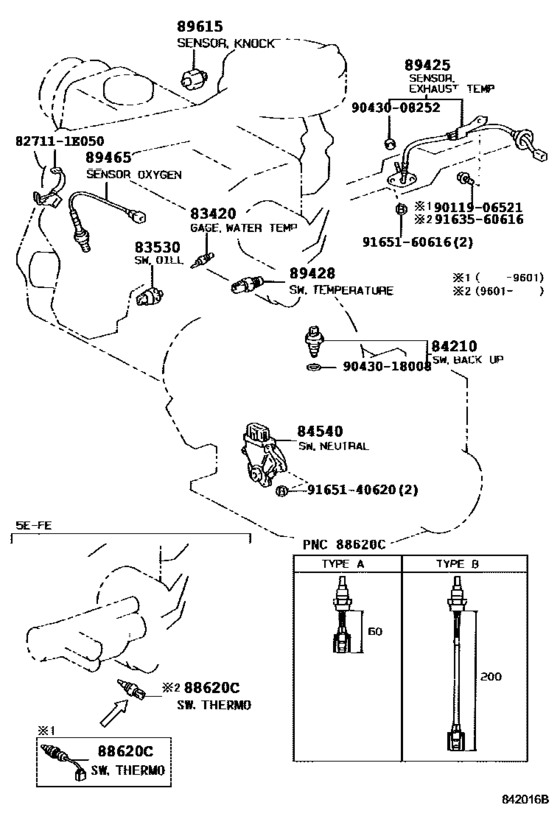

Switch & Relay & Computer ([11.1992 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9211- )ET196) Diagram Toyota CALDINA
- Year
- 1992 - 2002
- Sales region
- Japan
- Frame
- ET196
- grade
- U
- body
- VAN
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 11.1992
- To
- 06.2002
- Gear Shift Type
- 5F
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[11.1992 - 05.1997] ET196 |
83420-16020 |
from US $50.49 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[05.1998 -] ET196,ST198 ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.1998 -] ET196,ST198 ＤＥＮＳＯ |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[05.1998 -] ET196,ST198 ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[11.1992 - 05.1998] AT191,ET196,ST19# |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1992 - 05.1998] AT191,ET196,ST19# |
83530-60020 |
from US $25.55 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.1998 -] ET196,ST198 ＹＡＺＡＫＩ |
83530-60020 |
from US $25.55 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[11.1992 -] AT191,CT19#,ET196,ST190,195..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[11.1992 -] AT191,CT19#,ET196,ST190,195..5F |
84210-52050 |
from US $20.67 |
||
|
89425
|
89425
89425-29735 Sensor, Exhaust Gas Temperature[11.1992 - 01.1996] ET196 |
89425-29735 |
US $276.64 |
||
|
89425
|
89425
89425-80036 Sensor, Exhaust Gas Temperature[01.1996 - 08.1997] ET196 |
89425-80036 |
US $276.64 |
||
|
89428
|
89428
89428-10120 Switch, Temperature Detect, No.2[08.1997 -] ET196 |
89428-10120 |
from US $78.44 |
||
|
89428
|
89428
89428-12160 Switch, Temperature Detect, No.2[11.1992 - 01.1996] ET196 ＡＩＳＩＮ |
89428-12160 |
from US $78.44 |
||
|
89465
|
89465
89465-10020
Sensor, Oxygen
[11.1992 - 01.1996] ET196 |
89465-10020 |
— | ||
|
89465
|
89465
89465-12360 Sensor, Oxygen[01.1996 - 08.1997] ET196 |
89465-12360 |
US $144.14 |
||
|
89465
|
89465
89465-33180 Sensor, Oxygen[08.1997 -] ET196 |
89465-33180 |
US $149.97 |
||
|
89615
|
89615
89615-22030 Sensor, Knock Control[01.1996 - 09.1999] AT191,ET196 MATUSITA |
89615-22030 |
from US $153.19 |
||
|
89615
|
89615
89615-22040 Sensor, Knock Control[08.1997 - 09.1999] ET196 ＤＥＮＳＯ |
89615-22040 |
from US $129.25 |
||
|
89615
|
89615
89615-52010 Sensor, Knock Control[09.1999 -] ET196 |
89615-52010 |
from US $129.25 |
||
|
827111E050
|
827111E050
82711-1E050 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E050 |
US $5.24 |
||
|
9011906521
|
9011906521
90119-06521 New Genuine Part |
90119-06521 |
from US $1.75 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
