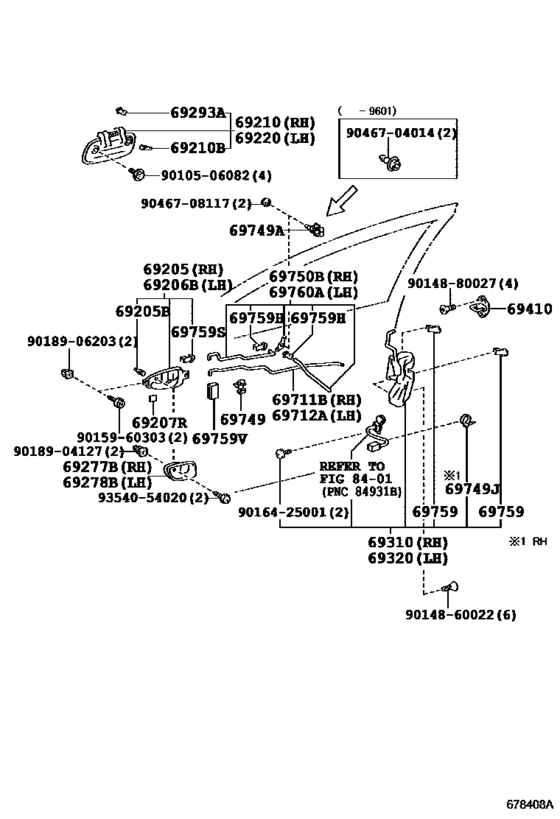

Front Door Lock & Handle ([11.1992 - ] (9211- )CZ,FZ,TZ,TZG,UX) Diagram Toyota CALDINA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- FZ
- body
- WG
- ENGINE
- 4SFE
- TRANSMISSION
- ATM
- From
- 11.1992
- To
- 01.1996
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69205-20110-B0 Handle Sub-Assy, Front Door Inside, Rh[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69205-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69205
|
69205
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69205-20110-C0 |
US $26.79 |
||
|
69205
|
69205
69205-20110-C0 Handle Sub-Assy, Front Door Inside, Rh[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
69205-20110-C0 |
US $26.79 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[11.1992 -] AT191,CT19#,ET196,ST19# |
90541-04014 |
from US $1.23 |
||
|
69206B
|
69206B
69206-20110-B0 Handle Sub-Assy, Front Door Inside, Lh[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69206-20110-B0 |
US $27.08 |
||
| replacement | |||||
|
69206B
|
69206B
69206-20110-C0
Handle Sub-Assy, Front Door Inside, Lh
[02.1994 - 01.1996] CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
69206-20110-C0 |
— | ||
|
69206B
|
69206B
69206-20110-C0
Handle Sub-Assy, Front Door Inside, Lh
[11.1992 - 02.1994] CT19#,ET196,ST19# BLACK,TRIM2# |
69206-20110-C0 |
— | ||
|
69210
|
69210
69210-20280-A0
Handle Assy, Front Door, Outside Rh
[11.1992 - 01.1996] CT190,ST19# SUPER WHITE 2,040 |
69210-20280-A0 |
— | ||
|
69210
|
69210
69210-20280-B1 Handle Assy, Front Door, Outside Rh[02.1994 - 01.1996] CT190,ST19# LT.GRAIGE ME,1A2 |
69210-20280-B1 |
US $90.27 |
||
|
69210
|
69210
69210-20280-D1 Handle Assy, Front Door, Outside Rh[11.1992 - 02.1994] CT190,ST19# DARK WINE MICA M,3K1 |
69210-20280-D1 |
US $90.27 |
||
|
69210
|
69210
69210-20280-D5 Handle Assy, Front Door, Outside Rh[02.1994 - 08.1997] AT191,CT190,ST19# MAGENTA MC,3L3 |
69210-20280-D5 |
US $90.27 |
||
|
69210
|
69210
69210-20280-E1 Handle Assy, Front Door, Outside Rh[11.1992 - 02.1994] CT190,ST19# LIGHT BEIGE ME,4M3 |
69210-20280-E1 |
US $90.27 |
||
|
69210
|
69210
69210-20280-G0 Handle Assy, Front Door, Outside Rh[11.1992 - 01.1996] CT190,ST19# DK.GRAYISH OLIVE ME,6M7 |
69210-20280-G0 |
US $90.27 |
||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-20280-A0
Handle Assy, Front Door Outside, Lh
[11.1992 - 01.1996] CT190,ST19# SUPER WHITE 2,040 |
69220-20280-A0 |
— | ||
|
69220
|
69220
69220-20280-B1 Handle Assy, Front Door Outside, Lh[02.1994 - 01.1996] CT190,ST19# LT.GRAIGE ME,1A2 |
69220-20280-B1 |
US $90.27 |
||
|
69220
|
69220
69220-20280-D1 Handle Assy, Front Door Outside, Lh[11.1992 - 02.1994] CT190,ST19# DARK WINE MICA M,3K1 |
69220-20280-D1 |
US $90.27 |
||
|
69220
|
69220
69220-20280-D5 Handle Assy, Front Door Outside, Lh[02.1994 - 08.1997] AT191,CT190,ST19# MAGENTA MC,3L3 |
69220-20280-D5 |
US $90.27 |
||
|
69220
|
69220
69220-20280-E1 Handle Assy, Front Door Outside, Lh[11.1992 - 02.1994] CT190,ST19# LIGHT BEIGE ME,4M3 |
69220-20280-E1 |
US $90.27 |
||
|
69220
|
69220
69220-20280-G0 Handle Assy, Front Door Outside, Lh[11.1992 - 01.1996] CT190,ST19# DK.GRAYISH OLIVE ME,6M7 |
69220-20280-G0 |
US $90.27 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[11.1992 -] AT191,CT19#,ET196,ST19# RH,NATURAL |
69293-12030 |
from US $1.99 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[11.1992 -] AT191,CT19#,ET196,ST19# LH,YELLOW |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69030-20440 Lock Assy, Front Door, Rh[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
69030-20440 |
US $243.15 |
||
|
69320
|
69320
69040-20470 Lock Assy, Front Door, Lh[11.1992 - 01.1996] CT190,196,ET196,ST19#..CZ,FZ,UX |
69040-20470 |
US $244.61 |
||
|
69410
|
69410
69410-87001 Plate Assy, Front Door Lock Striker[11.1992 -] AT191,CT19#,ET196,ST19# |
69410-87001 |
from US $10.22 |
||
| replacement | |||||
|
69410
|
69410
69410-AA020 Plate Assy, Front Door Lock Striker[11.1992 -] AT191,CT19#,ET196,ST19# |
69410-AA020 |
US $37.29 |
||
|
69711B
|
69711B
69711-20180 Link, Front Door Lock Remote Control, Rh[11.1992 -] AT191,CT19#,ET196,ST19# |
69711-20180 |
US $8.74 |
||
|
69712A
|
69712A
69712-20180 Link, Front Door Lock Remote Control, Lh[11.1992 -] AT191,CT19#,ET196,ST19# |
69712-20180 |
US $8.74 |
||
|
69749
|
69749
69749-20040
Clamp, Front Door Lock Link
[11.1992 -] AT191,CT19#,ET196,ST19# |
69749-20040 |
— | ||
|
69749J
|
69749J
69749-32020 Clamp, Front Door Lock Link[11.1992 -] AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
69749-32020 |
US $1.46 |
||
|
69750B
|
69750B
69750-20050 Link Assy, Front Door Inside Locking, Rh[11.1992 -] AT191,CT19#,ET196,ST19# |
69750-20050 |
US $18.05 |
||
|
69759
|
69759
69759-24010 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# LH,NATURAL |
69759-24010 |
from US $2.15 |
||
|
69759
|
69759
69759-24020 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# RH,BLUE |
69759-24020 |
from US $2.88 |
||
|
69759
|
69759
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[11.1992 - 01.1996] CT19#,ET196,ST19# LH,GREEN |
69759-24050 |
from US $3.84 |
||
|
69759
|
69759
69759-24060 Snap(For Rear Door Lock)[11.1992 - 01.1996] CT19#,ET196,ST19# RH,GRAY |
69759-24060 |
from US $4.64 |
||
|
69759H
|
69759H
69759-20380
Snap, Door Lock Control Link, No.1
[11.1992 -] AT191,CT19#,ET196,ST19# ブラック |
69759-20380 |
— | ||
|
69759H
|
69759H
69759-24030 Snap, Door Inside Handle Link[11.1992 -] AT191,CT19#,ET196,ST19# レッド |
69759-24030 |
from US $2.80 |
||
|
69759S
|
69759S
69759-14050 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# 右側，ピンク |
69759-14050 |
from US $2.16 |
||
|
69759S
|
69759S
69759-24070 Snap(For Rear Door Inside Handle)[11.1992 -] AT191,CT19#,ET196,ST19# 左側，イエロー |
69759-24070 |
US $2.88 |
||
|
69759V
|
69759V
69759-12060 Pad, Back Panel Silencer, Upper[11.1992 -] AT191,CT19#,ET196,ST19# 68 X 40 X 10 |
69759-12060 |
US $3.93 |
||
|
69759V
|
69759V
69759-30021 Silencer, Back Door Lock Link[11.1992 - 01.1996] CT19#,ET196,ST19# 80 X 40 |
69759-30021 |
from US $3.28 |
||
|
69760A
|
69760A
69760-20050 Link Assy, Front Door Inside Locking, Lh[11.1992 -] AT191,CT19#,ET196,ST19# |
69760-20050 |
US $18.05 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016425001
|
9016425001
90164-25001 New Genuine Part |
90164-25001 |
US $2.33 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
|
9018906203
|
9018906203
90189-06203 GROMMET SCREW |
90189-06203 |
from US $0.74 |
||
|
9046704014
|
9046704014
90467-04014 Clamp, Rear Door Lock Link |
90467-04014 |
US $1.22 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
|
9354054020
|
9354054020
93540-54020 New Genuine Part |
93540-54020 |
US $1.12 |
||
