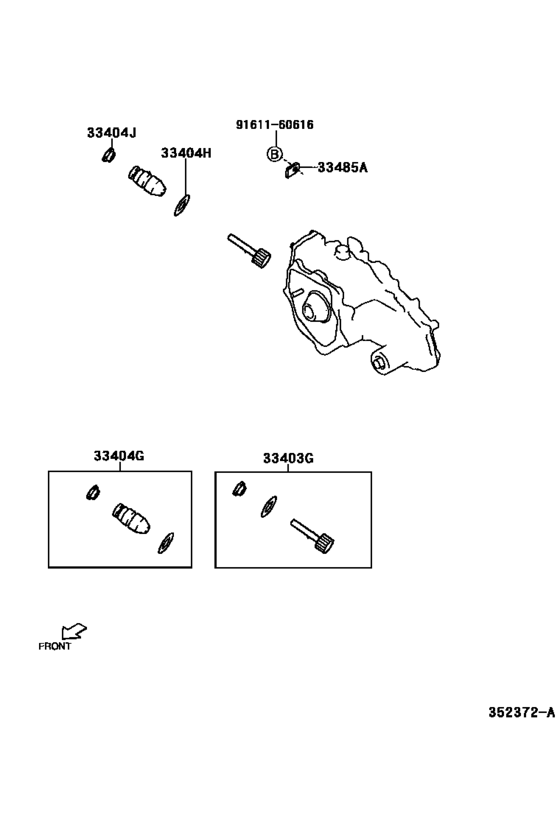

Speedometer Driven Gear (Atm) ([05.1999 - 05.2000] (9905-0005)4AT) Diagram Toyota CAMI
- Year
- 1999 - 2000
- Sales region
- Japan
- Frame
- J100E
- grade
- P
- ENGINE
- HCEJ
- TRANSMISSION
- ATM
- From
- 05.1999
- To
- 05.2000
- Gear Shift Type
- 4AT
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-87413 Gear Sub-Assy, Speedometer Driven (Atm)[05.1999 - 05.2000] J100..4AT |
33403-87413 |
US $38.29 |
||
|
33404G
|
33404G
33404-87402 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[05.1999 - 05.2000] J100..4AT |
33404-87402 |
US $39.75 |
||
|
33404H
|
33404H
96711-24020 Ring O(For Ventilation Hose No.4)[05.1999 - 05.2000] J100..4AT |
96711-24020 |
from US $3.04 |
||
|
33404J
|
33404J
90043-13021 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[05.1999 - 05.2000] J100..4AT |
90043-13021 |
US $2.72 |
||
|
33485A
|
33485A
33485-87201 Plate, Speedometer Sleeve Lock (Mtm)[05.1999 - 05.2000] J100..4AT |
33485-87201 |
US $1.60 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.88 |
||
