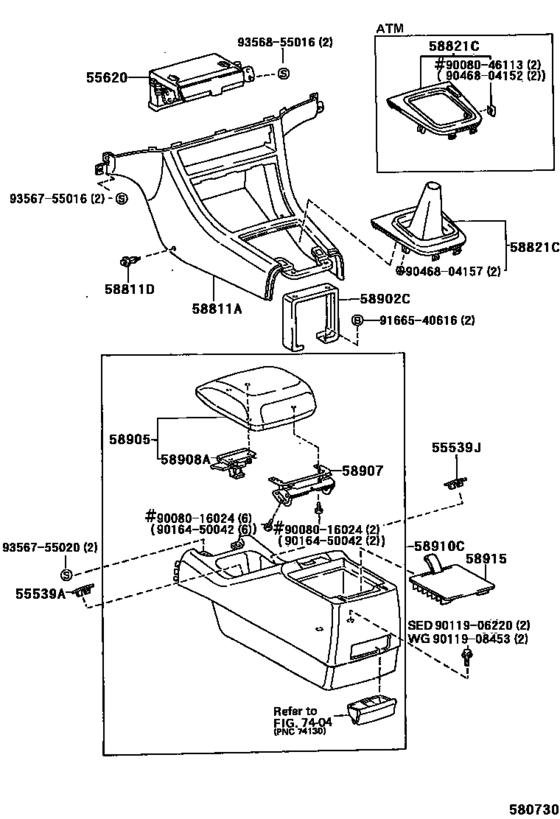

Console Box & Bracket ([09.1993 - ] (9209- )SXV10..NAP ; (9309- )NAP..SE) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1993 - 1994
- Sales region
- General
- Frame
- MCV10
- grade
- SE
- body
- SED
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- CAMRY (JPP/NAP/SED/WG)
- From
- 09.1993
- To
- 08.1994
- Vehicle Model
- Camry
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-06010-B0
Cover, Spare Switch Hole
[09.1992 - 07.1996] SXV10..NAP;MCV10..NAP..SE MEDIUM GRAY,TRIM1# |
55539-06010-B0 |
— | ||
|
55539A
|
55539A
55539-06010-E0
Cover, Spare Switch Hole
[09.1992 - 07.1996] SXV10..NAP;MCV10..NAP..SE OAK,TRIM4# |
55539-06010-E0 |
— | ||
|
55539A
|
55539A
55539-06010-K0
Cover, Spare Switch Hole
[09.1993 - 07.1996] MCV10..NAP..SE;SXV10..NAP..SED TAUPE,TRIM9# |
55539-06010-K0 |
— | ||
|
55539J
|
55539J
55539-06010-B0
Cover, Spare Switch Hole
[09.1992 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(DX,GL,LE,XE) MEDIUM GRAY,TRIM1# |
55539-06010-B0 |
— | ||
|
55539J
|
55539J
55539-06010-E0
Cover, Spare Switch Hole
[09.1992 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(DX,GL,LE,XE) OAK,TRIM4# |
55539-06010-E0 |
— | ||
|
55539J
|
55539J
55539-06010-K0
Cover, Spare Switch Hole
[09.1993 - 07.1996] MCV10..NAP..SE;SXV10..NAP..SED TAUPE,TRIM9# |
55539-06010-K0 |
— | ||
|
55620
|
55620
55620-06010-K0
Holder Assy, Instrument Panel Cup
[09.1993 - 07.1996] MCV10,SXV10..NAP..SED TAUPE,TRIM9# |
55620-06010-K0 |
— | ||
|
58811A
|
58811A
58810-06010-B0
Box, Console, Front
[09.1992 - 07.1996] MCV10,SXV10..NAP MEDIUM GRAY,TRIM1# |
58810-06010-B0 |
— | ||
|
58811A
|
58811A
58810-06010-E0
Box, Console, Front
[09.1992 - 07.1996] MCV10,SXV10..NAP OAK,TRIM4# |
58810-06010-E0 |
— | ||
|
58811A
|
58811A
58810-06010-K0
Box, Console, Front
[09.1993 - 07.1996] MCV10,SXV10..NAP..SED TAUPE,TRIM9# |
58810-06010-K0 |
— | ||
|
58811D
|
58811D
90467-06151-B0 Clip(For Console Box)[09.1992 - 07.1996] MCV10,SXV10..NAP MEDIUM GRAY,TRIM1# |
90467-06151-B0 |
US $2.33 |
||
|
58811D
|
58811D
90467-06151-E0 Clip(For Console Box)[09.1992 - 07.1996] MCV10,SXV10..NAP OAK,TRIM4# |
90467-06151-E0 |
US $2.33 |
||
|
58811D
|
58811D
90467-06151-K0 Clip(For Console Box)[09.1993 - 07.1996] MCV10,SXV10..NAP..SED TAUPE,TRIM9# |
90467-06151-K0 |
US $2.33 |
||
|
58821C
|
58821C
58804-06010-B0
Panel, Console, Upper
[09.1992 - 07.1996] MCV10,SXV10..NAP..ATM MEDIUM GRAY,TRIM1# |
58804-06010-B0 |
— | ||
|
58821C
|
58821C
58804-06010-E0
Panel, Console, Upper
[09.1992 - 07.1996] MCV10,SXV10..NAP..ATM OAK,TRIM4# |
58804-06010-E0 |
— | ||
|
58821C
|
58821C
58804-06010-K0
Panel, Console, Upper
[09.1993 - 07.1996] MCV10,SXV10..NAP..SED TAUPE,TRIM9# |
58804-06010-K0 |
— | ||
|
58905
|
58905
58905-06010-B0
Door Sub-Assy, Console Compartment
[09.1992 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(GL,LE,XE,XL) MEDIUM GRAY,TRIM1# |
58905-06010-B0 |
— | ||
|
58905
|
58905
58905-06010-E0
Door Sub-Assy, Console Compartment
[10.1993 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(GL,LE,XE,XL) OAK,TRIM4# |
58905-06010-E0 |
— | ||
|
58905
|
58905
58905-06010-K0
Door Sub-Assy, Console Compartment
[09.1993 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(LE,XE) TAUPE,TRIM9# |
58905-06010-K0 |
— | ||
|
58907
|
58907
58907-06010
Hinge Sub-Assy, Console Compartment Door
[09.1992 - 07.1996] SXV10..NAP;MCV10..NAP..SE |
58907-06010 |
— | ||
|
58908A
|
58908A
58908-06010
Lock Sub-Assy, Console Compartment Door
[09.1992 - 07.1996] SXV10..NAP;MCV10..NAP..SE |
58908-06010 |
— | ||
|
58910C
|
58910C
58910-06010-B0
Box Assy, Console, Rear
[09.1993 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(LE,XE) MEDIUM GRAY,TRIM1# |
58910-06010-B0 |
— | ||
|
58910C
|
58910C
58910-06010-E0
Box Assy, Console, Rear
[09.1993 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(LE,XE) OAK,TRIM4# |
58910-06010-E0 |
— | ||
|
58910C
|
58910C
58910-06010-K0
Box Assy, Console, Rear
[09.1993 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(LE,XE) TAUPE,TRIM9# |
58910-06010-K0 |
— | ||
|
58915
|
58915
58915-06010
Panel, Box Bottom
[09.1993 - 04.1994] MCV10..NAP..SE;SXV10..NAP..(LE,XE) |
58915-06010 |
— | ||
| replacement | |||||
|
58915
|
58915
58915-06011 Panel, Box Bottom[09.1993 - 04.1994] MCV10..NAP..SE;SXV10..NAP..(LE,XE) |
58915-06011 |
US $4.22 |
||
|
58915
|
58915
58915-06011 Panel, Box Bottom[04.1994 - 07.1996] MCV10..NAP..SE;SXV10..NAP..(LE,XE) |
58915-06011 |
US $4.22 |
||
|
9008016024
|
9008016024
90080-16024 New Genuine Part |
90080-16024 |
US $1.16 |
||
|
9008046113
|
9008046113
90080-46113
New Genuine Part
|
90080-46113 |
— | ||
|
9011906220
|
9011906220
90119-06220 New Genuine Part |
90119-06220 |
US $1.60 |
||
|
9011908453
|
9011908453
90119-08453 New Genuine Part |
90119-08453 |
US $2.04 |
||
|
9016450042
|
9016450042
90164-50042 New Genuine Part |
90164-50042 |
US $1.60 |
||
|
9046804152
|
9046804152
90468-04152 DASH BOARD CLIPS |
90468-04152 |
US $2.56 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.90 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.12 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
