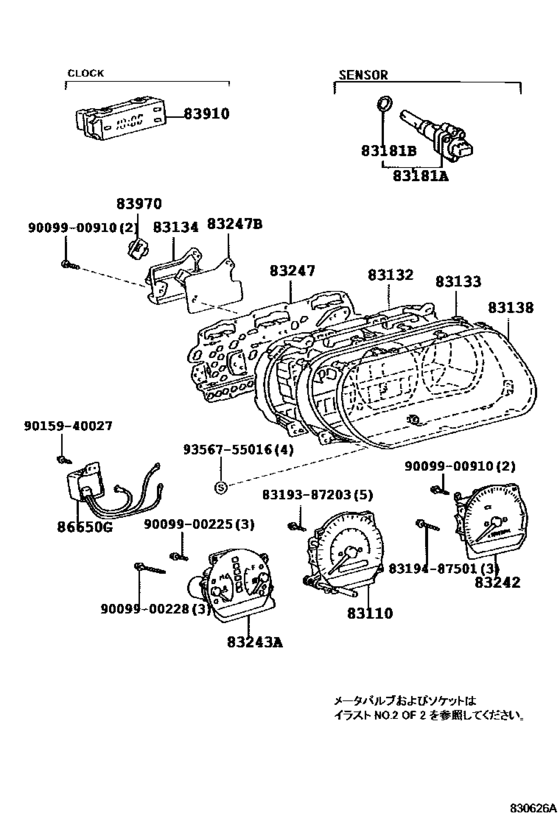

Meter ([12.1996 - ] ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ (9612- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- MCV21
- body
- WG
- ENGINE
- 2MZFE
- Model
- CAMRY GRACIA
- From
- 12.1996
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83110
|
83110
83220-33030 Speedometer Assy[12.1996 - 08.1999] MCV2#,SXV2# |
83220-33030 |
US $446.99 |
||
| replacement | |||||
|
83110
|
83110
83220-33031 Speedometer Assy[12.1996 - 08.1999] MCV2#,SXV2# |
83220-33031 |
US $446.99 |
||
|
83110
|
83110
83220-33031 Speedometer Assy[08.1999 -] MCV2#,SXV2# |
83220-33031 |
US $446.99 |
||
|
83110
|
83110
83220-33040 Speedometer Assy[12.1996 - 10.1997] MCV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83220-33040 |
US $864.86 |
||
|
83110
|
83110
83220-33041 Speedometer Assy[10.1997 - 08.1998] MCV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83220-33041 |
US $867.78 |
||
| replacement | |||||
|
83110
|
83110
83220-33040 Speedometer Assy[10.1997 - 08.1998] MCV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83220-33040 |
US $864.86 |
||
|
83110
|
83110
83220-33042 Speedometer Assy[08.1998 - 08.1999] MCV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83220-33042 |
US $867.78 |
||
|
83110
|
83110
83220-33043 Speedometer Assy[08.1999 -] MCV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83220-33043 |
US $867.78 |
||
|
83132
|
83132
83841-33030
Case, Combination Meter
[12.1996 -] MCV2#,SXV2# |
83841-33030 |
— | ||
|
83132
|
83132
83841-33150
Case, Combination Meter
[12.1996 -] MCV2#,SXV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83841-33150 |
— | ||
|
83133
|
83133
83811-33030
Plate, Combination Meter, No.1
[12.1996 -] MCV2#,SXV2# |
83811-33030 |
— | ||
|
83133
|
83133
83811-33150
Plate, Combination Meter, No.1
[12.1996 -] MCV2#,SXV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83811-33150 |
— | ||
|
83134
|
83134
83821-33150
Cover, Combination Meter, No.1
[12.1996 -] MCV21,SXV20 |
83821-33150 |
— | ||
|
83138
|
83138
83852-33030
Glass, Speedometer
[12.1996 -] MCV2#,SXV2# |
83852-33030 |
— | ||
|
83138
|
83138
83852-33150
Glass, Speedometer
[12.1996 -] MCV2#,SXV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83852-33150 |
— | ||
|
83242
|
83242
83881-33100 Tachometer Assy, Engine[12.1996 - 10.1997] MCV2# |
83881-33100 |
US $484.85 |
||
|
83242
|
83242
83881-33101 Tachometer Assy, Engine[10.1997 -] MCV2# |
83881-33101 |
US $486.30 |
||
|
83243A
|
83243A
83882-33090 Gauge Sub-Assy, Fuel Receiver[12.1996 -] MCV21,SXV20 |
83882-33090 |
US $171.81 |
||
|
83243A
|
83243A
83882-33150 Gauge Sub-Assy, Fuel Receiver[12.1996 -] MCV21,SXV20 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83882-33150 |
US $70.76 |
||
|
83247
|
83247
83861-33090
Plate, Meter Circuit
[12.1996 - 10.1997] MCV21,SXV20 |
83861-33090 |
— | ||
|
83247
|
83247
83861-33091
Plate, Meter Circuit
[10.1997 -] MCV21,SXV20 |
83861-33091 |
— | ||
|
83247
|
83247
83861-33150
Plate, Meter Circuit
[12.1996 - 10.1997] MCV21,SXV20 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83861-33150 |
— | ||
|
83247
|
83247
83861-33151
Plate, Meter Circuit
[10.1997 - 08.1998] MCV21,SXV20 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83861-33151 |
— | ||
|
83247
|
83247
83861-33152
Plate, Meter Circuit
[08.1998 - 08.1999] MCV21 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83861-33152 |
— | ||
|
83247
|
83247
83861-33153
Plate, Meter Circuit
[08.1999 -] MCV21 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83861-33153 |
— | ||
|
83247B
|
83247B
83864-33150
Plate, Meter Circuit, No.2
[12.1996 - 07.1997] MCV2#,SXV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83864-33150 |
— | ||
|
83247B
|
83247B
83864-33180
Plate, Meter Circuit, No.2
[08.1997 - 08.1999] SXV25..SED;MCV2#,SXV20 ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
83864-33180 |
— | ||
|
83910
|
83910
83910-33030 Clock Assy[12.1996 -] MCV2#,SXV2# |
83910-33030 |
US $465.92 |
||
|
83970
|
83970
83970-20010 Buzzer Assy, Reverse Warning[12.1996 -] MCV2#,SXV2# |
83970-20010 |
US $38.61 |
||
|
86650G
|
86650G
86650-30140 Chime, Speed Warning[12.1996 -] MCV2#,SXV2# |
86650-30140 |
US $39.60 |
||
|
86650G
|
86650G
86650-33020 Chime, Speed Warning[12.1996 - 08.1999] MCV2#,SXV2#..WG ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
86650-33020 |
US $39.60 |
||
|
86650G
|
86650G
86650-33030 Buzzer Assy[08.1999 -] MCV2#,SXV2# ｵﾌﾟﾁﾄﾛﾝﾒ-ﾀ |
86650-33030 |
US $39.60 |
||
|
8319387203
|
8319387203
83193-87203
New Genuine Part
|
83193-87203 |
— | ||
|
8319487501
|
8319487501
83194-87501
SCREWWWASHER
|
83194-87501 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900228
|
9009900228
90099-00228
New Genuine Part
|
90099-00228 |
— | ||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
