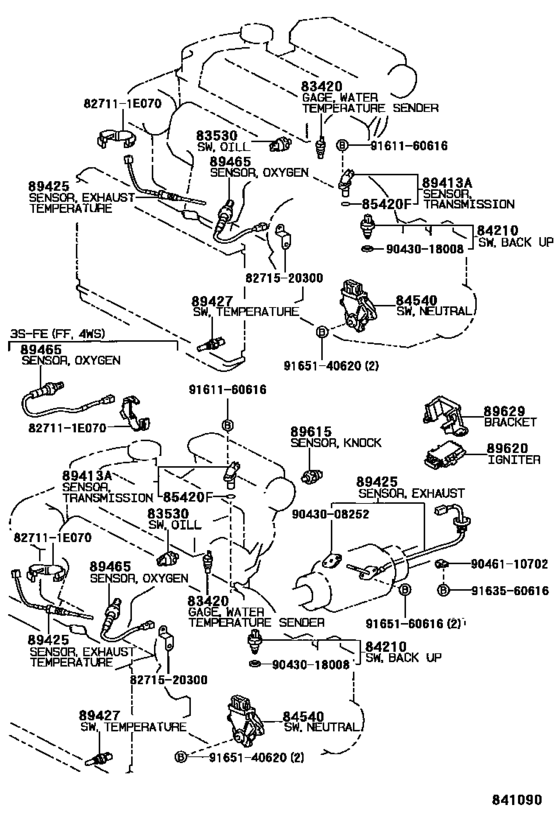

Switch & Relay & Computer ([06.1994 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9406- )SV4#) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[06.1994 - 06.1995] CV4#,SV4# ＮＩＰＰＯＮＤＥＮＳＯ |
83420-16040 |
from US $30.58 |
||
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[05.1996 -] SV4# |
83420-20040 |
from US $37.77 |
||
|
83420
|
83420
83420-AA010 Gage Assy, Water Temperature Sender[10.1996 -] SV4# AMERICAN YAZAKI |
83420-AA010 |
US $50.09 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[02.1998 -] SV4# ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.1998 -] SV4# ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[02.1998 -] SV4# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[06.1994 - 05.1996] SV4# ＮＩＰＰＯＮＤＥＮＳＯ |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [06.1994 - 05.1996] SV4# ＮＩＰＰＯＮＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [02.1998 -] SV4# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-20200 Switch Assy, Neutral Start[06.1994 -] CV43,SV43..ATM |
84540-20200 |
US $336.34 |
||
|
85420F
|
85420F
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[06.1994 -] CV43,SV43..ATM |
90301-11008 |
from US $0.92 |
||
|
89413A
|
89413A
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[06.1994 -] SV43..ATM |
89413-32010 |
— | ||
| replacement | |||||
|
89413A
|
89413A
89413-32011 SENSOR, TRANSMISSION REVOLUTION[06.1994 -] SV43..ATM |
89413-32011 |
US $68.70 |
||
|
89425
|
89425
89425-20220
Sensor, Exhaust Gas Temperature
[06.1994 - 10.1997] SV40,43 |
89425-20220 |
— | ||
|
89427
|
89427
89428-33010 Switch, Temperature Detect[06.1994 - 06.1998] SV4# |
89428-33010 |
from US $88.80 |
||
|
89465
|
89465
89465-20270
Sensor, Oxygen
[06.1994 -] SV40,43 |
89465-20270 |
— | ||
|
89615
|
89615
89615-20030 Sensor, Knock Control[06.1994 -] SV4# ＴＯＹＯＴＡ |
89615-20030 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[06.1994 -] SV4# ＴＯＹＯＴＡ |
89615-32030 |
from US $179.97 |
||
|
89615
|
89615
89615-33020 Sensor, Knock Control[06.1994 -] SV4# ＮＩＰＰＯＮＤＥＮＳＯ |
89615-33020 |
US $225.68 |
||
| replacement | |||||
|
89615
|
89615
89615-32030 Sensor, Knock Control[06.1994 -] SV4# ＮＩＰＰＯＮＤＥＮＳＯ |
89615-32030 |
from US $179.97 |
||
|
89620
|
89620
89621-26010 Igniter Assy[06.1994 - 05.1996] SV4# |
89621-26010 |
from US $457.80 |
||
|
827111E070
|
827111E070
82711-1E070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E070 |
US $3.49 |
||
|
8271520300
|
8271520300
82715-20300 Bracket,wiring Harness Clamp |
82715-20300 |
US $5.10 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9046110702
|
9046110702
90461-10702 New Genuine Part |
90461-10702 |
US $7.72 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.88 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
