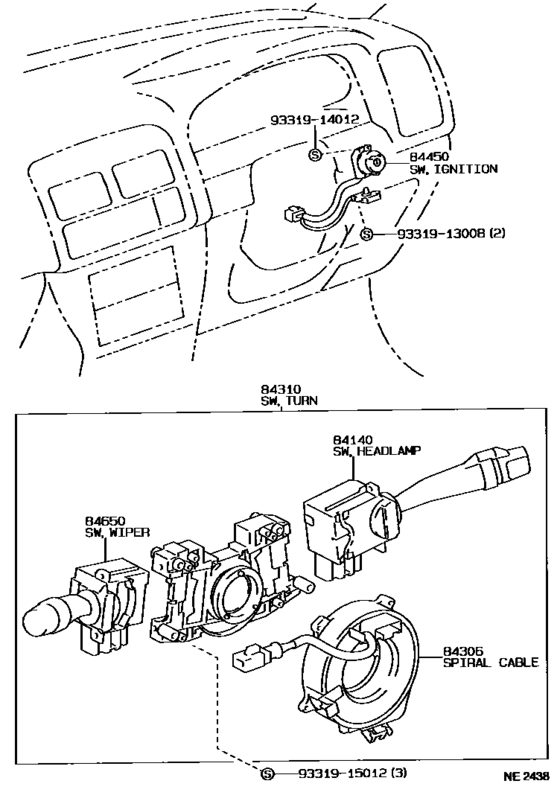

Switch & Relay & Computer ([05.1996 - ] ｲｸﾞﾆﾂｼﾖﾝ & ﾀ-ﾝｼｸﾞﾅﾙ ｽｲﾂﾁ (9605- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-20510
Switch Assy, Headlamp Dimmer
[06.1994 - 08.1995] CV4#,SV40,41,43 |
84140-20510 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-20630
Switch Assy, Headlamp Dimmer
[06.1994 - 08.1995] CV4#,SV40,41,43 |
84140-20630 |
— | ||
|
84140
|
84140
84140-20540 Switch Assy, Headlamp Dimmer[05.1996 -] CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ |
84140-20540 |
US $172.80 |
||
|
84140
|
84140
84140-20630
Switch Assy, Headlamp Dimmer
[08.1995 - 05.1996] CV4#,SV40,41,43 |
84140-20630 |
— | ||
|
84140
|
84140
84140-32180 Switch Assy, Headlamp Dimmer[06.1994 - 05.1996] SV42; CV4#,SV40,41,43 ｱﾘ(*RW) |
84140-32180 |
US $101.92 |
||
|
84140
|
84140
84140-32190 Switch Assy, Headlamp Dimmer[06.1994 - 05.1996] SV41,42,43..ALPX,VX,ZX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) OR ｱﾘ(ｺﾝﾗｲﾄ) |
84140-32190 |
US $122.30 |
||
|
84140
|
84140
84140-32210 Switch Assy, Headlamp Dimmer[05.1996 -] CV4#,SV4#..VX,ZX; SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) OR ｱﾘ(ｺﾝﾗｲﾄ) |
84140-32210 |
US $128.13 |
||
|
84306
|
84306
84306-20060 Cable Sub-Assy, Spiral[05.1996 - 06.1996] CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ |
84306-20060 |
US $279.55 |
||
|
84306
|
84306
84306-20080 Cable Sub-Assy, Spiral[06.1996 -] CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ |
84306-20080 |
US $281.01 |
||
|
84306
|
84306
84306-35010 Cable Sub-Assy, Spiral[05.1996 - 03.1997] CV4#,SV4#..VX,ZX; SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) |
84306-35010 |
US $281.01 |
||
| replacement | |||||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[05.1996 - 03.1997] CV4#,SV4#..VX,ZX; SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) |
84306-35011 |
US $291.78 |
||
|
84306
|
84306
84306-35011 Cable Sub-Assy, Spiral[03.1997 -] CV4#,SV4#..VX,ZX; SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) |
84306-35011 |
US $291.78 |
||
|
84310
|
84310
84310-2L120 Switch Assy, Turn Signal[06.1994 - 05.1996] CV4#,SV40,41,43 |
84310-2L120 |
US $279.55 |
||
|
84310
|
84310
84310-2L250 Switch Assy, Turn Signal[05.1996 -] CV4#,SV4#..ALPX,ETO,LUM,VJ,XJ |
84310-2L250 |
US $393.12 |
||
|
84310
|
84310
84310-2L260 Switch Assy, Turn Signal[05.1996 -] SV42..TOU; CV4#,SV4#..ALPX,ETO,LUM,VJ,XJ ｱﾘ(*RW) |
84310-2L260 |
US $404.77 |
||
|
84310
|
84310
84310-3H560 Switch Assy, Turn Signal[06.1994 - 05.1996] CV4#,SV40,41,43 ｱﾘ(*RW) |
84310-3H560 |
US $301.39 |
||
| replacements | |||||
|
84310
|
84310
84140-32180 Switch Assy, Headlamp Dimmer[06.1994 - 05.1996] CV4#,SV40,41,43 ｱﾘ(*RW) |
84140-32180 |
US $101.92 |
||
|
84310
|
84310
84319-32010 Housing, Steering Wheel Switch[06.1994 - 05.1996] CV4#,SV40,41,43 ｱﾘ(*RW) |
84319-32010 |
US $42.95 |
||
|
84310
|
84310
84652-3H260 Switch Assy, Windshield Wiper[06.1994 - 05.1996] CV4#,SV40,41,43 ｱﾘ(*RW) |
84652-3H260 |
US $144.14 |
||
|
84310
|
84310
84310-3H590 Switch Assy, Turn Signal[06.1994 - 05.1996] SV41,43..ALPX,VX,ZX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) |
84310-3H590 |
US $298.48 |
||
|
84310
|
84310
84310-3H600 Switch Assy, Turn Signal[06.1994 - 05.1996] SV41,43..ALPX,VX,ZX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ & *RW) |
84310-3H600 |
US $315.95 |
||
|
84310
|
84310
84310-3H630 Switch Assy, Turn Signal[05.1996 -] CV4#,SV4#..VX,ZX; SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) |
84310-3H630 |
US $410.59 |
||
|
84310
|
84310
84310-3H640 Switch Assy, Turn Signal[05.1996 -] CV4#,SV4#..VX,ZX ｱﾘ(*RW); SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ & *RW) |
84310-3H640 |
US $430.98 |
||
|
84450
|
84450
84450-32080 Switch Assy, Ignition Or Starter[06.1994 -] CV4#,SV4# |
84450-32080 |
US $75.71 |
||
|
84650
|
84650
84652-26500 Switch Assy, Windshield Wiper[05.1996 -] CV4#,SV4#..VX,ZX ｱﾘ(*RW); SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ & *RW) |
84652-26500 |
US $126.67 |
||
|
84650
|
84650
84652-2D850 Switch Assy, Windshield Wiper[05.1996 -] CV4#,SV4#..ALPX,ETO,LUM,VJ,XJ |
84652-2D850 |
US $128.13 |
||
|
84650
|
84650
84652-2D860 Switch Assy, Windshield Wiper[05.1996 -] SV42..TOU; CV4#,SV4#..ALPX,ETO,LUM,VJ,XJ ｱﾘ(*RW) |
84652-2D860 |
US $131.74 |
||
|
84650
|
84650
84652-2G270 Switch Assy, Windshield Wiper[06.1994 - 08.1995] CV4#,SV40,41,43 |
84652-2G270 |
US $132.50 |
||
| replacement | |||||
|
84650
|
84650
84652-2G390
Switch Assy, Windshield Wiper
[06.1994 - 08.1995] CV4#,SV40,41,43 |
84652-2G390 |
— | ||
|
84650
|
84650
84652-2G390
Switch Assy, Windshield Wiper
[08.1995 - 05.1996] CV4#,SV40,41,43 |
84652-2G390 |
— | ||
|
84650
|
84650
84652-3H260 Switch Assy, Windshield Wiper[06.1994 - 05.1996] SV42..TOU; CV4#,SV4#..ALPX,ETO,LUM,VJ,VX,XJ,ZX ｱﾘ(*RW) |
84652-3H260 |
US $144.14 |
||
|
84650
|
84650
84652-3H270 Switch Assy, Windshield Wiper[06.1994 - 05.1996] SV42..ALPX,VX,ZX; SV41,43..ALPX,VX,ZX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) OR ｱﾘ(ｺﾝﾗｲﾄ) |
84652-3H270 |
US $132.50 |
||
|
84650
|
84650
84652-60790 Switch Assy, Windshield Wiper[05.1996 -] CV4#,SV4#..VX,ZX; SV41,42,43..ALPX ｱﾘ(ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ) |
84652-60790 |
US $136.86 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
