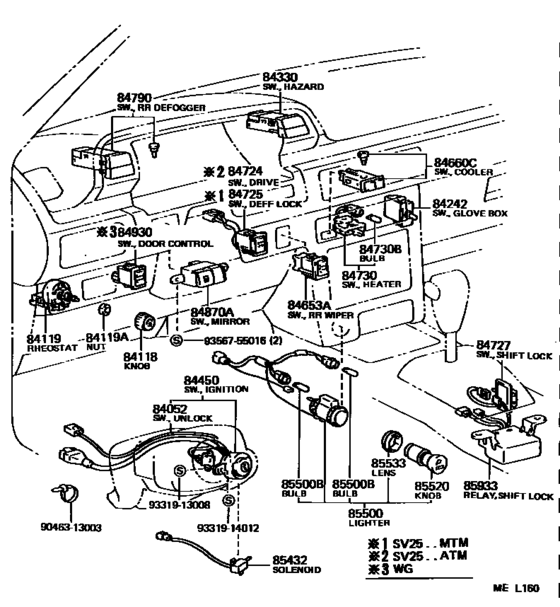

Switch & Relay & Computer ([08.1988 - ] (8808- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Frame
- VZV21
- grade
- LE
- body
- SED
- ENGINE
- 2VZFE
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- CND
- Model
- CAMRY (JPP/NAP/SED/WG)
- From
- 08.1988
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Camry
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-32010
Switch Assy, Un-Lock Warning
[08.1988 - 06.1991] SV2#,VZV21 |
84052-32010 |
— | ||
| replacement | |||||
|
84052
|
84052
84052-22030
Switch Assy, Un-Lock Warning
[08.1988 - 06.1991] SV2#,VZV21 |
84052-22030 |
— | ||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[08.1988 - 06.1991] SV2#,VZV21 |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-32090
Rheostat, Light Control
[08.1988 - 06.1991] SV2#,VZV21 |
84119-32090 |
— | ||
| replacement | |||||
|
84119
|
84119
84119-03010 Rheostat, Light ControlLIGHT CONTROL [08.1988 - 06.1991] SV2#,VZV21 |
84119-03010 |
US $384.05 |
||
|
84119
|
84119
84119-32100 Rheostat, Light ControlLIGHT CONTROL [08.1988 - 05.1990] VZV21..CND W(DIGITAL SPEEDOMETER); VZV21..LE..USA W(DIGITAL SPEEDOMETER) |
84119-32100 |
US $135.41 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[08.1988 - 06.1991] SV2#,VZV21 |
90170-09167 |
— | ||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[08.1988 - 06.1991] SV2#,VZV21..DX,LE |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-32160 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.1988 - 08.1989] SV2#,VZV21 W(CRUISE CONTROL) |
84332-32160 |
US $57.51 |
||
| replacement | |||||
|
84330
|
84330
84332-32170 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.1988 - 08.1989] SV2#,VZV21 W(CRUISE CONTROL) |
84332-32170 |
US $99.01 |
||
|
84330
|
84330
84332-32180
Switch Assy, Hazard Warning Signal
[08.1988 - 06.1991] SV2#,VZV21 |
84332-32180 |
— | ||
| replacement | |||||
|
84330
|
84330
84332-32190 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.1988 - 06.1991] SV2#,VZV21 |
84332-32190 |
US $46.30 |
||
|
84330
|
84330
84332-32210 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.1989 - 08.1990] SV2#,VZV21..CND W(CRUISE CONTROL) |
84332-32210 |
US $77.17 |
||
| replacement | |||||
|
84330
|
84330
84332-32170 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.1989 - 08.1990] SV2#,VZV21..CND W(CRUISE CONTROL) |
84332-32170 |
US $99.01 |
||
|
84450
|
84450
84450-32031 Switch Assy, Ignition Or StarterIGNITION OR STARTER [08.1988 - 06.1991] SV2#,VZV21 |
84450-32031 |
US $88.82 |
||
| replacements | |||||
|
84450
|
84450
84052-22030
Switch Assy, Un-Lock Warning
[08.1988 - 06.1991] SV2#,VZV21 |
84052-22030 |
— | ||
|
84450
|
84450
84450-17020 Switch Assy, Ignition Or StarterIGNITION OR STARTER [08.1988 - 06.1991] SV2#,VZV21 |
84450-17020 |
US $66.42 |
||
|
84790
|
84790
84790-32150
Switch Assy, Rear Window Defogger
[08.1988 - 06.1991] SV2#,VZV21 |
84790-32150 |
— | ||
|
84870A
|
84870A
84870-32070-01 Switch Assy, Outer MirrorOUTER MIRROR [08.1988 - 06.1991] SV2#,VZV21..LE BLACK |
84870-32070-01 |
US $85.90 |
||
| replacement | |||||
|
84870A
|
84870A
84870-32070-B0 Switch Assy, Outer MirrorOUTER MIRROR [08.1988 - 06.1991] SV2#,VZV21..LE BLACK |
84870-32070-B0 |
US $85.90 |
||
|
84870A
|
84870A
84870-32070-B0 Switch Assy, Outer MirrorOUTER MIRROR [08.1988 - 06.1991] SV2#,VZV21..LE MEDIUM GRAY,TRIM1# |
84870-32070-B0 |
US $85.90 |
||
|
84870A
|
84870A
84870-32070-E0
Switch Assy, Outer Mirror
[08.1988 - 06.1991] SV2#,VZV21..LE BROWN,TRIM4# |
84870-32070-E0 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-32070-B0 Switch Assy, Outer MirrorOUTER MIRROR [08.1988 - 06.1991] SV2#,VZV21..LE BROWN,TRIM4# |
84870-32070-B0 |
US $85.90 |
||
|
84870A
|
84870A
84870-32070-J0
Switch Assy, Outer Mirror
[08.1988 - 06.1991] SV2#,VZV21..LE DARK BLUE,TRIM8# |
84870-32070-J0 |
— | ||
| replacement | |||||
|
84870A
|
84870A
84870-32070-B0 Switch Assy, Outer MirrorOUTER MIRROR [08.1988 - 06.1991] SV2#,VZV21..LE DARK BLUE,TRIM8# |
84870-32070-B0 |
US $85.90 |
||
|
84930
|
84930
84930-32040
Switch Assy, Door Control
[08.1988 - 06.1991] SV2#,VZV21..SED..(DX,LE); SV21,VZV21..WG W(POWER WINDOW) |
84930-32040 |
— | ||
|
85500
|
85500
85500-32061 Lighter Assy, CigaretteCIGARETTE [08.1988 - 06.1991] SV2#,VZV21 |
85500-32061 |
US $85.90 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.1988 - 06.1991] SV2#,VZV21 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
85520
|
85520
85520-20080 Knob And Element Assy, Cigarette Lighter[08.1988 - 06.1991] SV2#,VZV21 |
85520-20080 |
US $31.45 |
||
|
85533
|
85533
85533-32010 Lens, Cigarette Lighter Indicator[08.1988 - 06.1991] SV2#,VZV21 |
85533-32010 |
US $10.48 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
