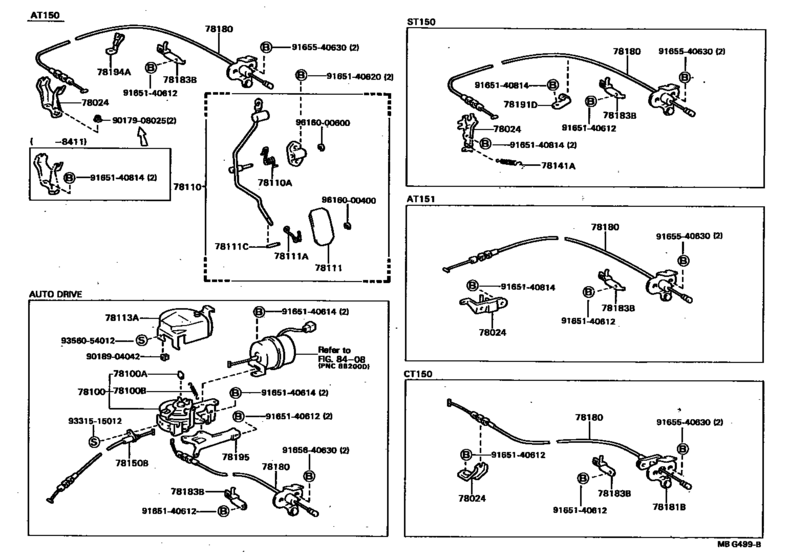

Accelerator Link ([05.1984 - 08.1985] (8405-8508)) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78184-12160
Bracket Sub-Assy, Accelerator Control Cable
[05.1984 - 09.1985] AT150 |
78184-12160 |
— | ||
|
78024
|
78024
78184-12210 Bracket Sub-Assy, Accelerator Control Cable[09.1985 - 04.1988] AT150 |
78184-12210 |
US $21.55 |
||
|
78110
|
78110
78120-20180 Rod Assy, Accelerator Pedal[05.1984 - 04.1988] AT15#,160,CT150..MTM |
78120-20180 |
US $49.50 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[05.1984 - 04.1988] AT15#,160,CT150..MTM |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90249-05001 |
US $3.32 |
||
|
78180
|
78180
78180-20240 Wire Assy, Accelerator[05.1984 - 04.1988] AT150 |
78180-20240 |
US $59.84 |
||
|
78183B
|
78183B
78183-12060
Clamp, Accelerator Control Cable
[05.1984 - 04.1988] AT15#,CT150,ST150 |
78183-12060 |
— | ||
|
78194A
|
78194A
78194-12020 Support, Accelerator Control Cable, No.4[05.1984 - 04.1988] AT150 |
78194-12020 |
US $8.15 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9018904042
|
9018904042
90189-04042 CLIP |
90189-04042 |
US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165540630
|
9165540630
91655-40630 New Genuine Part |
91655-40630 |
US $1.89 |
||
| replacement | |||||
|
9165540630
|
9165540630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.66 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
