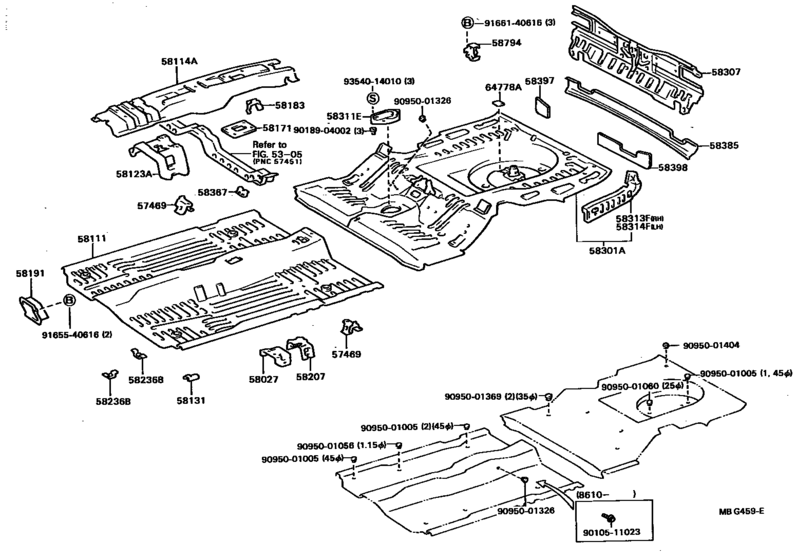

Floor Pan & Lower Back Panel ([05.1984 - ] (8405- )AT15#,CT150,ST150) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57469
|
57469
57468-20030 Bracket, Front Seat, Outside, Rear Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 RH |
57468-20030 |
US $4.66 |
||
|
57469
|
57469
57469-20030 Bracket, Front Seat, Outside[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 LH |
57469-20030 |
US $4.66 |
||
|
58027
|
58027
58027-20020
Reinforcement, Belt Anchor To Floor Pan, No.1
[05.1984 - 08.1985] AT15#,CT150,ST150 |
58027-20020 |
— | ||
|
58027
|
58027
58027-20021 Reinforcement, Belt Anchor To Floor Pan, No.1[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
58027-20021 |
US $30.43 |
||
|
58111
|
58111
58111-20060
Pan, Front Floor
[05.1984 - 08.1985] AT15#,CT150,ST150 |
58111-20060 |
— | ||
| replacements | |||||
|
58111
|
58111
58027-20021 Reinforcement, Belt Anchor To Floor Pan, No.1[05.1984 - 08.1985] AT15#,CT150,ST150 |
58027-20021 |
US $30.43 |
||
|
58111
|
58111
58111-20061
Pan, Front Floor
[05.1984 - 08.1985] AT15#,CT150,ST150 |
58111-20061 |
— | ||
|
58111
|
58111
58114-20011 Reinforcement, Front Floor Panel[05.1984 - 08.1985] AT15#,CT150,ST150 |
58114-20011 |
US $107.74 |
||
|
58111
|
58111
58207-20080 Bracket Sub-Assy, Parking Brake Cable, No.1[05.1984 - 08.1985] AT15#,CT150,ST150 |
58207-20080 |
US $25.63 |
||
|
58111
|
58111
58111-20061
Pan, Front Floor
[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
58111-20061 |
— | ||
|
58114A
|
58114A
58114-20010 Reinforcement, Front Floor Panel[05.1984 - 08.1985] AT15#,CT150,ST150 |
58114-20010 |
US $106.29 |
||
| replacement | |||||
|
58114A
|
58114A
58114-20011 Reinforcement, Front Floor Panel[05.1984 - 08.1985] AT15#,CT150,ST150 |
58114-20011 |
US $107.74 |
||
|
58114A
|
58114A
58114-20011 Reinforcement, Front Floor Panel[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
58114-20011 |
US $107.74 |
||
|
58123A
|
58123A
58123-20010 Support, Shift & Select Lever[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58123-20010 |
US $48.63 |
||
|
58131
|
58131
58131-20040 Bracket, Front Floor Heat Insulator, No.1[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58131-20040 |
US $4.08 |
||
|
58171
|
58171
58107-20040 Reinforcement, Parking Brake Base[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58107-20040 |
US $23.59 |
||
|
58183
|
58183
58183-20040 Bracket, Front Seat Mounting, Inner[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 RH |
58183-20040 |
US $13.10 |
||
|
58183
|
58183
58184-20040 Bracket, Front Seat Mounting, Inner[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 LH |
58184-20040 |
US $13.10 |
||
|
58191
|
58191
58191-20010 Footrest, Front Floor[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58191-20010 |
US $17.33 |
||
|
58207
|
58207
58207-20060
Bracket Sub-Assy, Parking Brake Cable, No.1
[05.1984 - 08.1985] AT15#,CT150,ST150 |
58207-20060 |
— | ||
|
58207
|
58207
58207-20080 Bracket Sub-Assy, Parking Brake Cable, No.1[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
58207-20080 |
US $25.63 |
||
|
58236B
|
58236B
58236-14010 Bracket, Mounting, Floor, No.1[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58236-14010 |
US $9.17 |
||
|
58301A
|
58301A
58301-20904 Panel Sub-Assy, Rear Floor[05.1984 - 04.1988] AT15#,CT150,ST150 |
58301-20904 |
US $946.40 |
||
|
58307
|
58307
58307-20430 Panel Sub-Assy, Body Lower Back[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 |
58307-20430 |
US $315.95 |
||
|
58307
|
58307
58307-20540 Panel Sub-Assy, Body Lower Back[05.1986 - 04.1988] AT15#,160,CT150,ST150,162 |
58307-20540 |
US $317.41 |
||
|
58311E
|
58311E
58325-32010 Cover, Rear Floor Service Hole[05.1984 - 04.1988] AT15#,CT150,ST150 |
58325-32010 |
US $29.12 |
||
|
58313F
|
58313F
58313-20110 Extension, Rear Floor Pan To Quarter Panel, Rh[05.1984 - 04.1988] AT15#,CT150,ST150 |
58313-20110 |
US $58.68 |
||
|
58314F
|
58314F
58314-20090 Extension, Rear Floor Pan To Quarter Panel, Lh[05.1984 - 04.1988] AT15#,CT150,ST150 |
58314-20090 |
US $58.68 |
||
|
58367
|
58367
58367-20030
Bracket, Fuel Tube Clamp
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58367-20030 |
— | ||
|
58385
|
58385
58308-20060 Panel, Rear Valance[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58308-20060 |
US $82.99 |
||
|
58397
|
58397
58397-20020 Cover, Lower Back, Outer Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58397-20020 |
US $15.87 |
||
|
58398
|
58398
58398-20010 Cover, Lower Back, Outer Lh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
58398-20010 |
US $48.63 |
||
|
58794
|
58794
58791-20010
Carrier, Jack
[05.1984 - 08.1985] AT15#,CT150,ST150 |
58791-20010 |
— | ||
|
58794
|
58794
58791-20030 Carrier, Jack[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
58791-20030 |
US $10.19 |
||
|
64778A
|
64778A
64778-20020
Protector, Spare Wheel
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
64778-20020 |
— | ||
|
9010511023
|
9010511023
90105-11023 New Genuine Part |
90105-11023 |
US $2.48 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001326
|
9095001326
90950-01326 New Genuine Part |
90950-01326 |
US $3.84 |
||
|
9095001369
|
9095001369
90950-01369 New Genuine Part |
90950-01369 |
US $7.13 |
||
| replacement | |||||
|
9095001369
|
9095001369
90950-01979 New Genuine Part |
90950-01979 |
US $6.64 |
||
|
9095001404
|
9095001404
90950-01404 CLIP |
90950-01404 |
US $1.46 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.96 |
||
