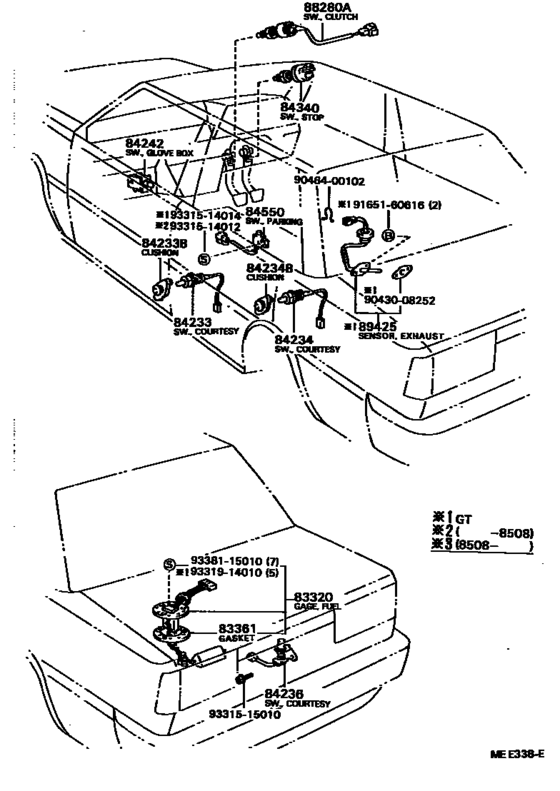

Switch & Relay & Computer ([05.1984 - ] (8405- )) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-29797 Gage Assy, Fuel Sender[09.1987 - 04.1988] AT150..DX ﾏｲﾗｲﾌ |
83320-29797 |
US $123.76 |
||
|
83320
|
83320
83320-29895 Gage Assy, Fuel Sender[05.1984 - 06.1984] ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
83320-29895 |
US $49.94 |
||
| replacements | |||||
|
83320
|
83320
83320-29898 Gage Assy, Fuel Sender[05.1984 - 06.1984] ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
83320-29898 |
US $74.26 |
||
|
83320
|
83320
83320-29897 Gage Assy, Fuel Sender[05.1984 - 06.1984] ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
83320-29897 |
US $74.26 |
||
|
83320
|
83320
83320-29896
Gage Assy, Fuel Sender
[06.1984 - 10.1984] ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
83320-29896 |
— | ||
| replacements | |||||
|
83320
|
83320
83320-29897 Gage Assy, Fuel Sender[06.1984 - 10.1984] ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
83320-29897 |
US $74.26 |
||
|
83320
|
83320
83320-29898 Gage Assy, Fuel Sender[06.1984 - 10.1984] ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
83320-29898 |
US $74.26 |
||
|
83320
|
83320
83320-29897 Gage Assy, Fuel Sender[10.1984 - 05.1986] ST150;AT15#,CT150..DX,SG W/O FUEL WARNING |
83320-29897 |
US $74.26 |
||
|
83361
|
83361
83361-32010
Gasket, Fuel Sender Gage
[05.1984 - 04.1988] AT15#,CT150,ST150 |
83361-32010 |
— | ||
|
84233
|
84233
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
84230-12120 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
84231-22060 |
US $11.84 |
||
|
84233B
|
84233B
84234-24010 Cushion, Courtesy Switch (For Front Door)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
84234-24010 |
US $11.68 |
||
|
84234
|
84234
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
84230-12120 |
— | ||
| replacement | |||||
|
84234
|
84234
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
84231-22060 |
US $11.84 |
||
|
84234B
|
84234B
84234-24010 Cushion, Courtesy Switch (For Front Door)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
84234-24010 |
US $11.68 |
||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[05.1986 - 04.1988] AT15#,160,CT150,ST150,162 MATSUSHITA |
84340-30030 |
from US $28.14 |
||
|
84340
|
84340
84340-32010
Switch Assy, Stop Lamp
[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 |
84340-32010 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 |
84340-30030 |
from US $28.14 |
||
|
84550
|
84550
84550-16010
Switch Assy, Brake Warning Test
[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
84550-16010 |
— | ||
|
84550
|
84550
84550-24010
Switch Assy, Brake Warning Test
[05.1984 - 08.1985] AT15#,CT150,ST150 |
84550-24010 |
— | ||
|
88280A
|
88280A
88280-35010
Switch Assy, Cruise Control(Auto Drive) Release
[05.1984 - 04.1988] AT150..MTM |
88280-35010 |
— | ||
|
89425
|
89425
89425-12190 Sensor, Exhaust Gas Temperature[08.1985 - 05.1987] AT15#,ST150 |
89425-12190 |
US $282.46 |
||
| replacement | |||||
|
89425
|
89425
89425-12250
Sensor, Exhaust Gas Temperature
[08.1985 - 05.1987] AT15#,ST150 |
89425-12250 |
— | ||
|
89425
|
89425
89425-12250
Sensor, Exhaust Gas Temperature
[05.1987 - 04.1988] AT15#,ST150 |
89425-12250 |
— | ||
|
89425
|
89425
89425-19285 Sensor, Exhaust Gas Temperature[05.1984 - 08.1985] AT15#,ST150 |
89425-19285 |
US $317.41 |
||
| replacement | |||||
|
89425
|
89425
89425-12140 Sensor, Exhaust Gas Temperature[05.1984 - 08.1985] AT15#,ST150 |
89425-12140 |
US $281.01 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.33 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.12 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
