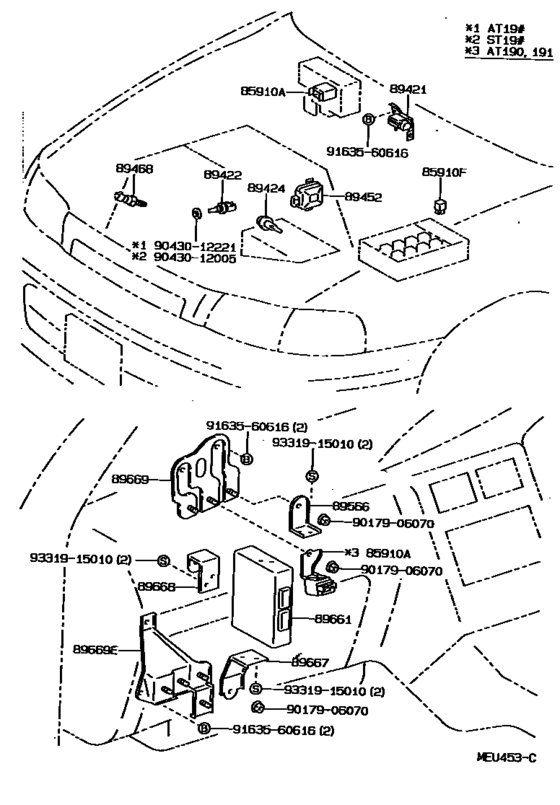

Electronic Fuel Injection System ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-20060
Relay Assy, Circuit Opening (For Efi)
[08.1994 - 08.1996] AT190,191 |
85910-20060 |
— | ||
|
85910F
|
85910F
90987-02009 Relay Assy[08.1992 - 08.1996] AT19#,ST19# |
90987-02009 |
from US $32.51 |
||
|
89421
|
89421
89420-20250 Sensor Assy, Vacuum[08.1992 - 08.1996] AT19# |
89420-20250 |
US $132.79 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1994 - 08.1996] AT190,191,ST195 |
89422-20010 |
from US $36.78 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.1992 - 08.1996] AT19#,ST19# |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[08.1992 - 08.1996] ST190..ATM;AT19#,ST195 |
89452-22090 |
from US $142.95 |
||
|
89468
|
89468
89468-20020
Sensor, Combustion Pressure
[08.1992 - 08.1996] AT190,191 |
89468-20020 |
— | ||
|
89566
|
89566
89566-20020 Bracket, Fuel Injection Computer[08.1992 - 08.1996] AT192..MTM;AT190,191,ST19# |
89566-20020 |
US $7.86 |
||
|
89661
|
89661
89661-2D230 Computer, Engine Control[08.1994 - 08.1996] AT190..ATM |
89661-2D230 |
US $1,514.24 |
||
|
89667
|
89667
89667-20360 Bracket, Engine Control Computer[08.1994 - 08.1996] AT190,191 |
89667-20360 |
US $6.70 |
||
|
89668
|
89668
89668-20320 Bracket, Engine Control Computer, No.2[08.1994 - 08.1996] AT190,191 |
89668-20320 |
US $5.82 |
||
|
89669
|
89669
89669-20150 Bracket, Preheating Timer, No.2[08.1994 - 08.1996] AT19#,ST195 |
89669-20150 |
US $19.95 |
||
|
89669E
|
89669E
89669-20170 Bracket, Preheating Timer, No.2[08.1992 - 08.1996] AT19#,ST19# |
89669-20170 |
US $19.95 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
