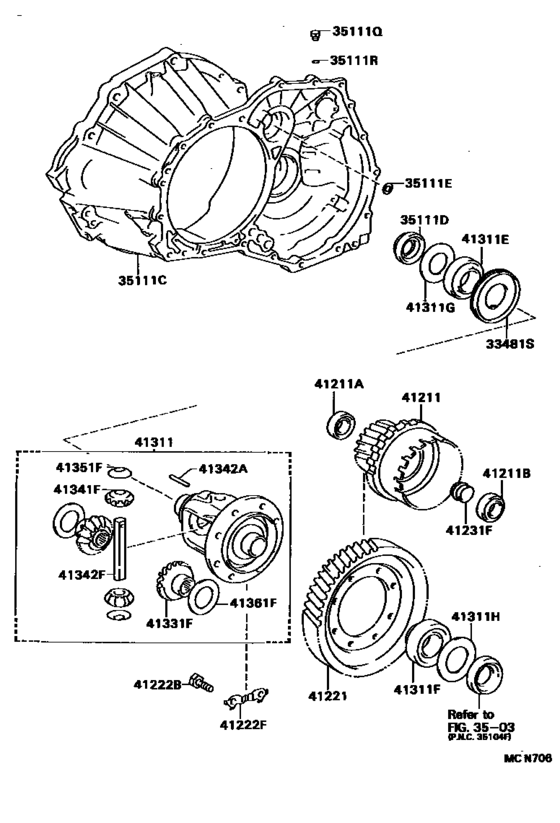

Front Axle Housing & Differential ([08.1992 - ] A245E (9208- )AT19#..ATM) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481S
|
33481S
33481-12040 Gear, Speedometer Drive (Mtm)[08.1992 - 08.1996] AT19#..ATM 歯数＝３５，マーク ３５Ｘ２９−３１ |
33481-12040 |
from US $6.24 |
||
|
35111C
|
35111C
35105-12050 Housing, Transaxle[08.1992 - 08.1996] AT19#..ATM |
35105-12050 |
US $742.56 |
||
|
35111D
|
35111D
90311-34012 Oil Seal[08.1992 - 08.1996] AT19#..ATM |
90311-34012 |
US $5.60 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[08.1992 - 08.1996] AT19#,CT190,ST190..ATM |
90210-13002 |
US $4.08 |
||
|
35111Q
|
35111Q
90341-08001 Plug, Transaxle Case, No.1[08.1992 - 08.1996] AT19#,CT190,ST190..ATM |
90341-08001 |
from US $1.54 |
||
|
35111R
|
35111R
90301-06196 O Ring, Transaxle Case, No.1[08.1992 - 08.1996] AT19#,CT190,ST190..ATM |
90301-06196 |
from US $2.26 |
||
|
41211
|
41211
41206-20070 Pinion, Differential Drive[08.1994 - 08.1996] AT19#..ATM |
41206-20070 |
US $336.34 |
||
|
41211A
|
41211A
90366-30020 Bearing (For Rear Drive Pinion Rear)[08.1992 - 08.1996] AT19#..ATM |
90366-30020 |
US $40.91 |
||
|
41211B
|
41211B
90366-30019 Bearing (For Rear Drive Pinion Rear)[08.1992 - 08.1996] AT19#..ATM |
90366-30019 |
from US $39.17 |
||
|
41221
|
41221
41221-20230 Gear, Front Differential Ring[08.1994 - 08.1996] AT19#..ATM |
41221-20230 |
US $155.79 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[08.1994 - 01.1995] AT19#;CT190..ATM |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12050 Plate, Rear Differential Ring Gear Set Bolt Lock[08.1992 - 08.1996] AT19#..ATM |
41222-12050 |
US $3.49 |
||
|
41231F
|
41231F
41231-12030
Spacer, Rear Differential Drive Pinion Bearing
[08.1992 - 08.1996] AT19#..ATM |
41231-12030 |
— | ||
|
41311
|
41311
41301-20150
Case, Front Differential
[08.1993 - 08.1996] AT19#..ATM |
41301-20150 |
— | ||
|
41311E
|
41311E
90368-38010 Bearing(For Rear Differential Case)[08.1992 - 08.1996] AT19#..ATM |
90368-38010 |
from US $25.38 |
||
|
41311F
|
41311F
90366-42001 Bearing, Tapered Roller (For Front Differential Case Rear)[08.1993 - 08.1996] AT19#..ATM |
90366-42001 |
from US $21.67 |
||
|
41311G
|
41311G
90201-41024 Washer, Plate (For Front Differential Case Front)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．００，マーク Ｖ |
90201-41024 |
US $4.08 |
||
|
41311H
|
41311H
90201-41024 Washer, Plate (For Front Differential Case Front)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．００，マーク Ｖ |
90201-41024 |
US $4.08 |
||
|
41311H
|
41311H
90201-41025 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．３５，マーク Ａ |
90201-41025 |
from US $3.82 |
||
|
41311H
|
41311H
90201-41026 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．４０，マーク Ｂ |
90201-41026 |
US $6.84 |
||
|
41311H
|
41311H
90201-41027 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．４５，マーク Ｃ |
90201-41027 |
US $6.84 |
||
|
41311H
|
41311H
90201-41028 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．５０，マーク Ｄ |
90201-41028 |
US $8.15 |
||
|
41311H
|
41311H
90201-41029 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．５５，マーク Ｅ |
90201-41029 |
US $8.15 |
||
|
41311H
|
41311H
90201-41030 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．６０，マーク Ｆ |
90201-41030 |
US $8.15 |
||
|
41311H
|
41311H
90201-41031 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．６５，マーク Ｇ |
90201-41031 |
US $8.15 |
||
|
41311H
|
41311H
90201-41032 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．７０，マーク Ｈ |
90201-41032 |
US $5.24 |
||
|
41311H
|
41311H
90201-41033 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．７５，マーク Ｊ |
90201-41033 |
US $8.15 |
||
|
41311H
|
41311H
90201-41034 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．８０，マーク Ｋ |
90201-41034 |
US $8.15 |
||
|
41311H
|
41311H
90201-41035 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．８５，マーク Ｌ |
90201-41035 |
US $8.15 |
||
|
41311H
|
41311H
90201-41036 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．９０，マーク Ｍ |
90201-41036 |
US $8.15 |
||
|
41311H
|
41311H
90201-41039 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．１０，マーク Ｑ |
90201-41039 |
US $6.84 |
||
|
41311H
|
41311H
90201-41040 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．１５，マーク Ｒ |
90201-41040 |
US $6.84 |
||
|
41311H
|
41311H
90201-41041 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．２０，マーク Ｓ |
90201-41041 |
US $6.84 |
||
|
41311H
|
41311H
90201-41042 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．２５，マーク Ｔ |
90201-41042 |
US $6.84 |
||
|
41311H
|
41311H
90201-41043 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．３０，マーク Ｕ |
90201-41043 |
US $6.84 |
||
|
41311H
|
41311H
90201-41044 Washer, Plate (For Front Differential Case Rear)[08.1992 - 08.1996] AT19#..ATM 厚さ＝２．０５，マーク Ｗ |
90201-41044 |
US $4.08 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[08.1992 - 08.1996] AT19# |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[08.1992 - 08.1996] AT19# |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[08.1994 - 08.1996] AT19#,CT190 |
90250-06058 |
US $2.56 |
||
|
41342F
|
41342F
41342-20060 Shaft, Front Differential Pinion, No.1[08.1993 - 08.1996] AT19#..ATM |
41342-20060 |
US $16.07 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[08.1992 - 08.1996] AT19# |
41351-12020 |
from US $1.69 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[08.1994 - 08.1996] AT19#,CT190..ATM 厚さ＝０．９５ |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[08.1994 - 08.1996] AT19#,CT190..ATM 厚さ＝１．００ |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[08.1994 - 08.1996] AT19#,CT190..ATM 厚さ＝１．０５ |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[08.1994 - 08.1996] AT19#,CT190..ATM 厚さ＝１．１０ |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[08.1994 - 08.1996] AT19#,CT190..ATM 厚さ＝１．１５ |
41361-17050 |
US $3.32 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[08.1994 - 08.1996] AT19#,CT190..ATM 厚さ＝１．２０ |
41361-17060 |
US $2.62 |
