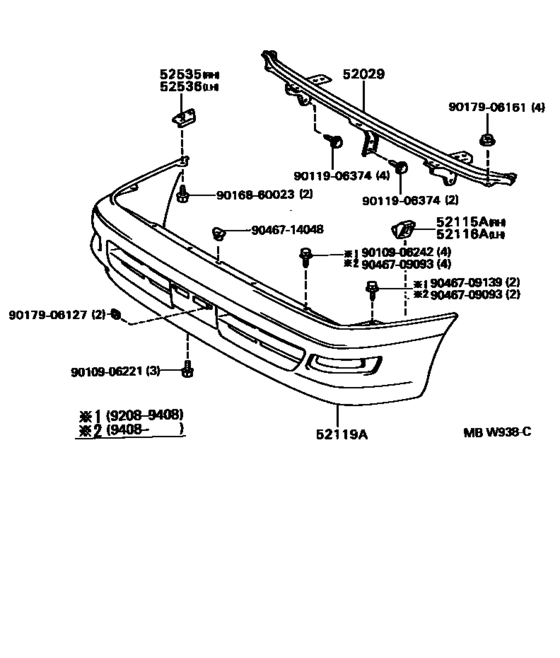

Front Bumper & Bumper Stay ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52029
|
52029
52029-20041
Reinforcement Sub-Assy, Front Bumper, Upper
[08.1994 - 08.1996] AT19#,CT19#,ST195 |
52029-20041 |
— | ||
|
52115A
|
52115A
52115-20310 Support, Front Bumper Side, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
52115-20310 |
US $6.12 |
||
|
52116A
|
52116A
52115-20310 Support, Front Bumper Side, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
52115-20310 |
US $6.12 |
||
|
52119A
|
52119A
52119-2B270-A0 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 SUPER WHITE 2,040 |
52119-2B270-A0 |
US $859.04 |
||
| replacement | |||||
|
52119A
|
52119A
52119-2B922 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 SUPER WHITE 2,040 |
52119-2B922 |
US $518.34 |
||
|
52119A
|
52119A
52119-2B270-B0 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 DK.BL.GRAY ME,183 |
52119-2B270-B0 |
US $859.04 |
||
| replacement | |||||
|
52119A
|
52119A
52119-2B922 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 DK.BL.GRAY ME,183 |
52119-2B922 |
US $518.34 |
||
|
52119A
|
52119A
52119-2B270-C0 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 BLACK ME,205 |
52119-2B270-C0 |
US $859.04 |
||
| replacement | |||||
|
52119A
|
52119A
52119-2B922 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 BLACK ME,205 |
52119-2B922 |
US $518.34 |
||
|
52119A
|
52119A
52119-2B270-D0 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 WINE RED MC,3J8 |
52119-2B270-D0 |
US $859.04 |
||
| replacement | |||||
|
52119A
|
52119A
52119-2B922 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 WINE RED MC,3J8 |
52119-2B922 |
US $518.34 |
||
|
52119A
|
52119A
52119-2B270-F0 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 PL.YELLOW OP,574 |
52119-2B270-F0 |
US $859.04 |
||
| replacement | |||||
|
52119A
|
52119A
52119-2B922 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 PL.YELLOW OP,574 |
52119-2B922 |
US $518.34 |
||
|
52119A
|
52119A
52119-2B270-G0 Cover, Front Bumper[04.1996 - 08.1996] AT19#,CT190..SG,SGI,SX,SXI DK GREEN MICA,6M1 |
52119-2B270-G0 |
US $859.04 |
||
| replacement | |||||
|
52119A
|
52119A
52119-2B922 Cover, Front Bumper[04.1996 - 08.1996] AT19#,CT190..SG,SGI,SX,SXI DK GREEN MICA,6M1 |
52119-2B922 |
US $518.34 |
||
|
52119A
|
52119A
52119-2B270-J0 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 DK.BLUE MM,8G5 |
52119-2B270-J0 |
US $859.04 |
||
| replacement | |||||
|
52119A
|
52119A
52119-2B922 Cover, Front Bumper[08.1994 - 08.1996] AT19#,CT19#,ST195 DK.BLUE MM,8G5 |
52119-2B922 |
US $518.34 |
||
|
52535
|
52535
52535-20060 Retainer, Front Bumper Side, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
52535-20060 |
US $6.70 |
||
|
52536
|
52536
52536-20060 Retainer, Front Bumper Side, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
52536-20060 |
US $6.70 |
||
|
9010906221
|
9010906221
90109-06221
BOLTFOLDING SEAT
|
90109-06221 |
— | ||
| replacement | |||||
|
9010906221
|
9010906221
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.68 |
||
|
9010906242
|
9010906242
90109-06242 BOLT |
90109-06242 |
US $1.76 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9016860023
|
9016860023
90168-60023 SCREW TAPPING |
90168-60023 |
US $1.92 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.80 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.80 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $2.57 |
||
|
9046709139
|
9046709139
90467-09139 CLIP |
90467-09139 |
from US $3.84 |
||
|
9046714048
|
9046714048
90467-14048 New Genuine Part |
90467-14048 |
US $5.59 |
||
